Fixed installation between modules：
Procedure：
1）Place the battery module on the base.
2）Install connectors on both sides and tighten the six screws with a
cross screwdriver.

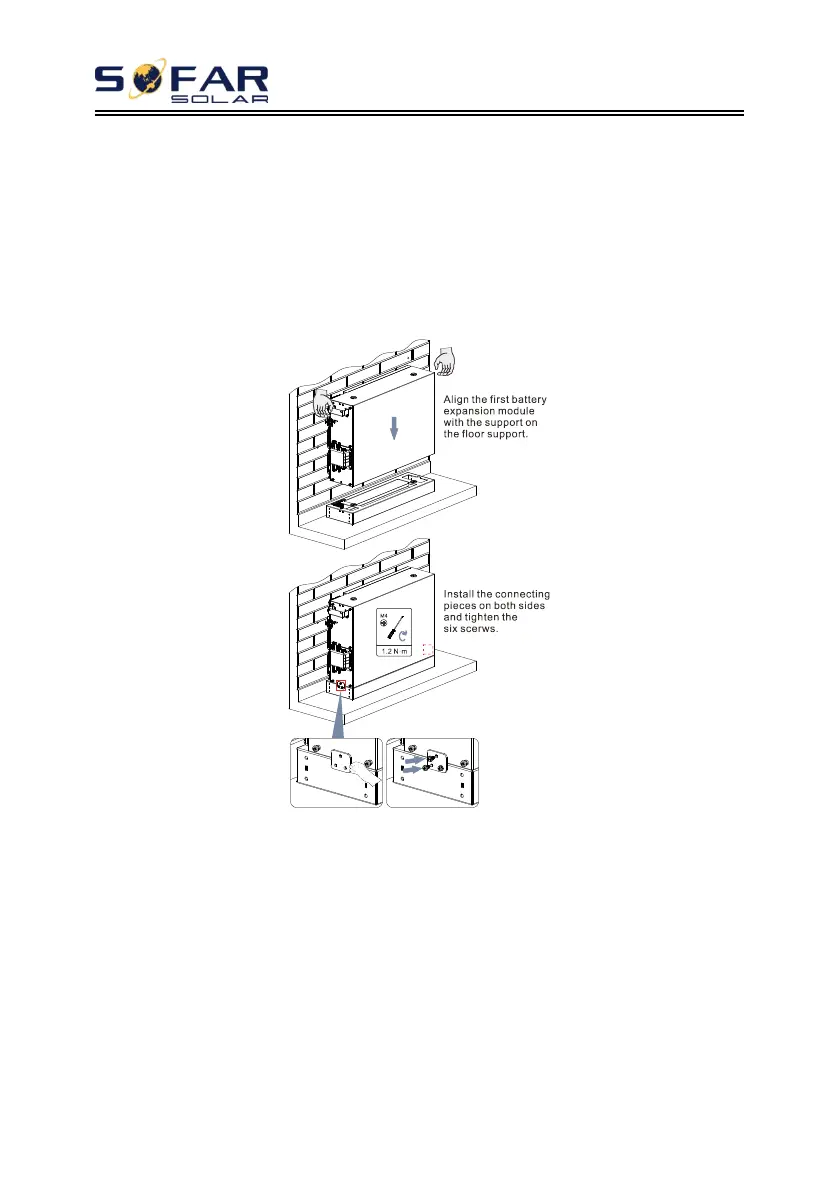

Figure. 3.5-3 Battery module installation diagram
Anti-tip bracket installation：
Procedure：
1）Drill holes with a hammer drill (φ 8mm, depth range 60-65 mm).
Reposition and drill the holes, if the original one has a large deviation.
2）Install the anti-tip bracket B on the wall, and fasten expansion bolt.
3）Adjust the anti-tip bracket A, make sure the holes are matched
To Next Page
