CAUTIONCAUTION danger of reverse polarity. Use the corresponding connector housing.
Ensure that the polarity is correct before plugging into the DC connections!

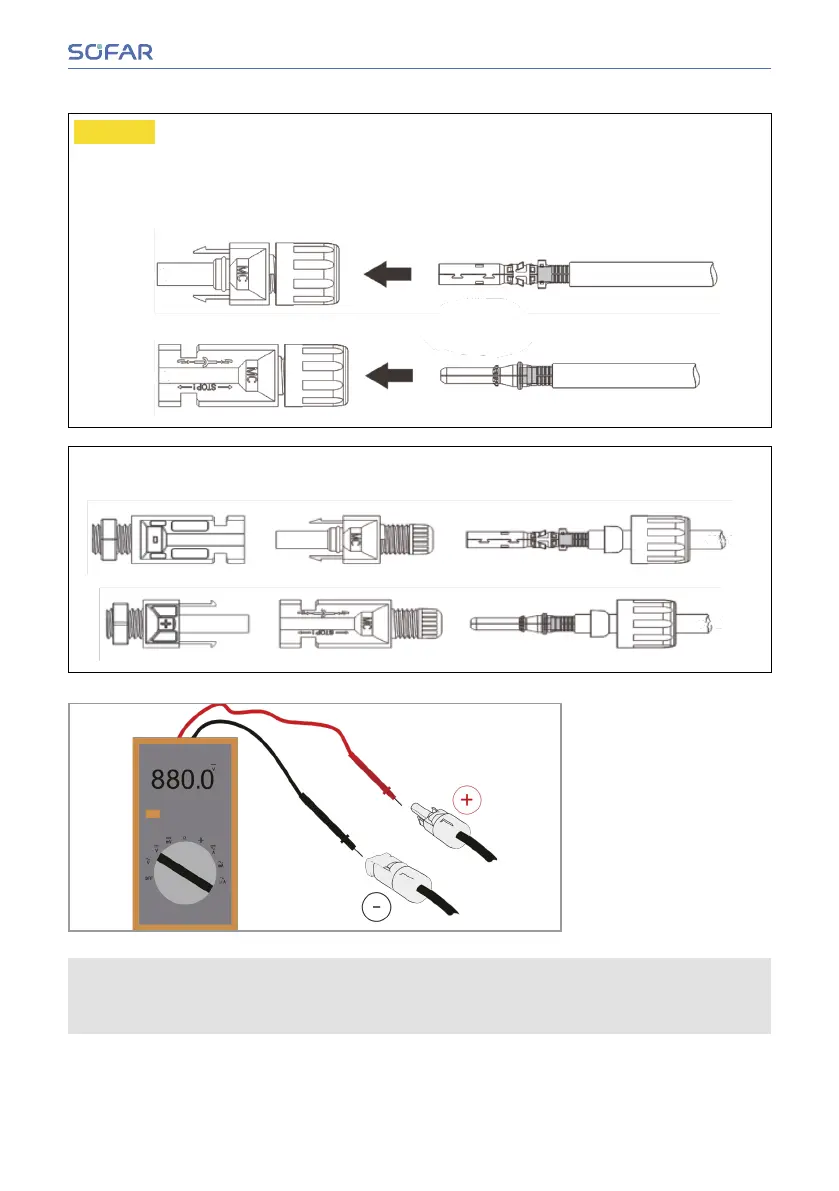

5. 5. Insert the crimped DC cables into the corresponding connector housing until you
hear a clickingclicking sound.
6. 6. Connect the DC connector to the inverter.
Use multimeter to make sure the PV array positive pole and negative pole!
If need to remove the PV connector from inverter side, use the Removal Tool as below
gure,movetheconnectorgently.
Installation and User Manual 37/78
Electrical Connections
