4.4 4.4 Installing the inverterInstalling the inverter
Installing the bracket on a wallInstalling the bracket on a wall

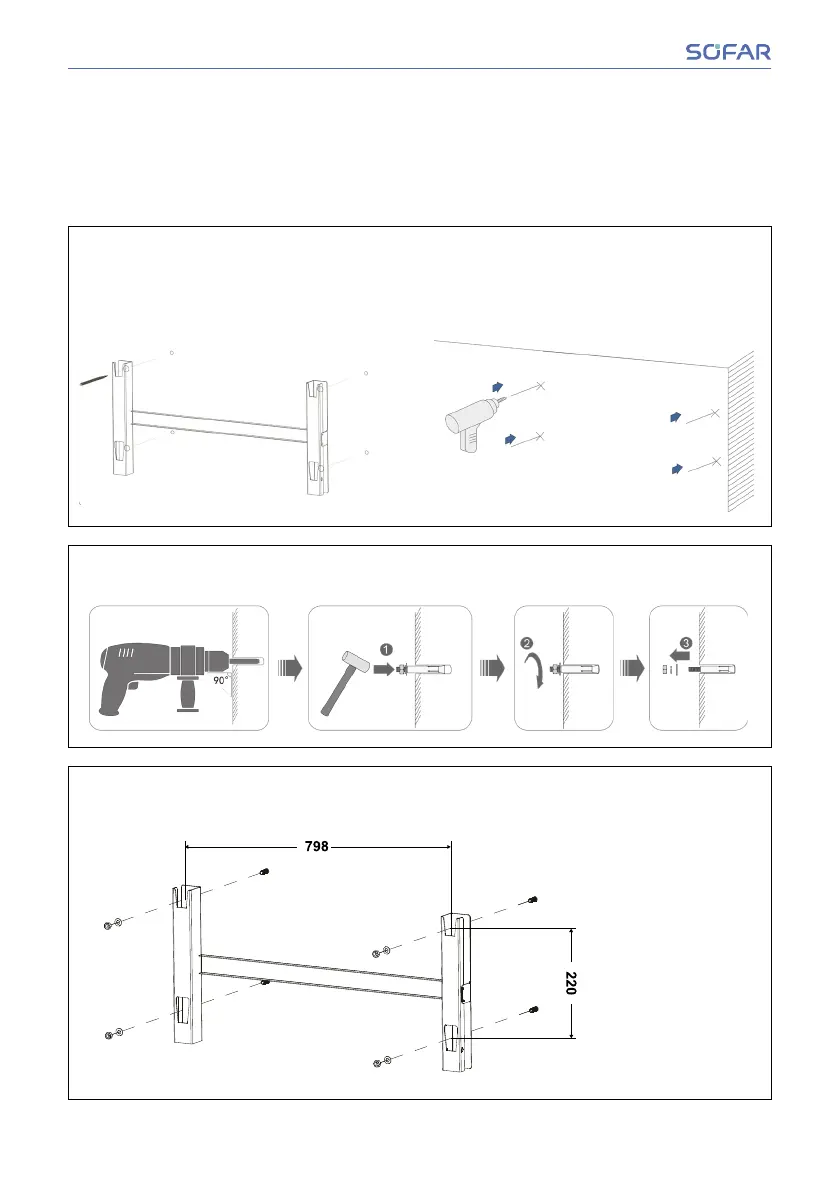

1. 1. Place the bracket on the mounting wall, determine the mounting height of the
bracket and mark the mounting poles accordingly. Drilling holes by using Hammer
Drill, keep the hammer drill perpendicular to the wall and make sure the position of
the holes should be suitable for the expansion bolts.
2. 2. Insert the expansion bolt vertically into the hole.
3. 3. Alignthebracketwiththeholepositions,󰘰xtherearpanelsonthewallbytighten-
ing the expansion bolt with the nuts.
24/78 SOFAR 100...125KTLX-G4
