ELECTRICAL CONNECTIONS
40 SOFAR 1100...3300TL-G3
NOTE
• The inverter SOFAR 1100...3300TL-G3 has a built-in AFI
(univ. sensitive residual current protection). If an external
AFI is required, we recommend an AFI type A featuring a
residual current of 100 mA or higher.

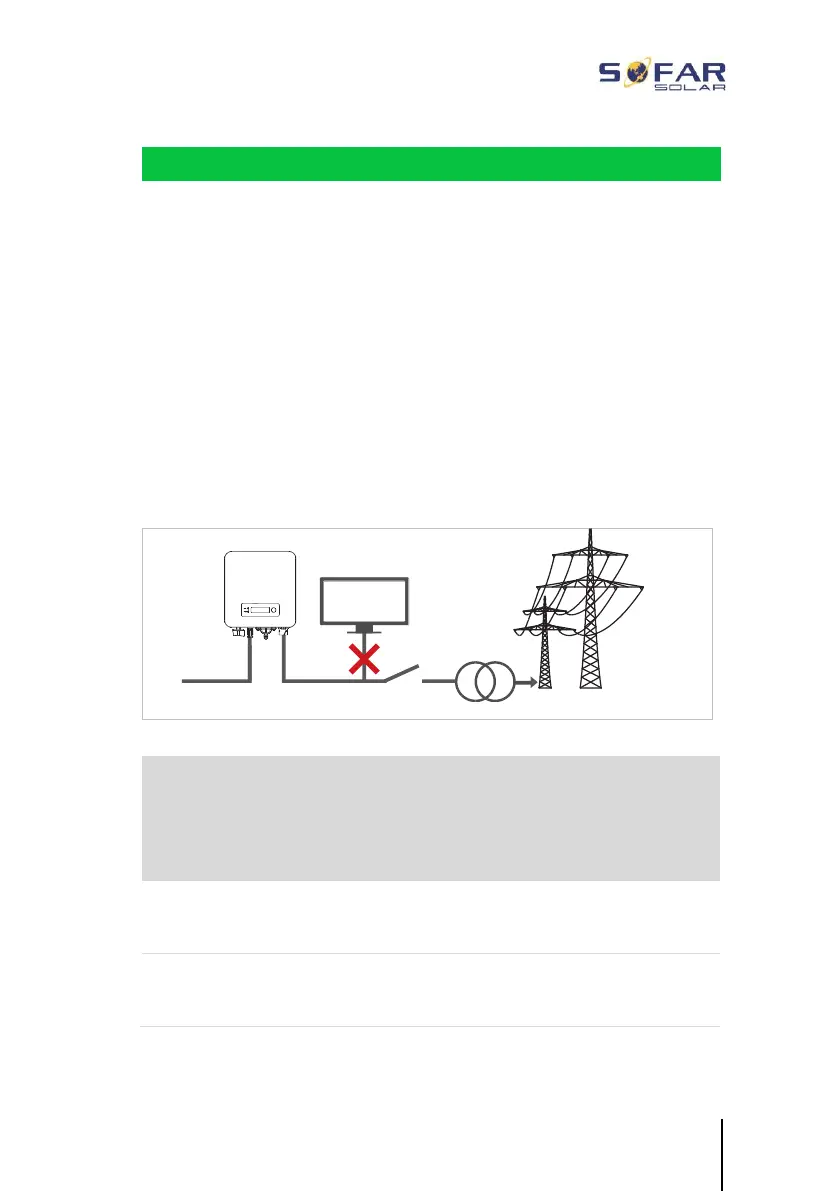

• Please follow the national rules and regulations for the
installation of external relais or circuit breakers!
Dimensioning
The AC output cables are three-wire cables for outdoor areas. To
simplify the installation process, use flexible cables. The
recommended cable specifications are listed in the following table.
Model
1100TL
-G3
1600TL
-G3
2200TL
-G3
2700TL
-G3
3000TL
-G3
3300TL
-G3
Cable
(copper)
≧4mm
²
≧4mm
²
≧4mm²
≧6mm²
≧6mm²
≧6mm²
AC
disconnector
16 A /
400 V
16 A /
400 V
25 A /
400 V
25 A /
400 V
25 A /
400 V
25 A /
400 V
TV
