The AC cable should be correctly dimensioned in order to ensure that
the loss of power in the AC cable is less than 1% of the rated output.
If the AC cable resistance is too high, then the AC voltage will
increase; this may cause the inverter to become disconnected from

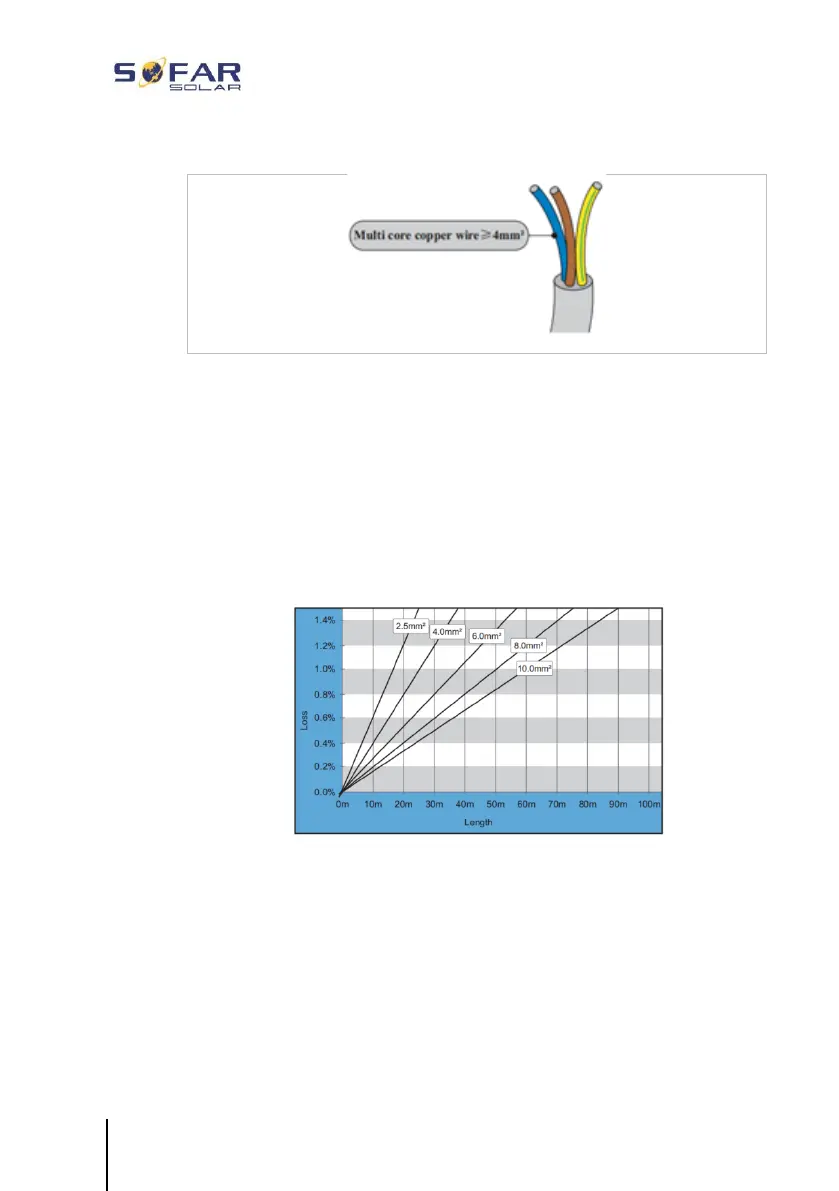

the power grid. The relationship between the leakage power in the AC
cable and the cable length, the cable cross-section, is displayed in the
following illustration:
AC connector type
The inverter is equipped with two types of IP66 AC connector (type I
connector or type II connector):
