SOFAR 7K~10.5KTLM-G3 User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd
- 23 -

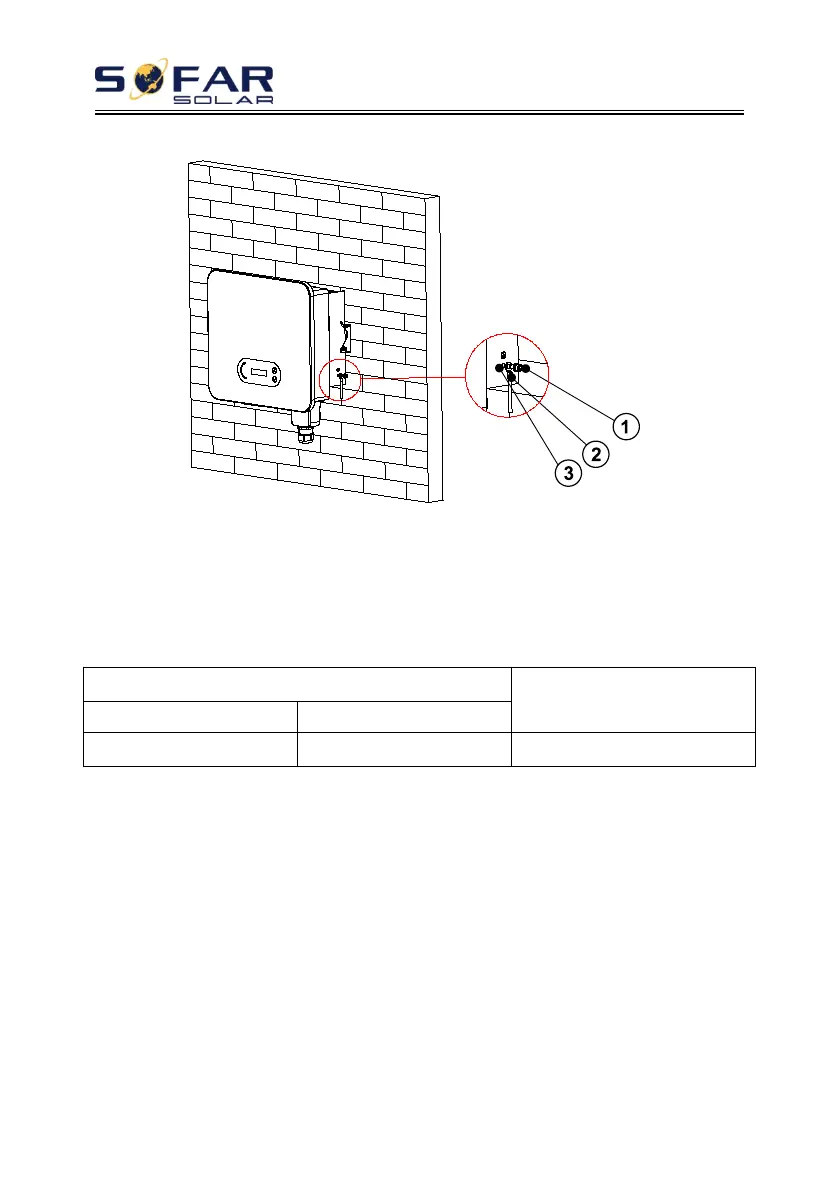

Figure4-3 Ground terminal composition
1.Tapped hole 2.OT Termina 3.M6 screw
4.3. Connecting DC Input Power Cables
Table 4-1 Recommended DC input cable specifications
Cross-Sectional Area (mm ²)
External Cable Diameter(mm)
Range
Recommended Value
4.0~6.0
4.0
4.5~7.8
Step 1 Remove cable glands from the positive and negative connectors.
Step 2 Remove the insulation layer with an appropriate length from the positive
and negative power cables by using a wire stripper as show in Figure 4-4.
