6. Operation interface
Outlines of this chapter
This section introduces the display, operation, buttons and LED indicator lights
of SOFAR 7K~10.5KTLM-G3 Inverter.

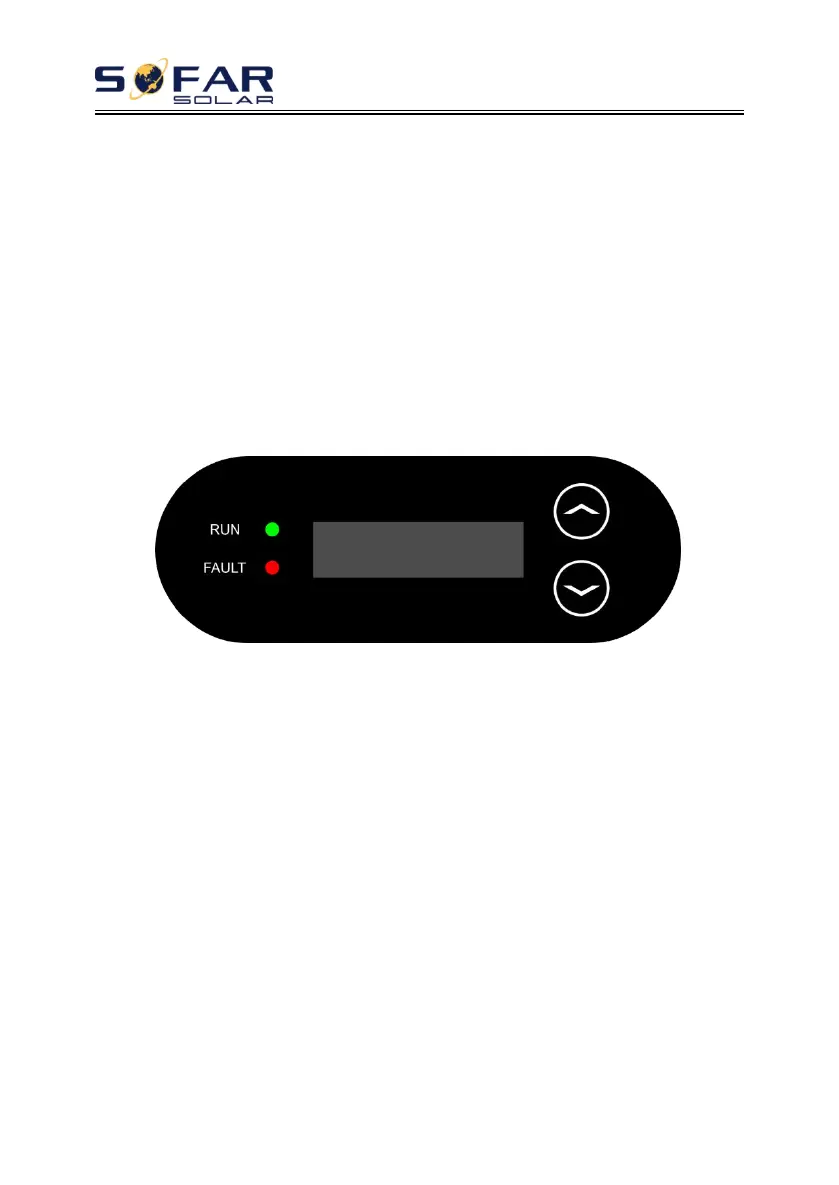

6.1. Operation and Display Panel
Buttons and Indicator lights
Button:
“∧” Short press UP button = go up
“∧” Long press UP button = exit menu or current interface
“∨” Short press DOWN button = go down
“∨” Long press DOWN button = enter menu or current interface
Indicator Lights:
RUN (Green)
ON: “ Normal ” state
Flash: “ Wait ” or “ Check ”state
FAULT (Red)
ON: “ Fault ” or “ Permanent ”state
