SOFAR 7K~10.5KTLM-G3 User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd
4.6. WIFI/GPRS

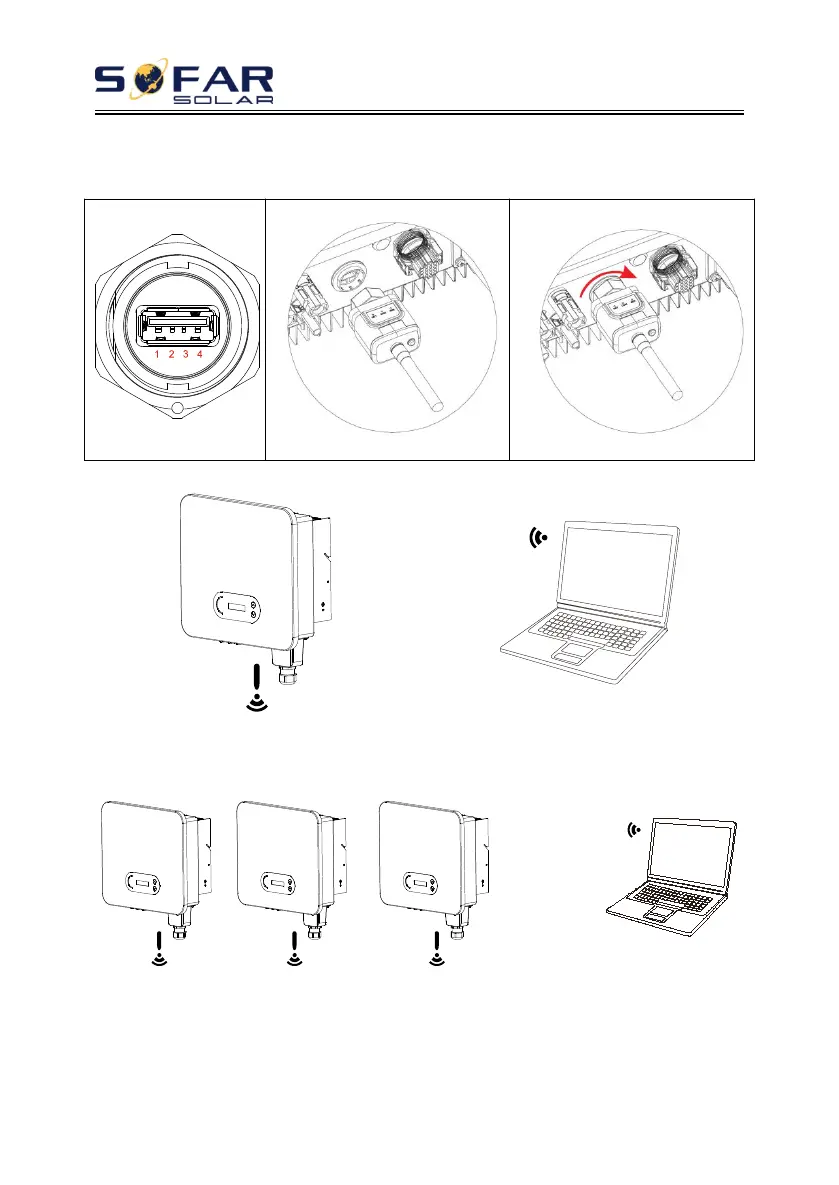

Figure 4-17 Connect one USB acquisition stick (WIFI version) to wireless router
Figure 4-18 Connect multiple USB acquisition stick (WIFI version) to wireless router
NOTE
The length of the RS485 communication cable should be less than 1000 m.
The length of the WIFI communication cable should be less than 100 m.
If multiple SOFAR 7K~10.5KTLM-G3 are connected to the monitoring device
