2. Product characteristics
Outlines of this chapter
Product dimensions
It introduces the field of use, and the overall dimensions of SOFAR
7K~10.5KTLM-G3 inverters.
Function description
It introduces how SOFAR 7K~10.5KTLM-G3 inverters work and the function
modules inside.
Efficiency curves
It introduces the efficiency curves of in the inverter.
2.1. Product dimensions
SOFAR 7K~10.5KTLM-G3 is a dual MPPT grid-tied PV inverter which
converts the DC power generated by PV arrays into sine wave single-phase AC
power and feeds it to the public electrical grid, AC circuit breaker (refer to
Section 4.4) and DC switch used as disconnect device, and the disconnect device
shall be easily accessible.

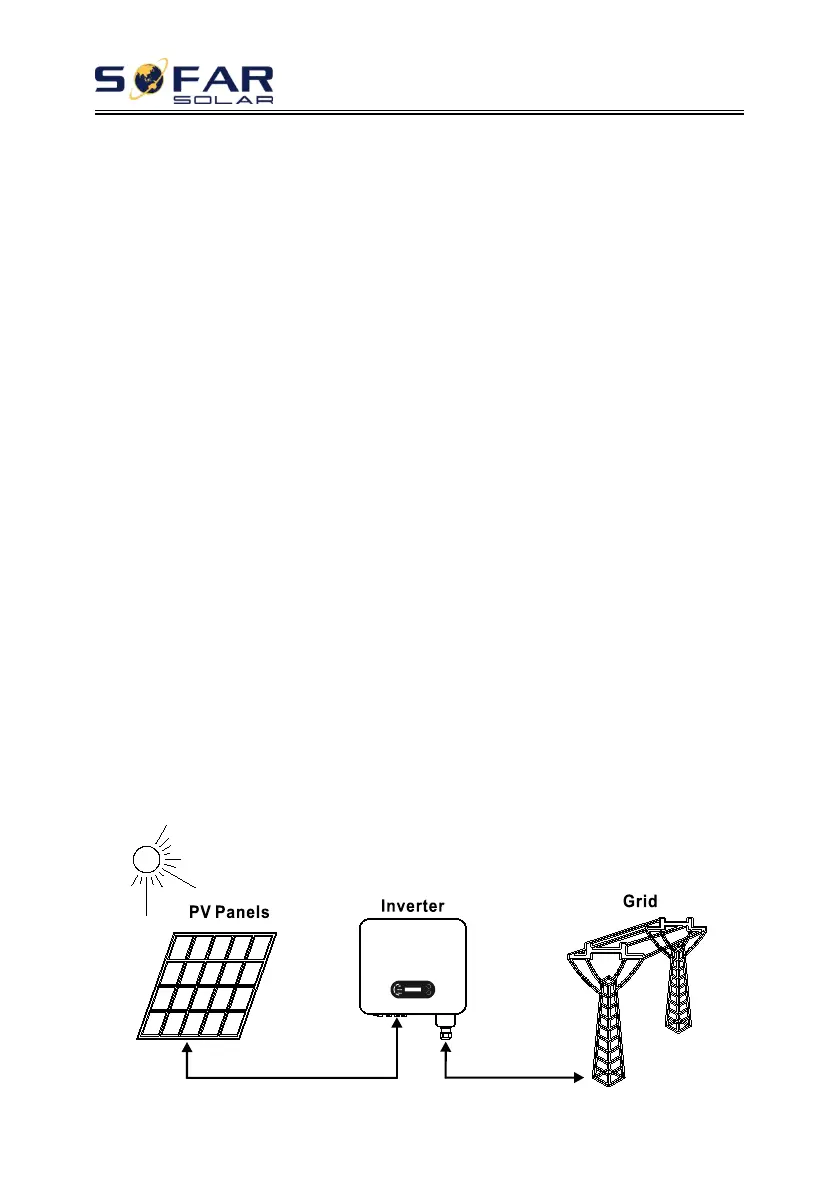

Figure2-1 PV Grid-tied System
