SOFAR 7K~10.5KTLM-G3 User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd
- 31 -
according to
different standard
requirements
11
DRM3/7
12
DRM4/8
13
N/A
N/A
N/A
14
N/A
N/A
N/A
15
CT+
The current sensor
outputs a positive
electrode
Used to connect
current sensor of
power grid
16
CT-
The current sensor
outputs a negative
electrode

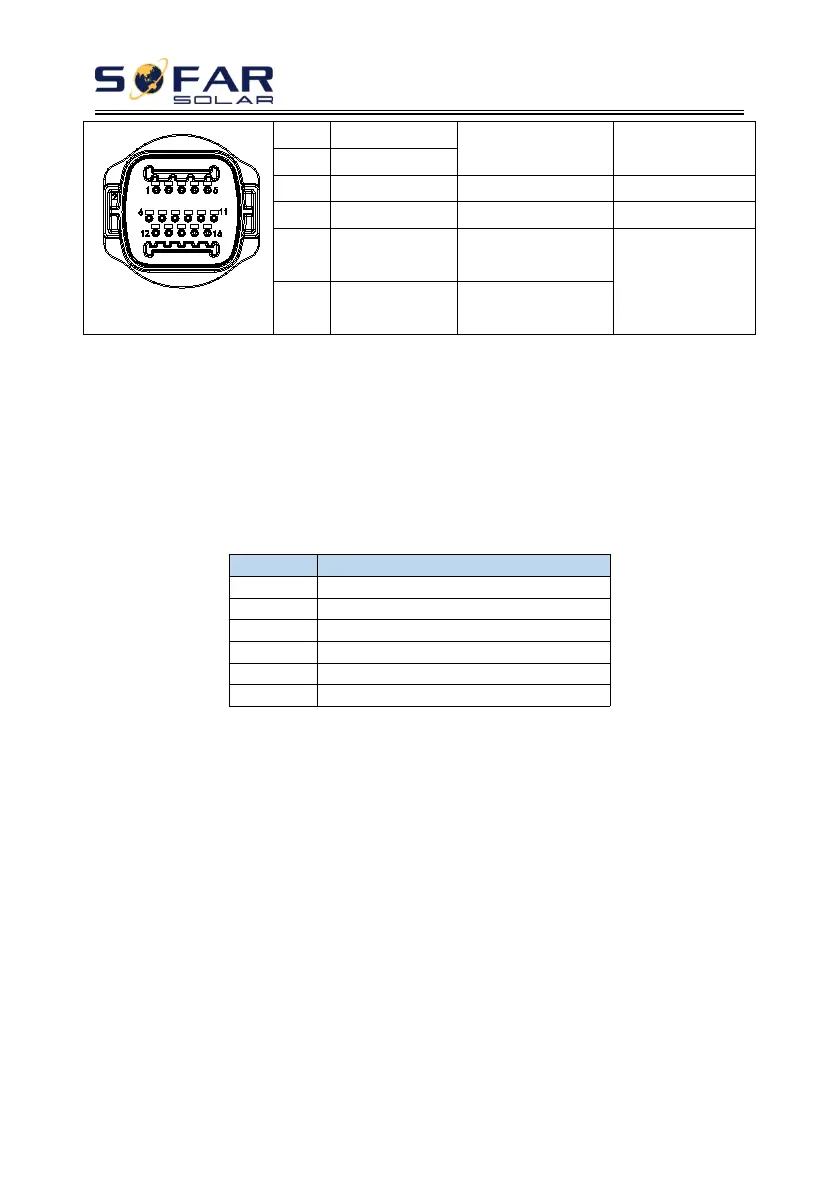

4.4.1 Logic interface
(a) Logic interface for AS/NZS 4777.2:2020, also known as inverter demand
response modes (DRMs).
The inverter will detect and initiate a response to all supported demand response
commands within 2 s. The inverter will continue to respond while the mode
remains asserted.
Table 4-4 Function description of the DRMs terminal
Pin NO.
Function
9
DRM1/5
10
DRM2/6
11
DRM3/7
12
DRM4/8
7
GND
8
DRM0
NOTE: Supported DRM command: DRM0, DRM5, DRM6, DRM7, DRM8.
(b) Logic interface for VDE-AR-N 4105:2018-11, is in order to control and/or
limit the inverter’s output power.
The inverter can be connected to a RRCR (Radio Ripple Control Receiver) in
order to dynamically limit the output power of all the inverters in the
installation.
