Cable Distances and Power

NO and NC Input

Inputs

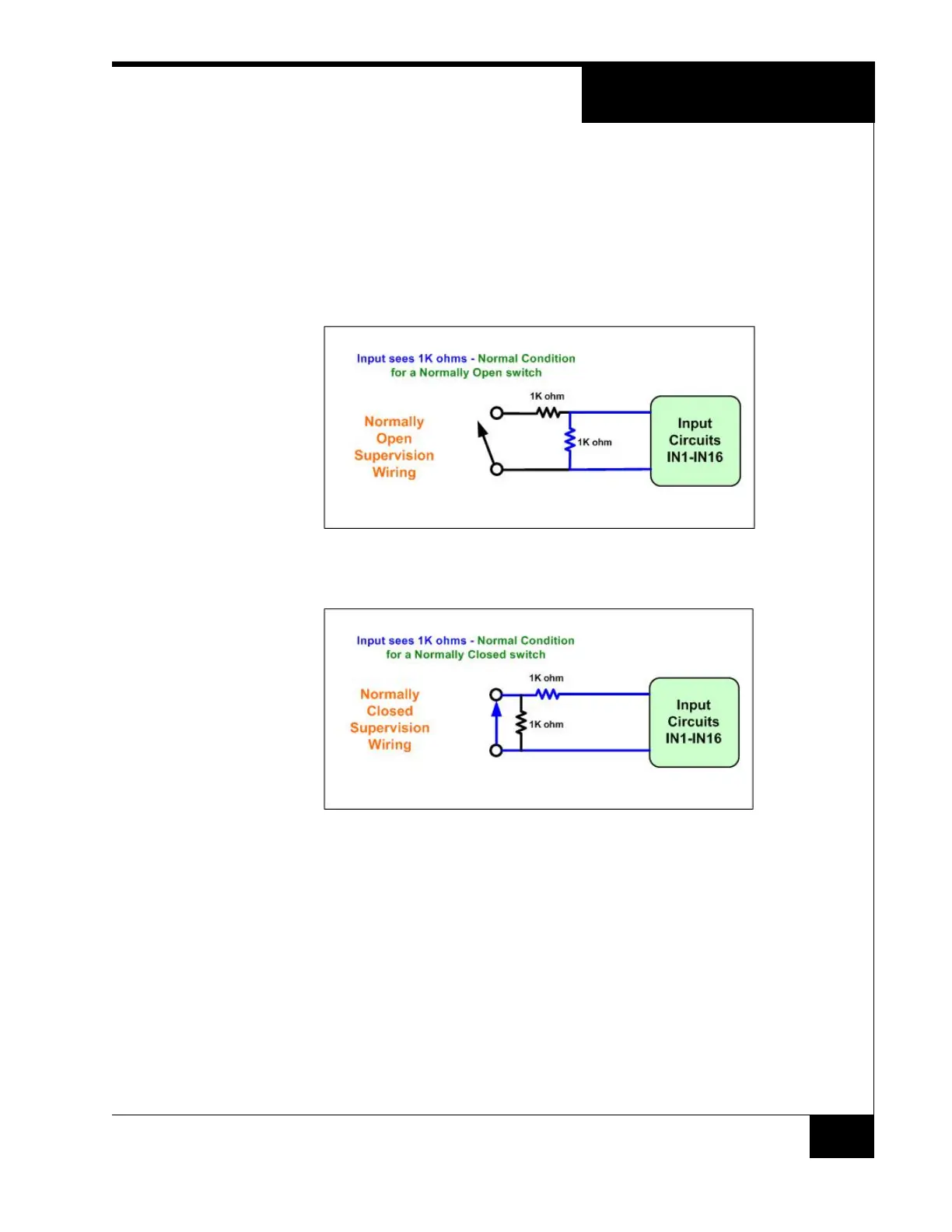

The wiring of supervised inputs is shown in the next two figures. Note that the

resistor network is different for NO and NC switches.

Normally Open (NO) Wiring

Normally Closed (NC) Wiring

NOTE

To comply with UL requirements, use shielded, minimum 22 AWG stranded,

twisted pair cable for monitor points, DSMs, and REXs. Use Belden 9462 or

equivalent.
