Check Grid Input Voltage
A. Measure L1 to Neutral and L2 to Neutral. Ensure 120Vac
B. Measure L1 and L2Ensure 240Vac
C. Check Neutral and Ground are ~0V AC
D. Verify L1 voltage on AC in/out is 0Vac with the main L1
connection in the panel Same for L2
Check Battery Voltage
A. Turn on the battery switch (if using a Lithium battery)
B. Turn on the built-in battery disconnect in the user area
C. The voltage should be 45Vdc-60Vdc
Provide Power to Sol-Ark
A. Turn on Grid Breaker and Load Breaker
B. Turn PV disconnect switch to the "ON" position
C. Press the ON/OFF Button on the front, and the blue light
should turn on

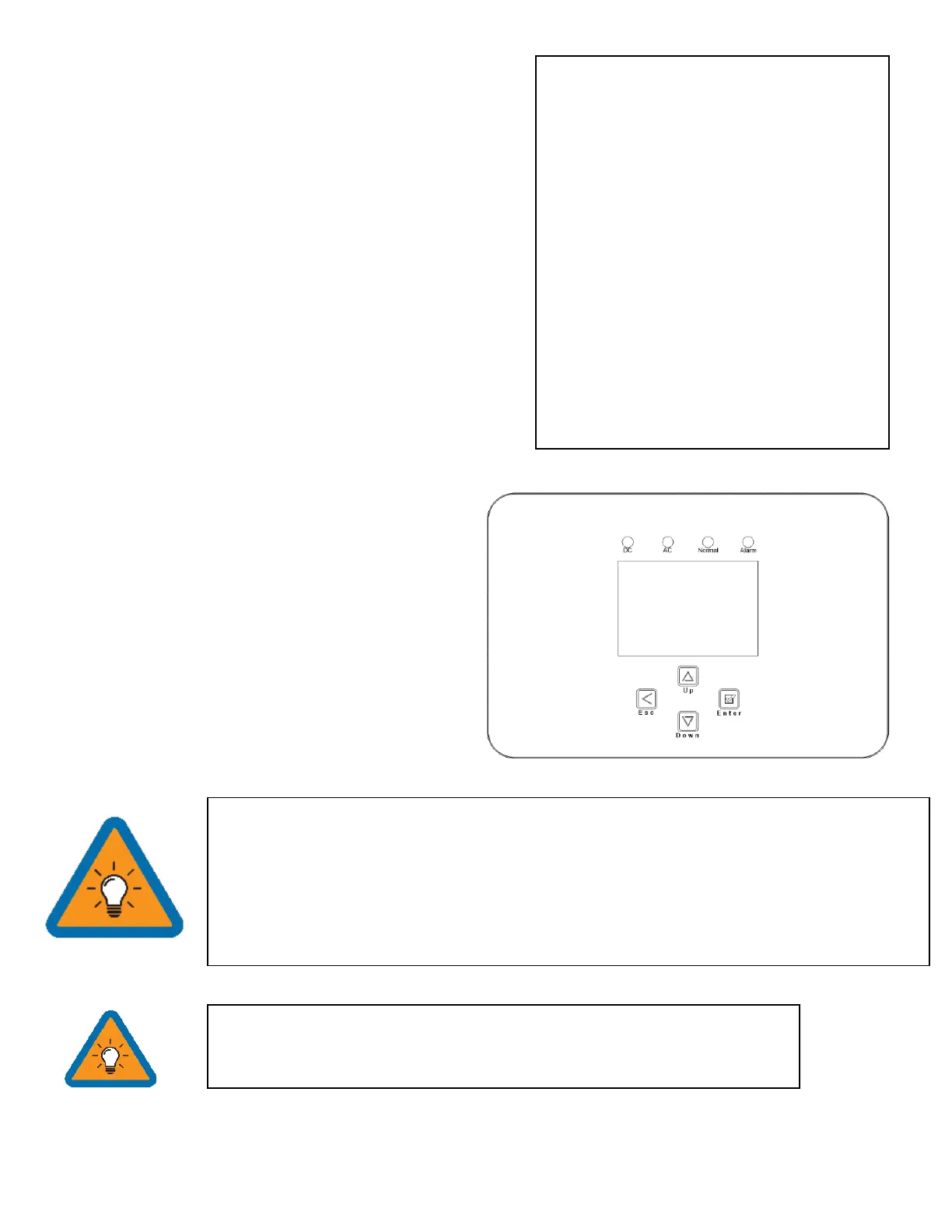

Indicator LED's
DC
A. Green = DC Solar Panels are producing
B. Off = Solar Panels are not producing
AC
A. Green = Grid (or Gen or AC Coupled) is Connected
B. Off = grid is not Connected
Normal
A. Green = Sol-Ark 12K is working properly
B. Off = Sol-Ark 12K is not working properly
Alarm
A. Red = Alarm, check the alarms menu
B. Off = No alarms
Power Cycle Sequence
1. Turn on the Built-In battery disconnect
2. Make sure that Sol-Ark 12K is properly
connected to the batteries, panels, grid, etc.
(see system wiring diagram).
3. Turn on grid power breakers.
4. Press the power button on the front of the
unit.
5. Make sure Solar panel inputs are not
connected to Ground, then Turn on DC
disconnect switch.
6. Turn on load breakers.
7. Reverse the steps to turn off
Verifying proper sensor direction:
Any loads in the home will show a positive HM (+) value in Watts
Turning on solar panels and enabling Grid Sell should show a negative HM (-) in Watts if you are
producing more power than the loads are consuming
If you turn on limited power to Home mode, then HM: ~0 Watts to zero the meter (system matches
the loads to within 99%)
If you installed limiter sensors (CTs) for Limited To Home selling mode, verifying
the proper sensor placement and direction is critical. Remove one sensor from
the main L1 connection, and the power should drop to 0W.
