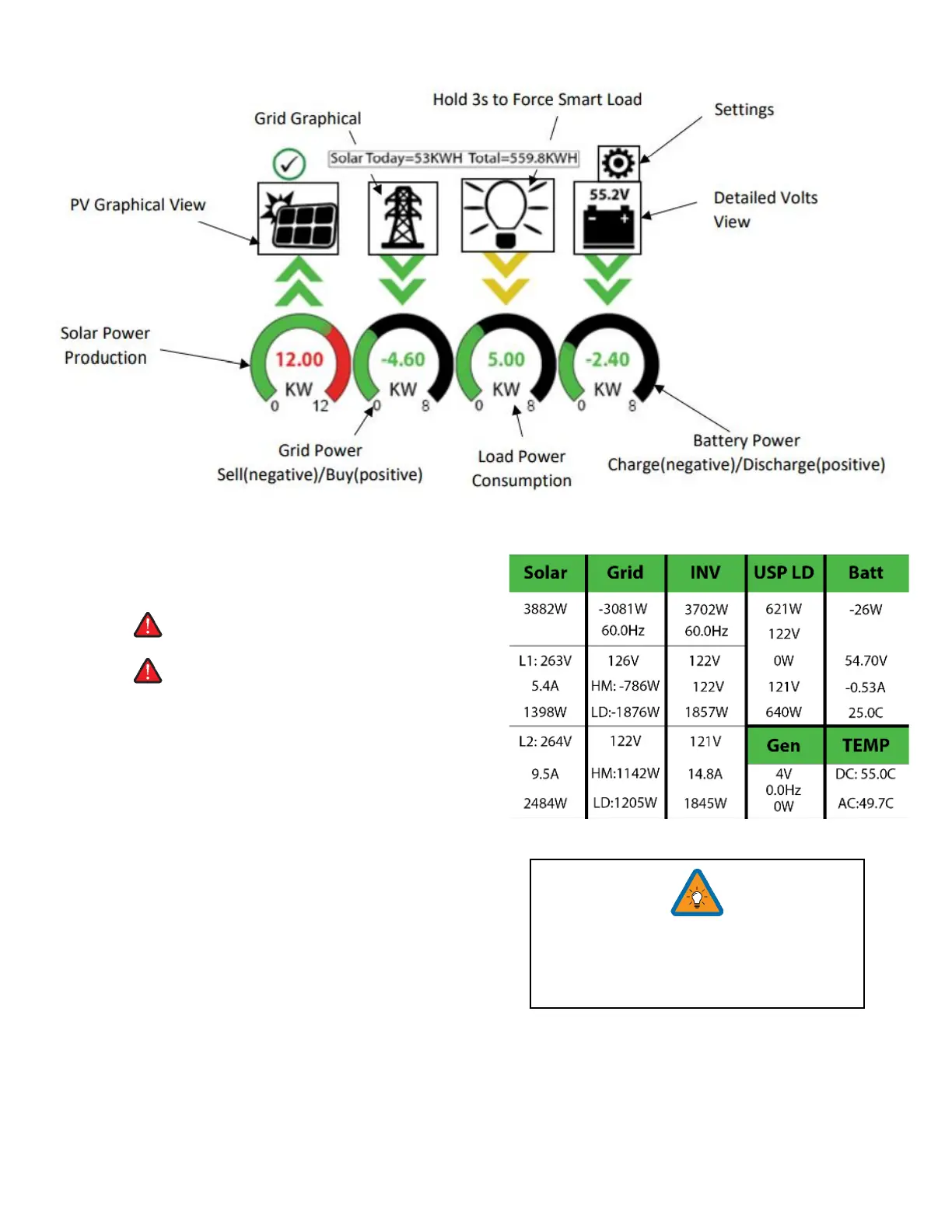

Main Screens (Touchscreen)
Detailed Volts View
• Top row = Total power for column
• Middle Row = Line 1/PV1 voltage, Amps, and Watts
(note: PV Voltage not to exceed 500V)
• Bottom Row = Line 2/PV2 voltage, Amps, and Watts
(note: PV Voltage not to exceed 500V)
• Batt Temperature will show -20°C if the temperature
sensor is not connected. Batt SOC % = % batteries are
charged
• DC Temp = Temperature of DC conversion electronics
o Batt → AC
o PV → Batt
o AC → Batt
• AC Temp = Temperature of AC conversion electronics
o Batt → AC
o PV → AC
• Grid Column
o If selling to the Grid, Grid Watts = negative
o If buying from the Grid, Grid Watts = positive
o HM = power detected by the external current
sensors on the entire home L1 & L2
o LD = power detected using internal sensors on AC grid in/out breaker
