Sol-Ark 12K Torque Values Application Note
Load Breaker
26.5 IN Lbs
3 NM
Grid Breaker
26.5 IN Lbs
3 NM
Gen Breaker
26.5 IN Lbs
3 NM
Neutral / Ground Busbars
26.5 IN Lbs
3 NM
Cover Screws
26.5 IN Lbs
3 NM
Battery Connection
90.0 IN Lbs
10 NM

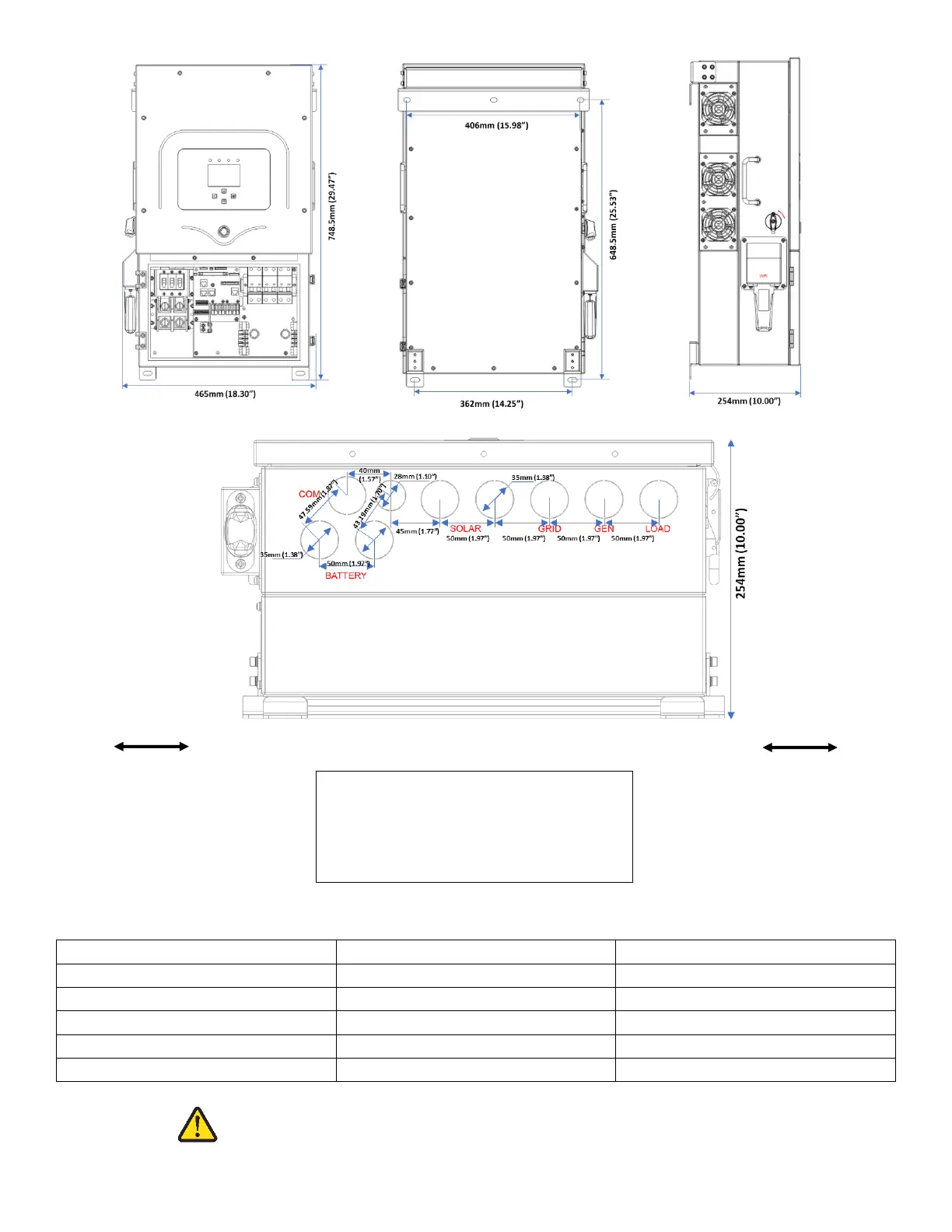

6”
6” minimum clearance (12” IF NEXT TO ANOTHER SYSTEM)
6”
Temperature Derating
DC: 90C-100C Shutdown @ 100C
AC: 75C-82C Shutdown @ 82C
Do Not Use Impact Drivers to Tighten Any Fasteners on the Sol-Ark.
