sol-ark 8K - Rapid Shutdown Hardware Diagram (Midnight RSD per PV string); Rapid Shutdown Hardware Diagram (TIGO RSD per PV Module)

August 3, 2019 21

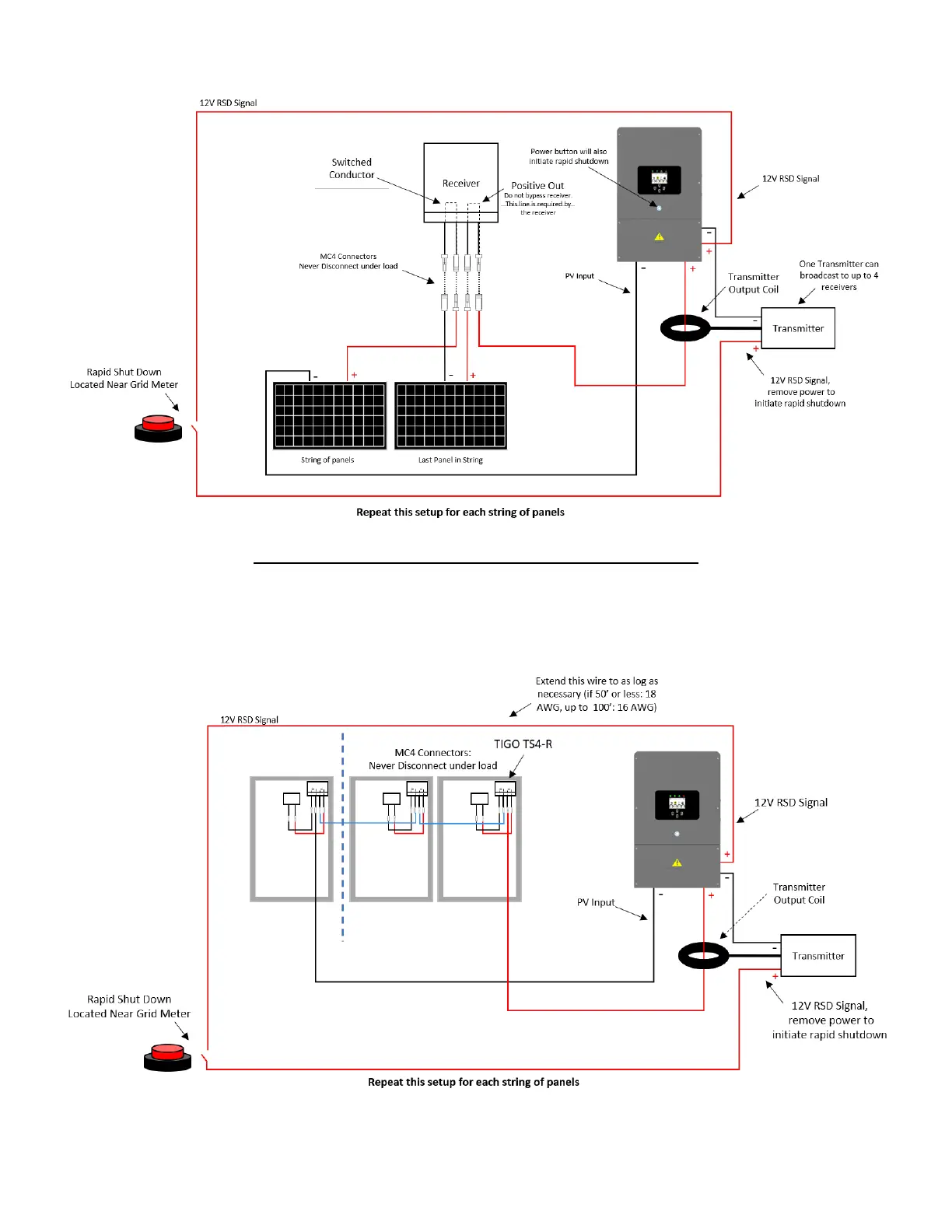

Rapid Shutdown Hardware Diagram (Midnight RSD per PV string)
Note: Transmitter fits inside the user area of the Sol-Ark 8K
If String Level rapid shutdown is required for your install, each string of panels must have its own receiver
module.
Rapid Shutdown Hardware Diagram (TIGO RSD per PV Module)
