6. Install Double Pole 50A breaker in Main Panel for Grid In/Out
a. It is best practice to install at the opposite end of the bus bar from the main breaker (Usually
this is the bottom of the breaker panel as seen on page 5).
7. Mount Sol-Ark 8K
a. Find a suitable location for the system, keeping in mind the dimensions in Fig. 1 below.
b. System must be protected from moisture and extreme heat. (Do not mount outdoors or in
attic OR WARRANTY WILL BE VOID AND DAMAGE WILL LIKELY OCCUR)
c. The system weighs 75lbs (34kg), be sure to attach it securely to the wall. You may need to affix
a mounting board to your wall first using 6-8 screws into studs.
d. Then use 2-3 screws (appropriate in length and type for your mounting surface) to mount the
French Cleat to the board/wall (washers recommended).
e. Mount the Sol-Ark on the installed cleat making sure that it sits properly and is level.
f. Add 2 screws in bottom mounts.

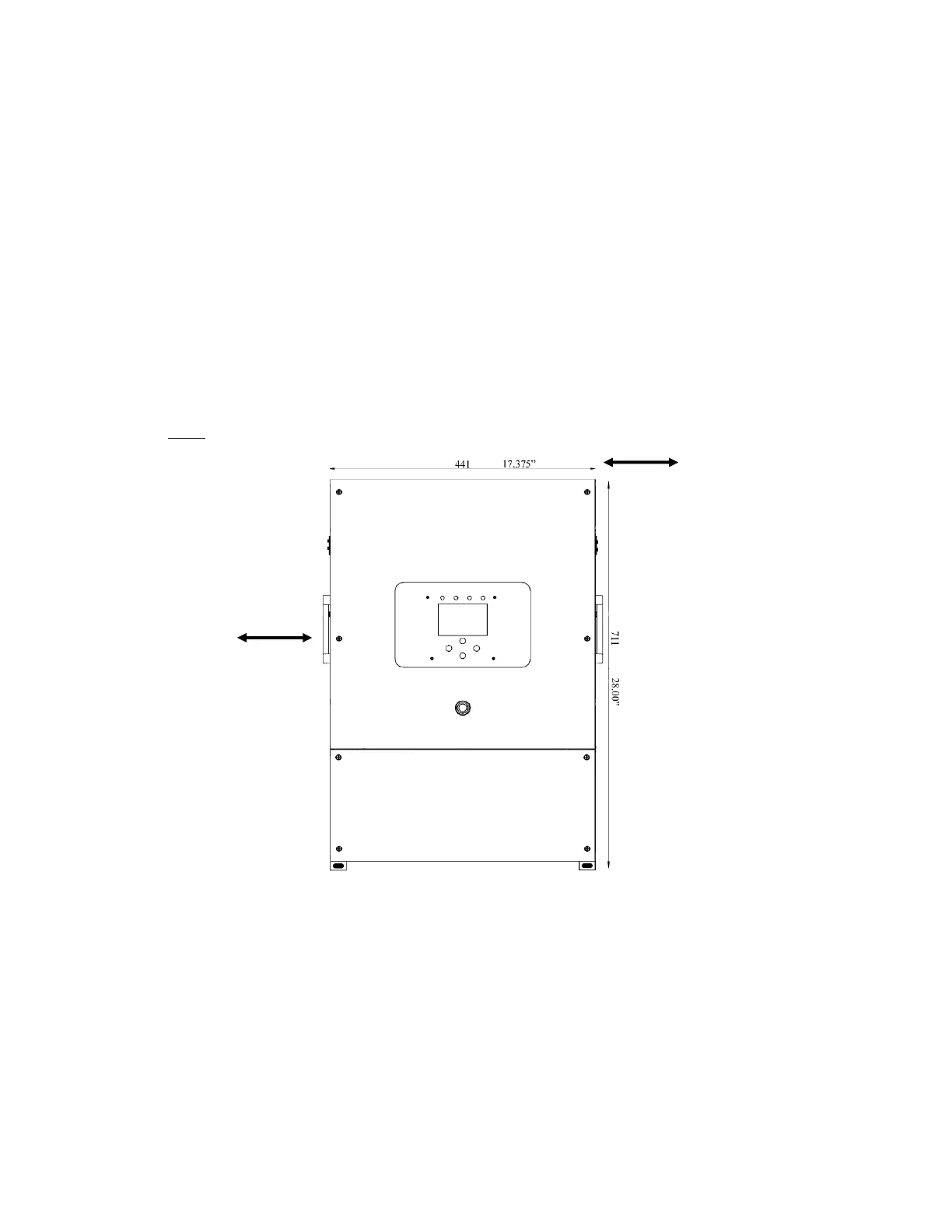

Fig. 1
