• 120/240 Split Phase (North America)
• 120/208V 3 Phase
• Note: If 120/208V, the L1 and L2 are phase
specific. So, you may have to swap Grid L1 L2 for
208V applications.
• Note: Inverter power cycle is required each time
the input/output voltage is changed
▪ Protect Parameters (when
• Settings when the system will connect/disconnect from grid
• This is not used when UL 1741 & IEEE1547 is enabled
• You may need to widen the frequency range when using a generator (53-65 Hz)

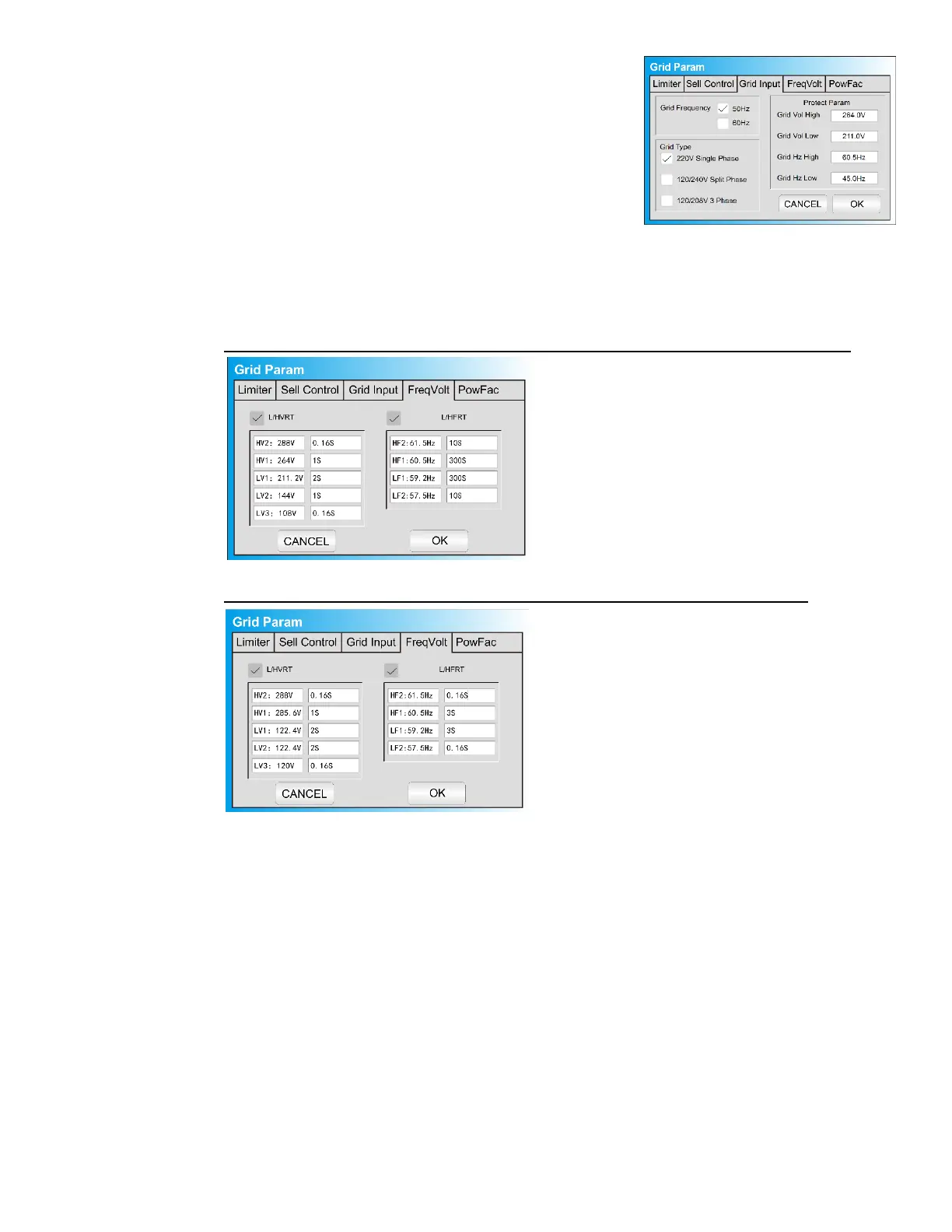

o FreqVolt
▪ Puerto Rico Grid Compliance Settings (UL 1741SA must be enabled in “Sell Control” tab):
▪ Kauai Grid Compliance Settings (UL 1741SA must be enabled in “Sell Control” tab):
o PowFac
▪ Power Factor is programmable from 0.9 – 1.0.
