Sola Neumasem Plus - Page 8

Sola Neumasem Plus Drill Control
8
5. Drive the vehicle until the chosen reference
point on the tractor/implement is opposite the
second marker.
The instrument counts and displays the sensor
pulses received over the distance travelled.
6. Press the button to complete the
Autocal routine (fig. 4).
The calibration factor is automatically
calculated and stored in memory.

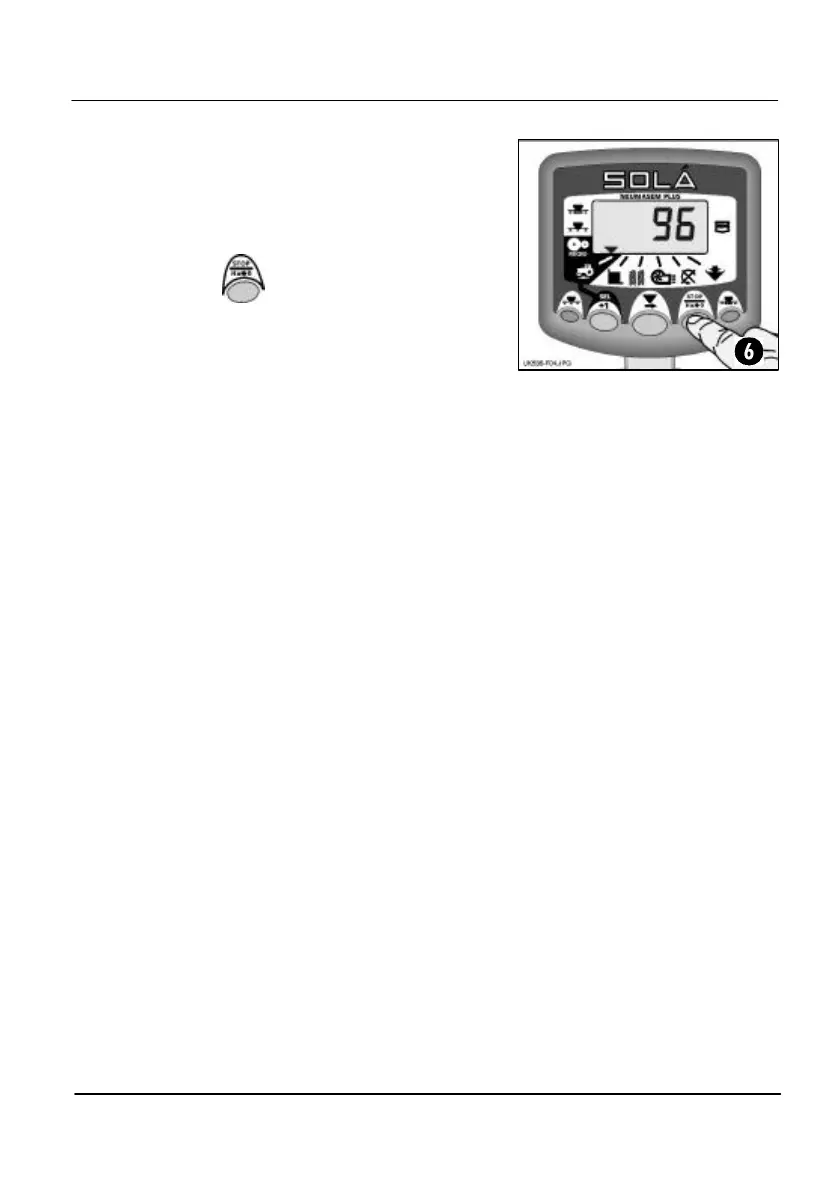

Figure 4: Stop ‘Autocal’
