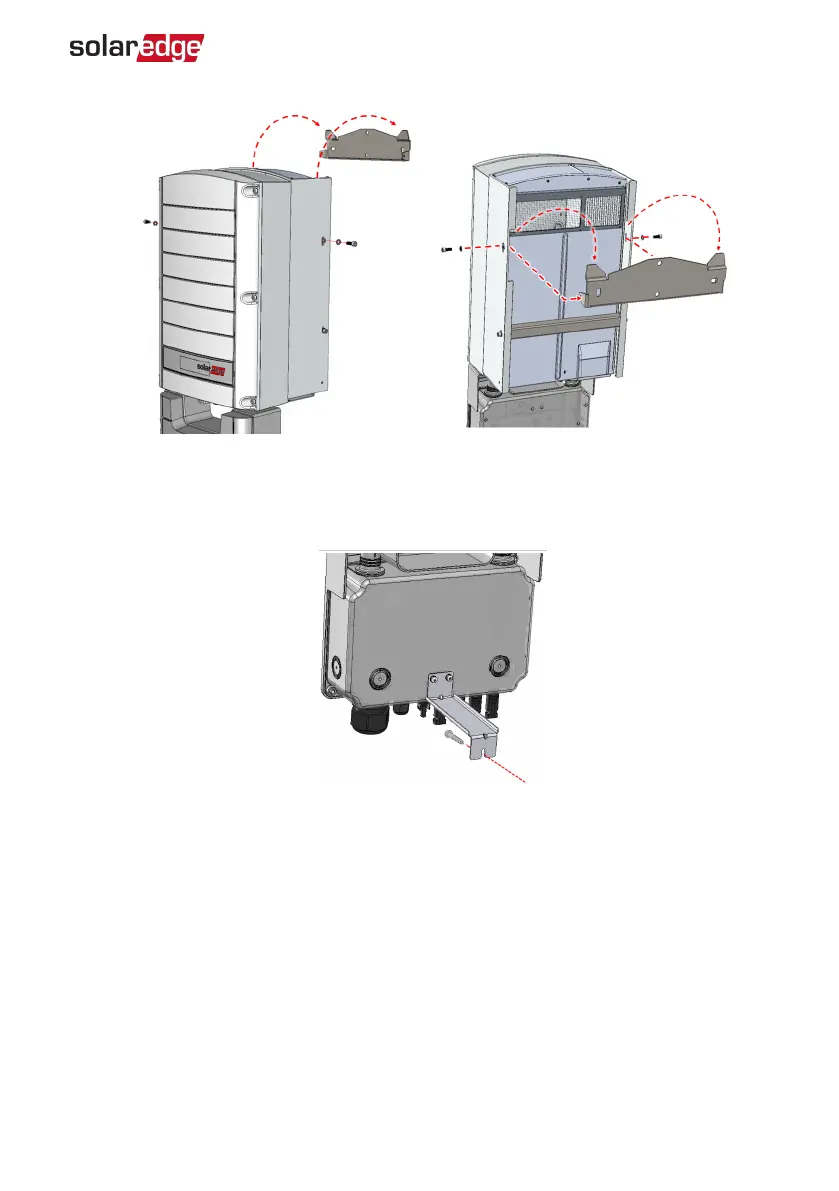

Figure 12: Hanging the inverter on the brackets
4.
Mark the location of the drilling hole required for the screw that secures the bracket
of the DC Safety Unit to the wall (See
Figure 13 ) and remove the inverter from the wall.
Figure 13: Securing the DC Safety Unit to the wall
5.
Drill a hole for the screw anchor securing DC Safety Unit to the wall.
6.
Hang the inverter on the bracket (See Figure 11 ):
a. Lift the inverter from the sides, or hold it at the top and bottom. Do not lift
holding the DC Safety Unit as it may be damaged.
b. Lower the inverter onto the U-shaped indentations of the mounting bracket. Let
the inverter lay flat against the wall or pole.
c.
Insert the two supplied screws through the outer heat sink fin on both sides of
Chapter 3: Installing the Inverter 30
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

SolarEdge SE Series Specifications

General

Efficiency	Up to 99%
Protection Rating	IP65
Communication	Ethernet, Wi-Fi (optional), RS485
Dimensions	Varies by model
Weight	Varies by model
Rated AC Power	Varies by model
Max. DC Power	Varies by model
Model	SE Series (e.g., SE3000H, SE5000H)
AC Output Power	Varies by model
MPPT Range	Varies by model
Operating Temperature	-25°C to 60°C
Warranty	12 years standard, extendable to 20 or 25 years
