SolarEdge SE100K User Manual

Photovoltaic Hazard Control Application
SolarEdge commercial optimizers and inverters have been evaluated and listed to UL
3741 and may be used to form a PV hazard control system that utilizes SolarEdges PV
rapid shutdown system to comply with NEC 690.12. Multiple modules may be
connected in series to the optimizer input without exceeding the input voltage rating of

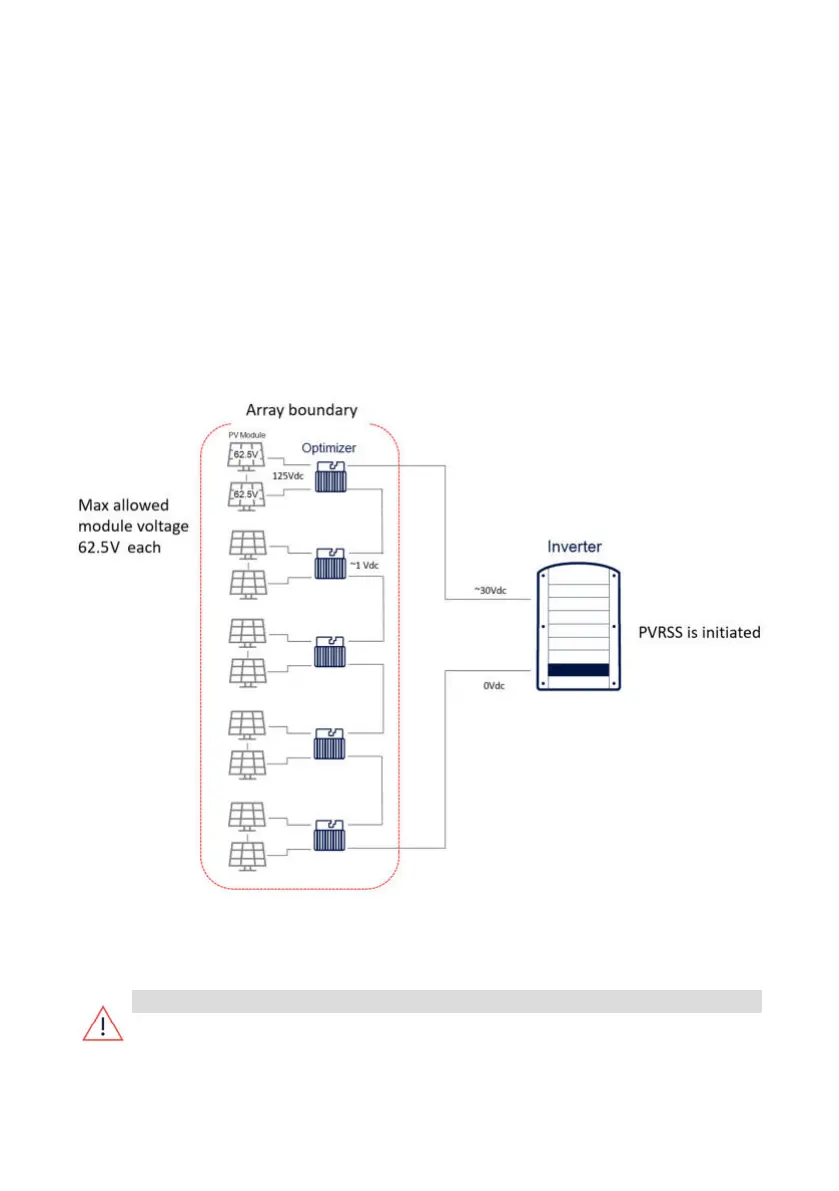

the optimizer (125V dc). The diagram below depicts a typical PV hazard control system
using multiple PV modules in series connected to optimizers. Installation instructions,
warnings and cautions in this installation guide must be followed to comply with Local
codes . The PVRSS shall be installed by qualified persons in accordance with the
installation instructions and all applicable installation codes and standards.
Power optimizer models with input Voltage up to 125Vdc, when used with SolarEdge
three phase inverters and DC safety switches listed and marked with PVRSS, may be
used to form a Listed Photovoltaic Hazard Control System.
NOTE
Power optimizer models compliant with SolarEdge PV Hazard Control System:
UL3741 listed models as noted on power optimizer datasheet.
Photovoltaic Hazard Control Application15
Three Phase Inverters with Synergy Technology PN: SExxK-xxxxIxxxx

SolarEdge SE100K Specifications

General

Max. Efficiency	98.8%
Transformer-less	Yes
Protection Rating	IP65
Frequency	50/60 Hz
AC Output Power	100 kW
Rated AC Power	100, 000 W
Maximum DC Power	135000 W
AC Voltage	400 V
Max. Input Voltage	1000Vdc
Operating Temperature Range	-25°C to 60°C
