Front Interface of Synergy Manager

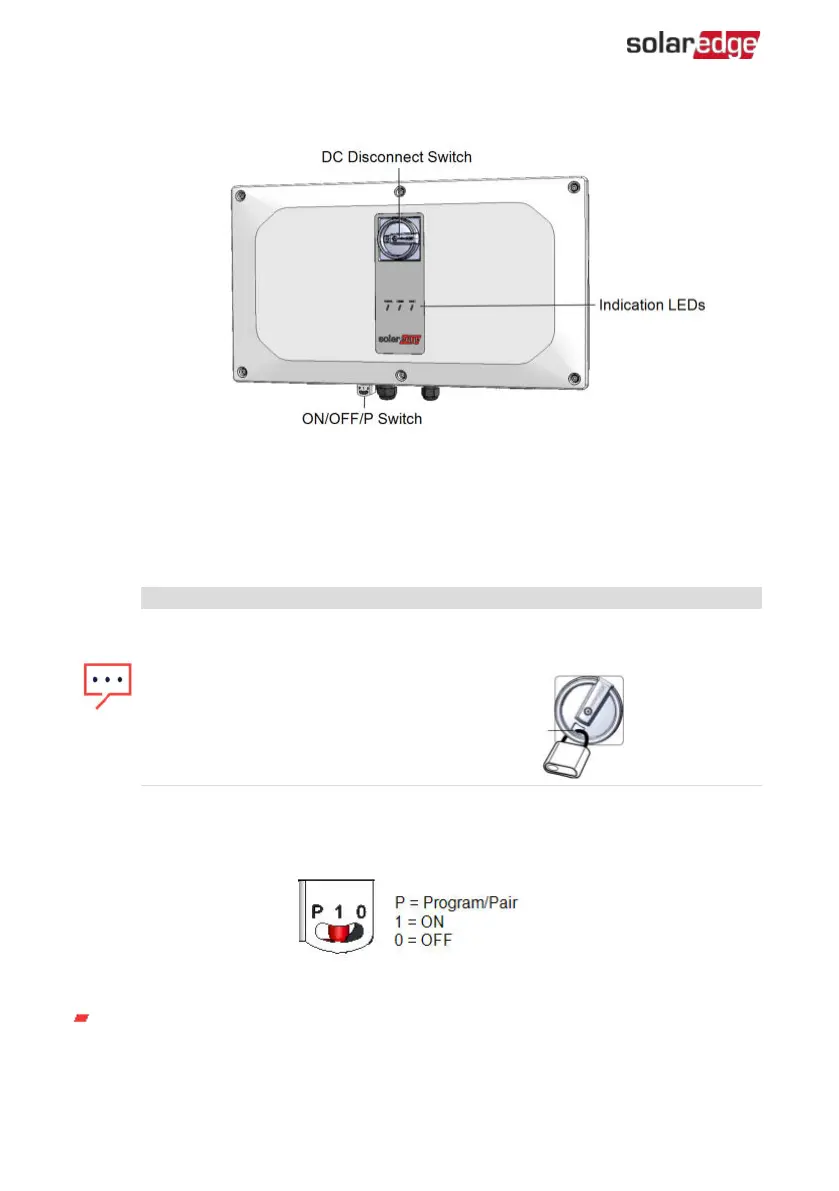

Figure 9: Synergy Manager Unit - Front interfaces
DC Disconnect Switch
The DC Disconnect Switch is a manually operated safety switch for disconnecting the
DC power of the SolarEdge system.
NOTE
When the Synergy Manager is OFF (for example during maintenance) it may
be locked to prevent a safety hazard:
1. Move the switch to the Lock position.
2. Insert the lock through the knob opening
and lock.
ON/OFF/P Switch
Figure 10
shows the ON/OFF/P switch of the Synergy Manager.
Figure 10: ON/OFF/P switch
ON (1) - Turning this switch ON (after Power Optimizer pairing) starts the operation
of the Power Optimizers, enables power production and allows the inverter to
begin exporting power to the utility grid.
Three Phase Inverters with Synergy Technology PN: SExxK-xxxxIxxxx
35 Front Interface of Synergy Manager
