Chapter 1: Introduction to Smart EV Charger
The Smart EV Charger is designed to provide reliable and economical charging of an
electric vehicle (EV). It provides Level 2 EV charging from the AC and the PV system, and
is designed to work with all plug-in vehicles with J1772 (Type 1) socket.
The Smart EV Charger is also used for hanging the Smart EV Charger cable, protecting
the plug from rain when not plugged into the vehicle.
The Smart EV Charger offers the following connection options to the grid:
AC plug (NEMA 6-50) used for plugging the Smart EVCharger into the wall socket
for connecting to the alternating current (AC).
Direct AC connection to the Smart EV Charger. To be performed only by a
professional installer.
Additionally, there is an option for connecting the Smart EV Charger to a Single phase
inverter with HD-Wave technology at your site, enabling to use PV power as well as grid
power for EV charging. This option is to be performed only by a professional installer.

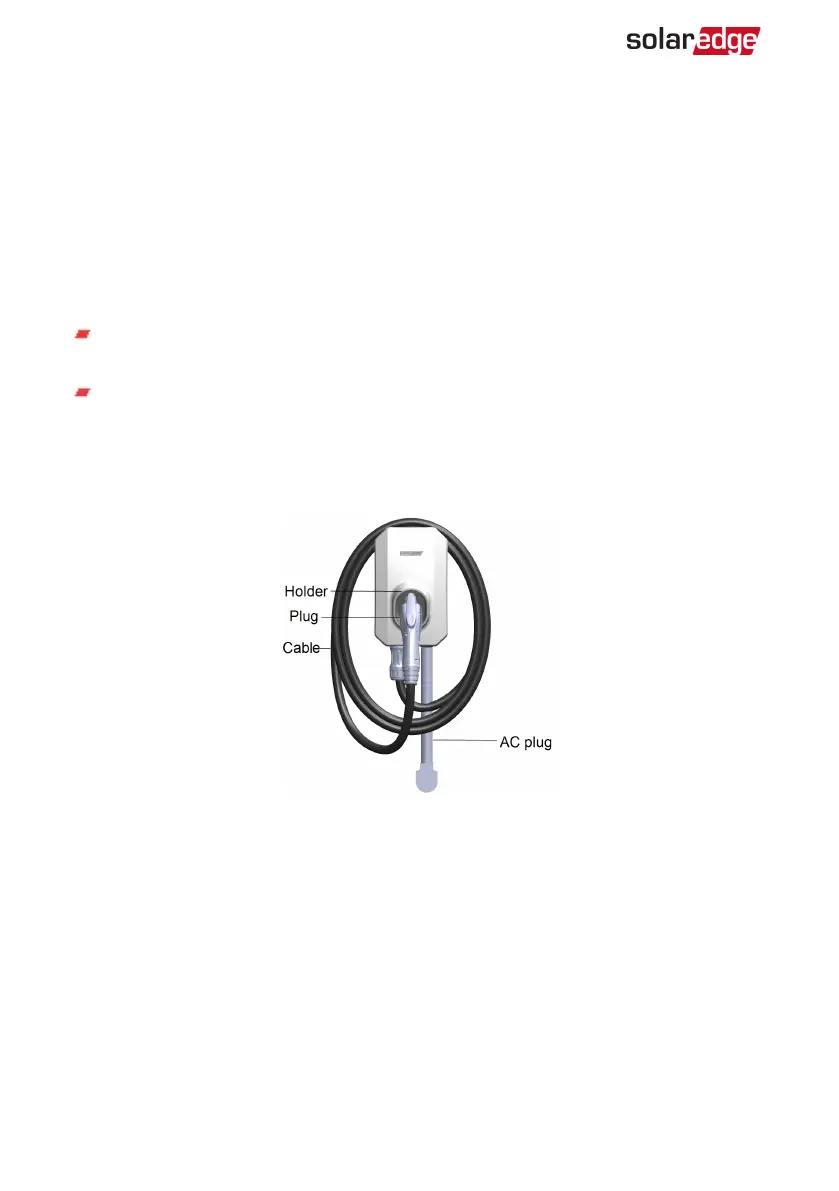

Figure 1: Smart EV Charger
Smart EV Charger Installation MAN-01-00657-1.0
