bracket dimensions). Drill holes in the locations you marked and mount the bracket.
Verify that the bracket is firmly attached to the mounting surface.

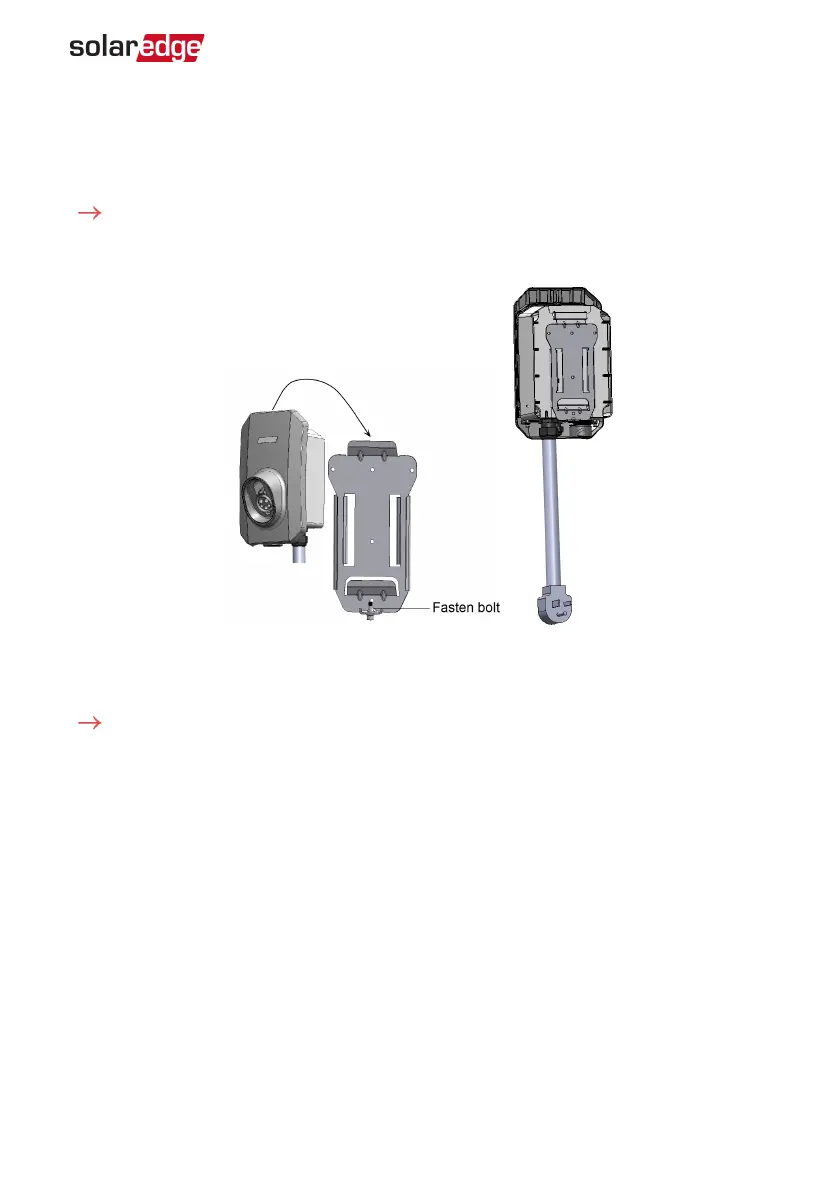

To mount the Smart EV Charger on the bracket:
1.
Lift and hang the Smart EV Charger on the mounted bracket (see the following
figure).
2.
Fasten the supplied bolt to the Smart EVCharger.
To connect the Smart EV charger cable:
1. Align the two white arrows on the Smart EV charger cable connector with the white
dot on the Smart EV Charger connector located at the bottom of the Smart EV
Charger. The dot should be between the two arrows (see the following figure).
2.
Plug the cable connector into the Smart EV charger connector (see the following
figure).
Chapter 2: Connectors and Interfaces 18
Smart EV Charger Installation MAN-01-00657-1.0
