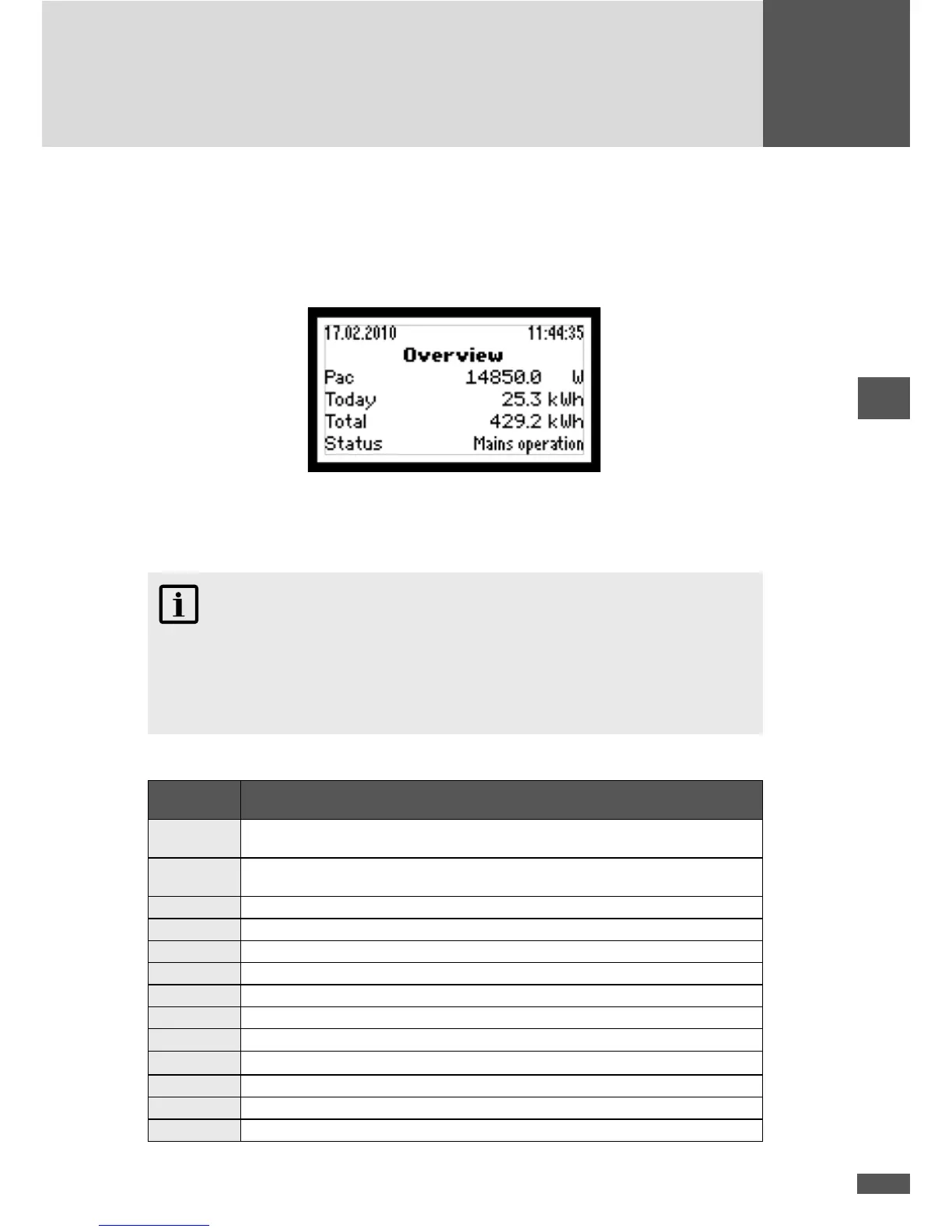

6.3.2 Overview
If none of the three buttons is pushed for 120 seconds, the display returns automatically
to the Overview menu showing the three most important values as well as the current
operating status.
6.3.3 Measured values
The current inverter measured values can be accessed in the “Measured values” menu.
NOTE
The inverter measured values are not suitable for billing purposes or calculating ef-
ciency. The measuring error may amount to up to ±5% depending on the measured
value. Only the measured values of a calibrated electricity meter are decisive for billing
purposes.
The following measured values can be accessed:
Measured
value
Description
Vdc 1/2/3
DC input voltages trackers 1, 2, and 3;
SM8MT2, SM10MT2, SM13MT2 & SM15MT2: trackers 1 and 2
Idc 1/2/3
DC input currents trackers 1, 2, and 3;
SM8MT2, SM10MT2, SM13MT2 & SM15MT2: trackers 1 and 2
Pdc Input power
Pdc 1,2,3
Input power trackers 1, 2, and 3; SM8MT2, SM10MT2, SM13MT2 & SM15MT2: trackers 1 and 2
Vac L1/L2/L3 Mains voltage phases L1, L2, and L3 (voltage to neutral)
Iac L1/L2/L3 AC feed-in current phases L1, L2, and L3
Pac Active output power
Q Reactive power (+: overexcited / −: underexcited)
S Apparent output power
Cos(
φ)
Power factor (OEX: overexcited / UEX: underexcited)
Frequency Mains frequency
Temperature Temperature of the heat sinks
Fan Operating conditions of the fans (on/off)
