4 Preparation before Installation
Series Box
A2
C2
F2
B2
D2
E2
G2
H2 I2
J2 K2 L2
M2
N2 P2O2

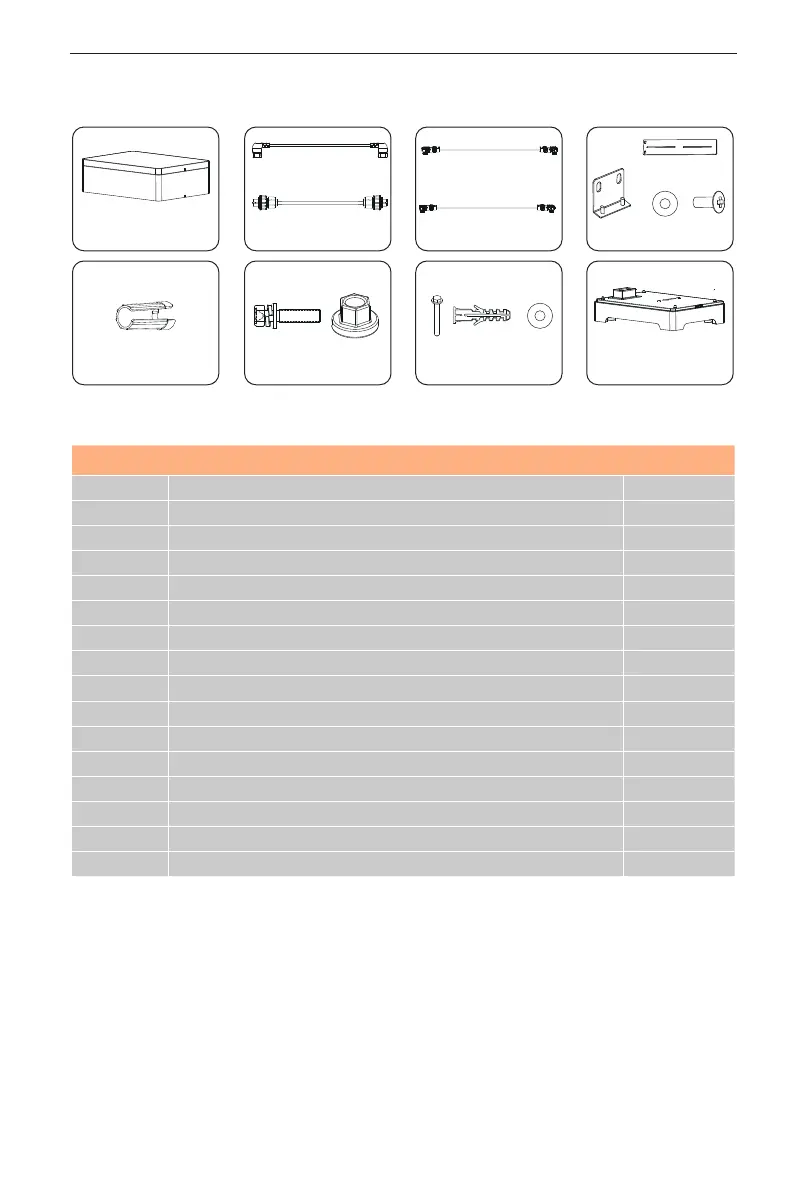

Accessories included are shown as follows:
Item No. Description Quantity
A2 Base 1
B2 Heater Cable (HEAT port) 1
C2 Communication Cable (COM port) 1
D2 Power Cable (Black) 1
E2 Power Cable (Red) 1
F2 Adjustable Bracket 1
G2 “L” Bracket 1
H2 M4 Washer 2
I2 M4x14 Phillips-head Screw 2
J2 Rotation Wrench 1
K2 M4x15 Phillips-head Screw 2
L2 M6 Flange Nut 2
M2 Tapping Screw 2
N2 Expansion Bolt 2
O2 Washer 2
P2 Document 1
*Note:
■
If the battery module purchased excesses 10 sets (including 10), these battery
modules should be installed in two groups, and the “Series Box” should be in-
stalled to connect two groups in series.
■
If the battery module purchased is less than 9 sets (including 9), these battery
modules may be installed in one or two groups. In case of two groups, the “Series
Box” is recommended to install.
■
Additionally, the above accessories kit for “Series Box” needs to be purchased
by customers themselves.
