41
7 Commissioning
7.3 Status Indicators

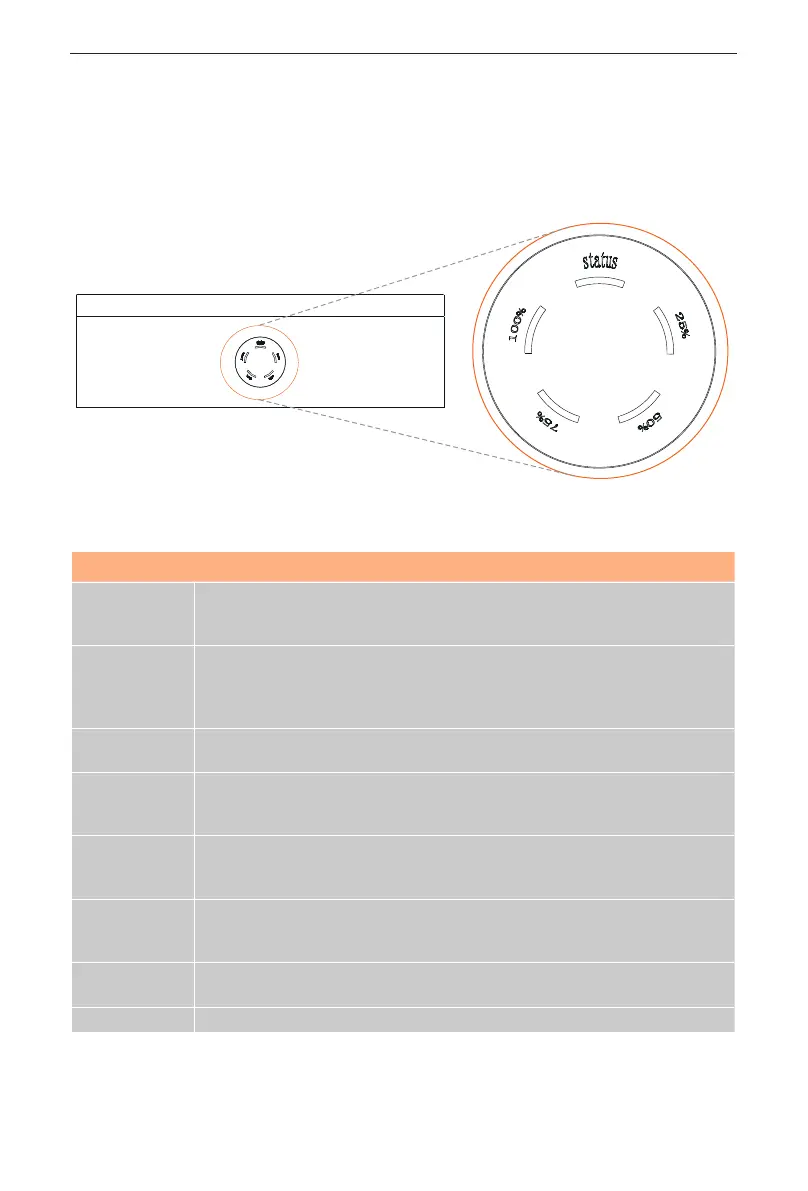

The power indicators show the current battery percentage. There are five
indicators on the BMS, one status light and four SOC power indicators. See figure
below:
SOC1
SOC2
SOC3
SOC4
For the derailed information on indicators, see the table below:
Status Description
Startup
After pressing the SWITCH button to start the system, the status light
flashes yellow for 0.1 second and turns off for 0.1 second, and all the
SOC power indicators are off.
Shutdown
After pressing and holding the SWITCH button for more than 1 second,
the status light comes on solid green light, and the SOC power indicators
flash blue in turn by clockwise. Then all lights are off within 2.4 seconds
after releasing the button.
Standby
The status light flashes green for 1 second and turns off for 4 seconds.
The SOC power indicators are off.
Charging
The status light comes on solid green light, and the state of SOC power
indicators depends on the actual situation. For details, refer to the
following “Table 1 Indicator information while charging“.
Discharging
The status light comes on solid green light, and the state of SOC power
indicators depends on the actual situation. For details, refer to the
following “Table 2 Indicator information while discharging“.
Fault
In case of failure, the status light will remain on solid red light for 10
minutes, and then such red light will flash for 1 second and then turn off
for 4 seconds.
Warning
In case of warning, the status light will flash yellow light for 1 second,
and then turn off for 4 seconds.
Black Start For details, refer to the part of “Black Start“.
