6 Wiring

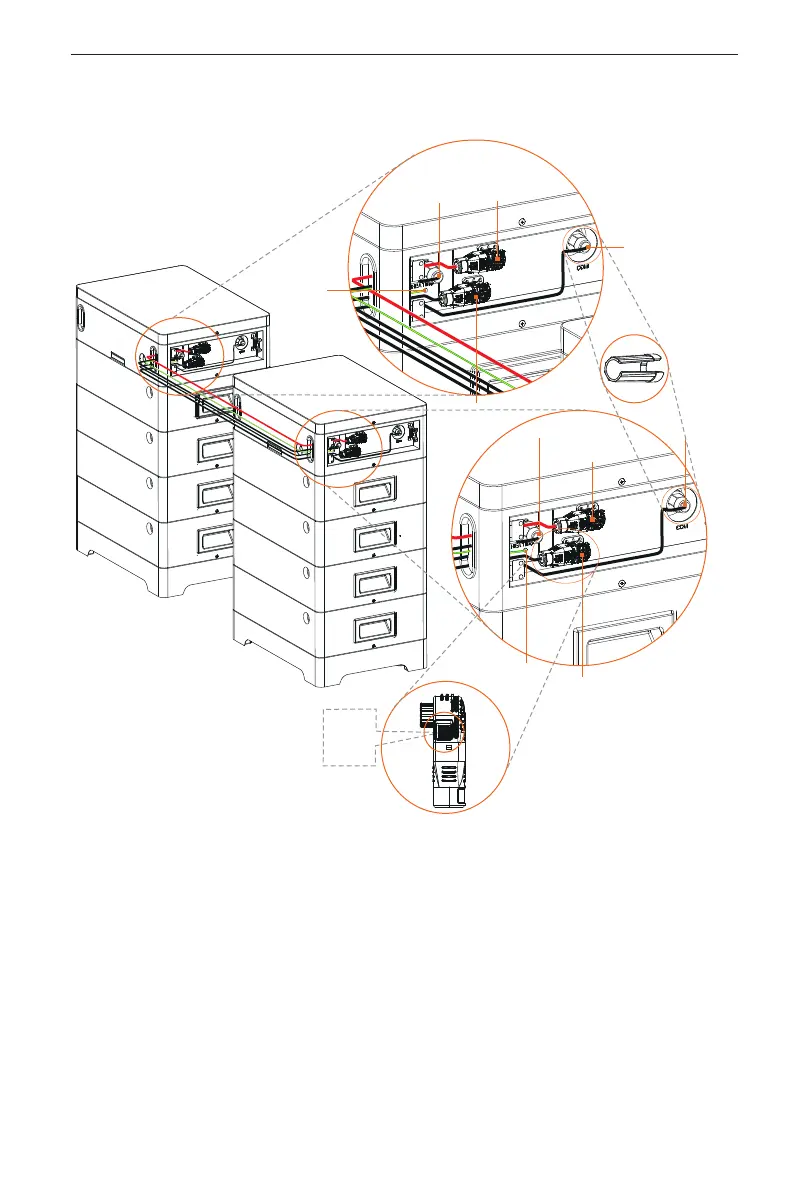

Wiring between BMS and Series Box

Heater cable

(HEAT port)

Power cable (red)

Communication

cable (COM port)

Grounding

cable

Rotation

wrench

Power cable (black)

Heater cable (HEAT port)

Power cable (red)

Communication

cable (COM port)

Grounding cable

Power cable

(black)

BMS

Series Box

Lock

button

*Note: A corrugated pipe with an inner diameter of over 45 mm is recommended

for use to keep cable insulation in place and avoid potential damages.
