6 Wiring

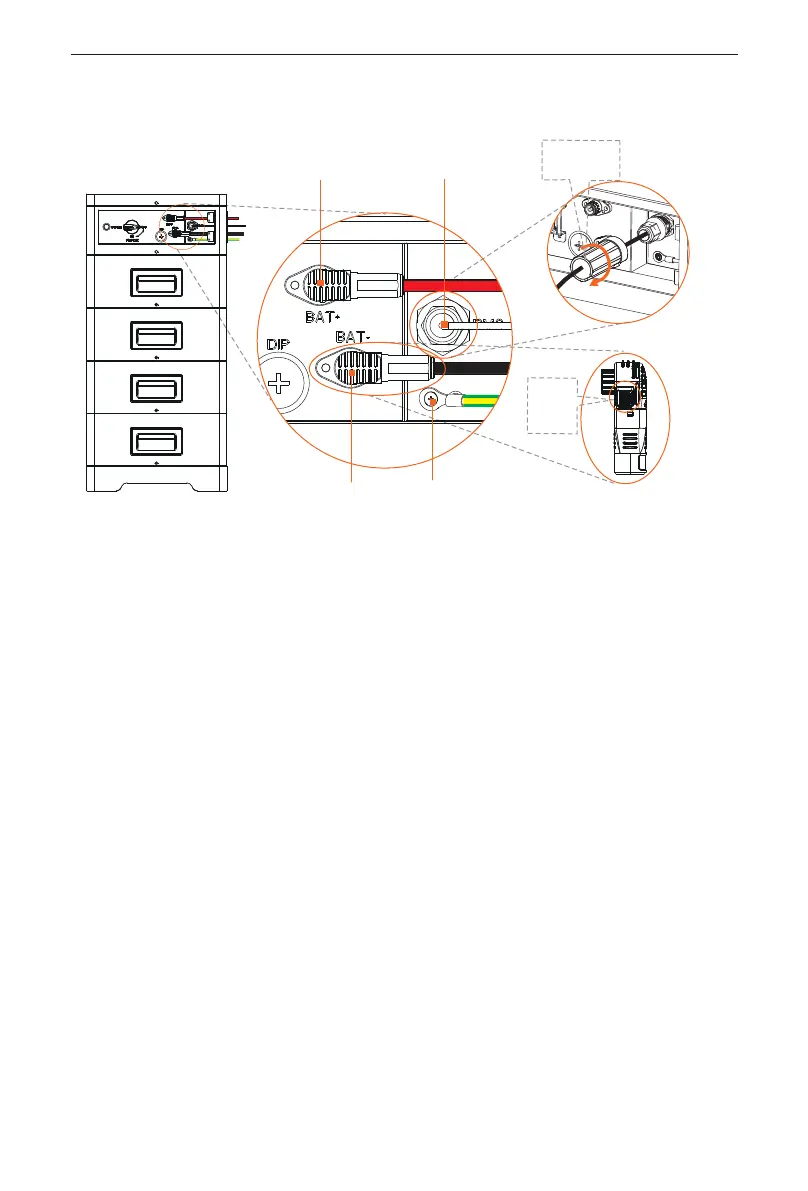

Right side of BMS
Power cable (red)
Communication
cable
Rotation
wrench
Lock
button
Power cable
(black)
Grounding
cable
This type of terminal is available
on both power cable
*Note:
■
Press and hold the lock button while unplugging the power cable, or it cannot
be pulled out.
■
Use the rotation wrench to tighten the communication cable, and remove it
after tightening.
