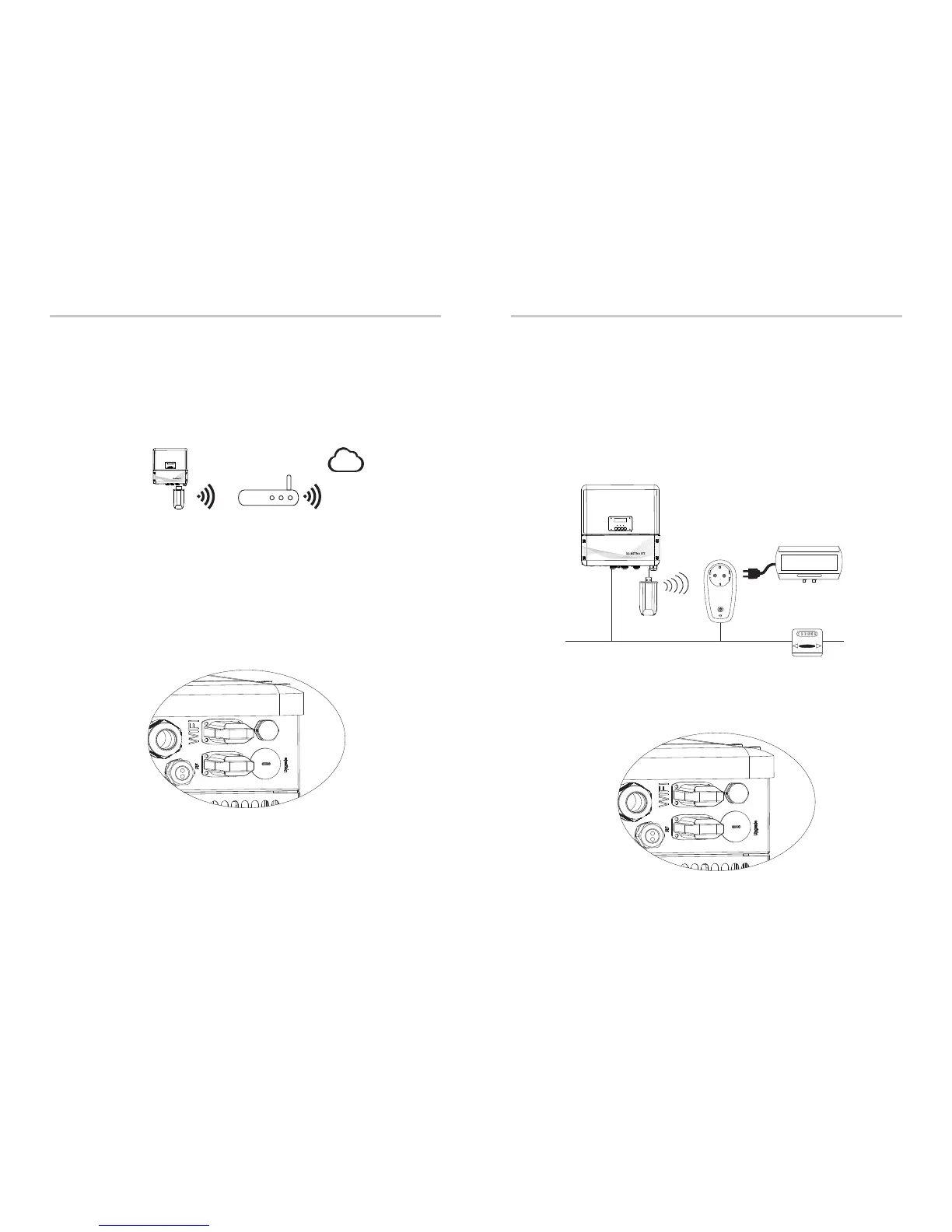

6.8 WiFi Connection(optional)
Inverter provides a WiFi port which can collect data from inverter and
transmit it to monitoring-website via a Pocket WiFi.
(Purchase the product from supplier if needed)
Ø
Diagram
Could
Router
WiFi Connection Steps:
Ø
Step3. Create a user account online.( Please check the Pocket WiFi user
manual for more details.)
Step1. Plug Pocket Wifi into “WiFi” port at the bottom of the inverter.
Step2. Build the connection between the inverter and router.
6.9 RF Connection(optional)
X1-Retro Fit inverter provides a RF( radio frequency) interface which control the
switch time of a designated load via an exteral Smart Plug (purchase the product
from supplier if needed.) so that the load mostly consumes energy and incurs
the lowest-possible energy costs during operation.
RF Connection Steps:
Ø
Grid
Meter
AC
emitter
receiver
designated load
Ø
Diagram
Please refer to the Smart Plug user manual for detailed connection steps.
