6.10 Inverter Manipulation
Ø
Start inverter after checking all below steps:
Ø
Check the inverter:
Step1. Check the status of indicators and LCD screen. The left indicator should
be blue and the indicator screen should display the main interface.
Note！
If the left indicator is not blue please check below the two points:
- All the connections are correct.
- All the external breakers are switched on.
Step2. There is a setting guide on the LCD screen if it is the first time to start up,
pls follow it. For specific setting, please refer to section 8 (Setting).
Step3. Set WiFi according to wifi user manual.
Step4. Operate “Self Test”. (applies to Italy only)
Ø
Self-test in accordance with CEI 0-21(applies to Italy only)
The self-test is only required for inverters, which are commissioned in Italy. The
Italian standard requires that all inverters feeding into the utility grid are equipped
with a self-test function in accordance with CEI 0-21. During the self-test, the
inverter will consecutively check the protection reaction times and values for
overvoltage, undervoltage, overfrequency and underfrequency.
Selftest function is available at any time, and the test report will show on the LCD
display for end-user.

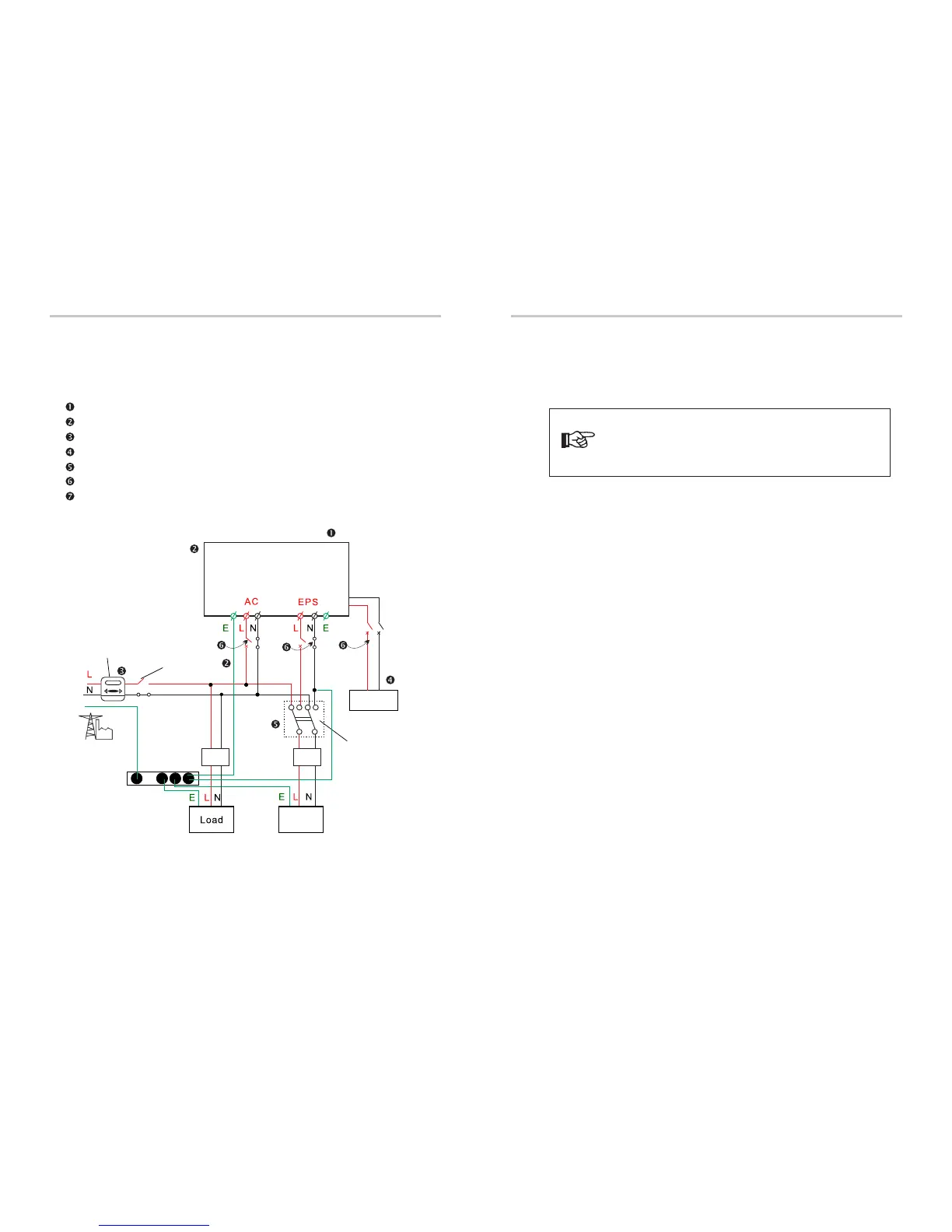

SolaX
meter
+
-
Battery
DPDT
E-BAR
Main switch
RCD RCD
PE
EPS
Load
Inverter
Turn on the AC switch, EPS switch and battery switch.
Make sure the external EPS contactor is connected well. (if needed)
Make sure the battery is connected well.
Make sure the meter is connected well.
Make sure all the AC wirings are completed.
Ensure the inverter fixed well on the wall.
Electrical ConnectionElectrical Connection
38
39
Press the “Enter” key for five seconds to exit Off Mode.(The mode is factory
defaulted as Off Mode)
Ø
Shut down the inverter :
Step1. Press the “Enter” key for five seconds to enter Off Mode.
Step2. Turn off the AC switch, EPS switch and battery switch.
Step3. Wait 5 min before you open the upper lid.(if in need of repair)
