8. Setting

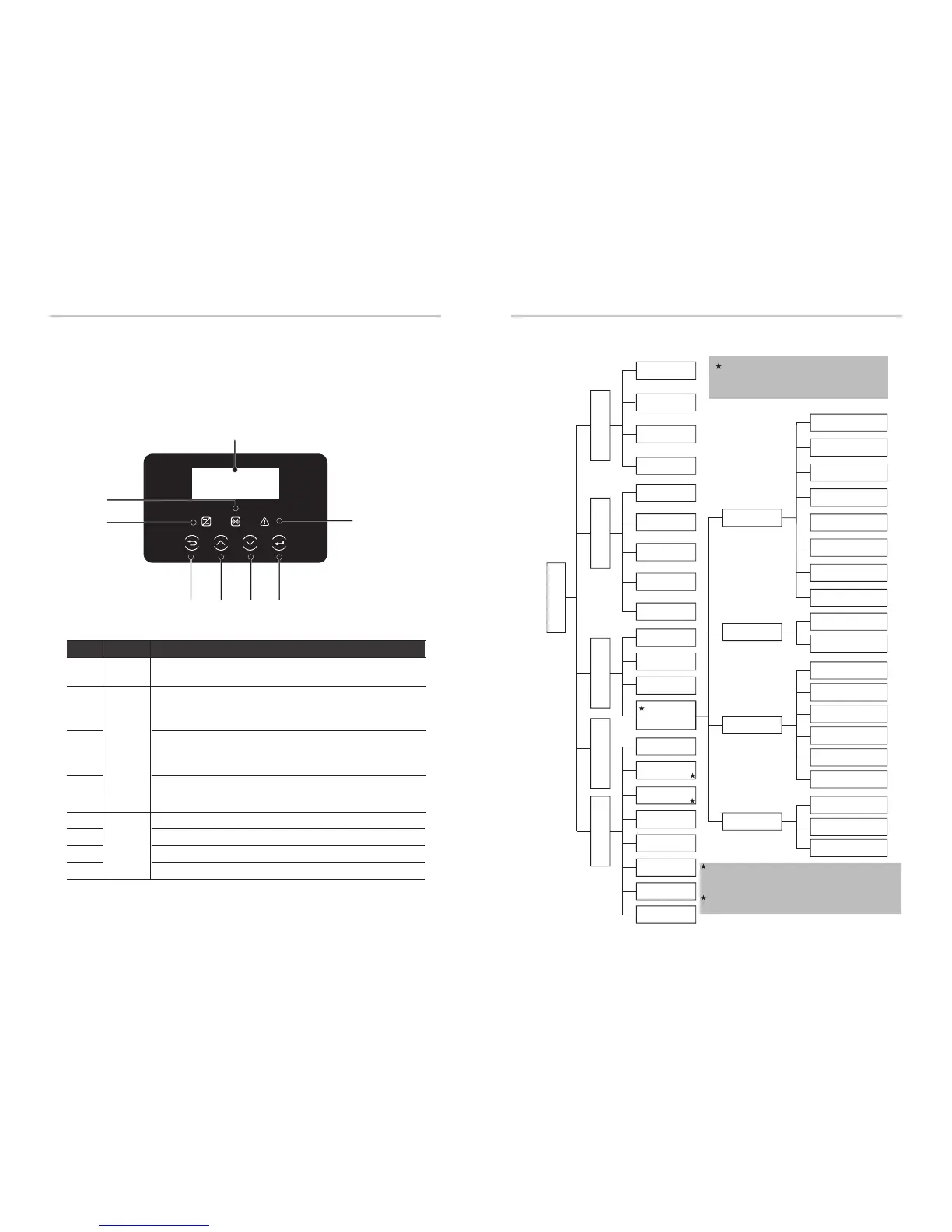

8.1 Control Panel
A
B
C
D
E F G H
Indicator
LED
Function
Button
Down button: Move cursor to downside or decrease value.
ESC button: Return from current interface or function.
OK button: Confirm the selection.
Up button: Move cursor to upside or increase value.
LCD
Screen
Display the information of the inverter.
Object
A
B
C
D
E
F
Description
G
H
Name
lit in blue: The inverter is in normal status or in EPS mode.
flash in blue: The inverter is in waiting status.
Off: The inverter is in fault status.
lit in green: The battery communication is normal.
flash in green: The battery is in idle mode.
Off: The communication between inverter and battery is failed.
lit in red: The inverter is in fault status.
Off: The inverter has no errors.
Setting Setting
42
43
Menu
Status
History
Setting
System Switch
About
Date Time
Advanced
Language
Ethernet
need password
On-grid
User-define
Battery
Reset
Charger
EPS
Reset Inv Energy
Reset Meter Energy
Reset Load
Reset Mgr EE
Config Guide
Work Mode
Relay Control
New Password
Reset Errorlog
Grid
Load
EPS
Charger
Inverter Yield
Error Logs
Meter Yield
Safety
Power Factor
Grid
Export Control
Self Test
8.2 Menu Structure
All advance setting can only be set
by the technician or the installer with
the installer password.
DRM Function
P(U ) Function
EPS Yield
Load Consume
Remote Control
Inverter SN
Register1 SN
Inverter Type
Inverter DSP1
Manager ARM
Internal Code
SystemRunTime
Register2 SN
Register1 SN: it indicates the serial number of the
external monitoring devices,such as pocket WiFi,
pocket LAN and pocket GPRS.
Register2 SN: it indicates the serial number of built
-in Ethernet.
To Next Page
