Note: BAT port, not PV port!
Note: The positive and negative
wires of the battery are not
allowed to be reversed!
Spring
BMS port definition
1 2
3
4
5
6 7 8
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
Spring
Crack
Ø Communication connection
BMS_CANH
GNDBAT_TEMP GND
BMS_CANL
2
3 4
5
6 7 81
PIN
X BMS_485A BMS_485B
Electrical Connection
Electrical Connection
Definition
48
49

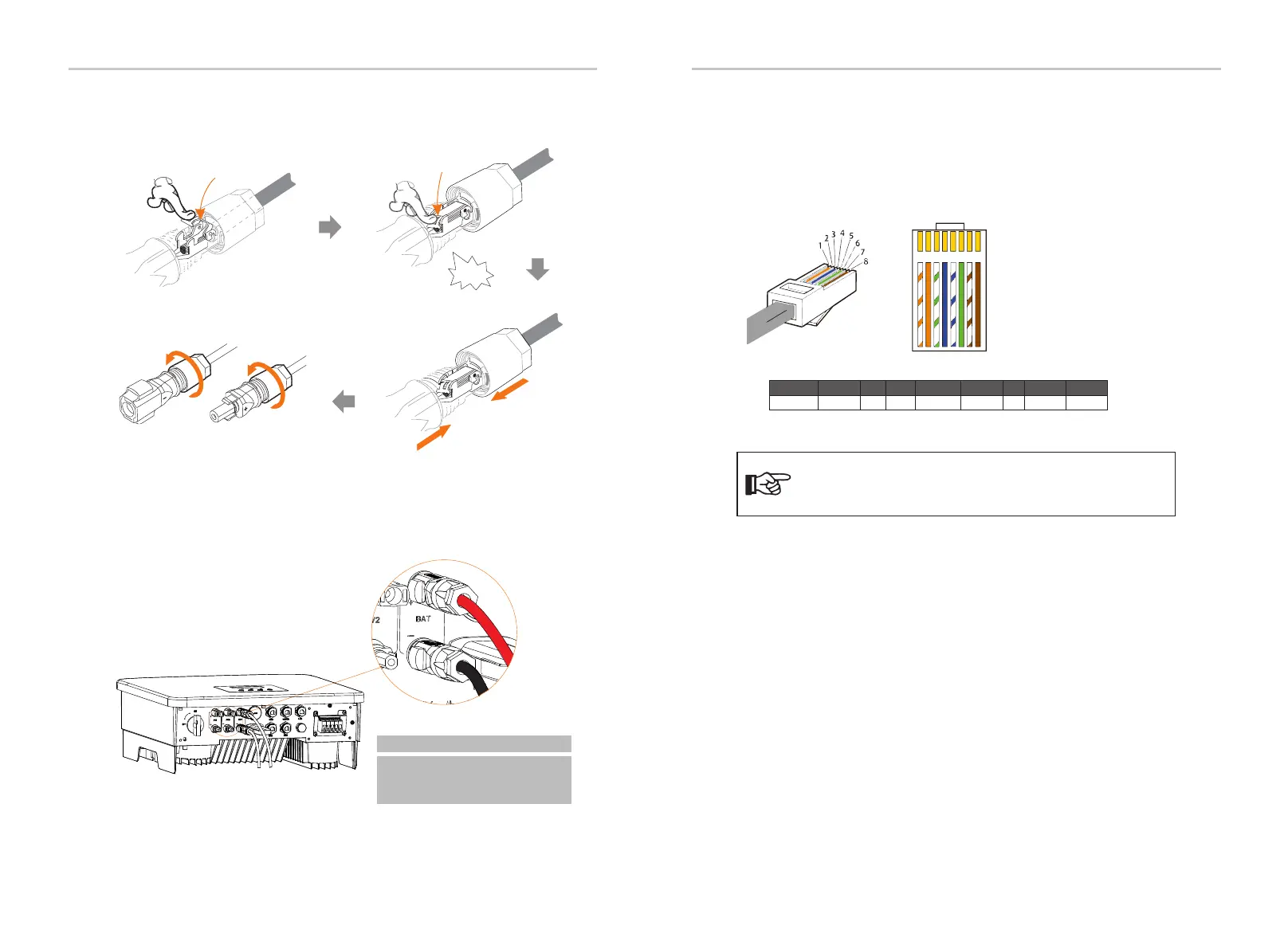

Step 4. Press down on the spring by hand, you can hear a click sound,
then push the ends together, and tighten the screw joints.
Step 5. Insert the battery power lines into the corresponding BAT port (+), (-)
of the inverter.
The communication interface between the inverter and the battery uses
the waterproof connector with RJ45.
Notice!
After the BMS communication between the battery and
the inverter is finished, the battery will work normally.
