Connection Steps
a) Check the grid voltage and compare with the permissive voltage range (refer
to technical data).
b) Disconnect the circuit-breaker from all the phases and secure against re-
connection.

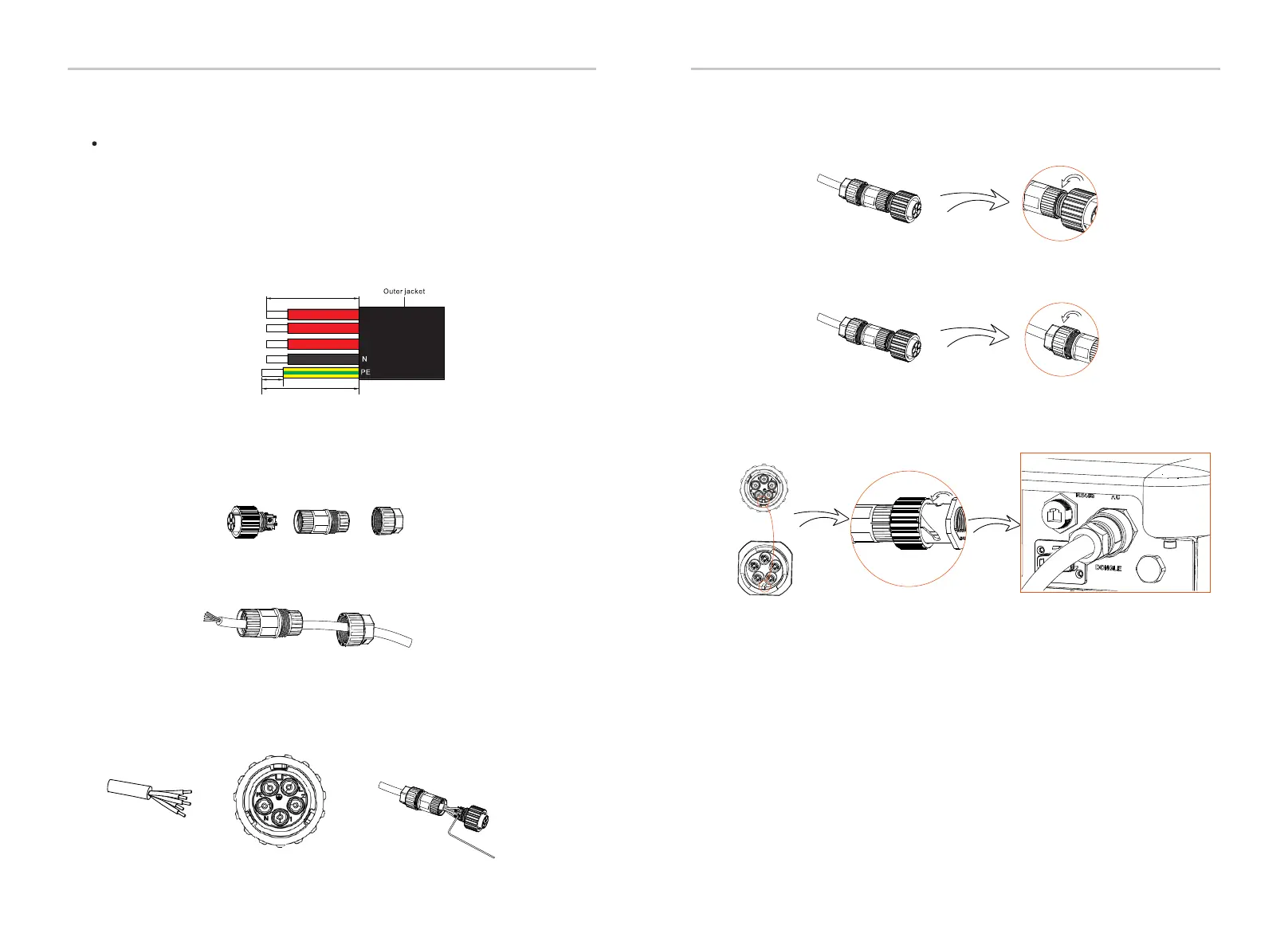

c) Strip the wires:
- Strip all the wires to 52.5 mm and the PE wire to 55 mm.
- Use the stripping pliers to strip 12 mm of insulation from wire ends as
below.
d) Seperate the AC plug into three parts as below.
- Hold the middle part of the male insert, rotate the back shell to
loosen it, and detach it from male insert.
- Remove the cable nut (with rubber insert) from the back shell.
e) Slide the cable nut and then back shell onto the cable.
f ) Insert the stripped end of the five wires into the appropriate holes of the
male insert (The N wire and PE wire must be connected correctly), and then
tighten each screw to tight each wire in place (Use the accompanying inner
hexagon spanner).
g) Tighten the screw of the back shell and the male insert.
h) Tighten the screw of the back shell and the cable nut.
L1
L2
L3
i) Align the groove of male terminal with the convex of female terminal,
then tighten the bush in male terminal.
55 mm
52.5 mm
12 mm
male insert back shell cable nut
Electrical Connections Electrical Connections
24 25
