This section describes the requirements of the European low voltage
regulations, including safety instructions and system licensing conditions, the
user must comply with these regulations when installing, operating, and
maintaining the inverter, otherwise personal injury or death may occur, and
the inverter will be damaged. Please read the manual carefully when
operating the inverter. If you do not understand "Danger", "Warning",
"Caution" and the descriptions in the manual, please contact the
manufacturer or service agent before installing and operating the inverter.
Make sure that the whole system complies with the requirements of
EC(2014/35/EU, 2014/30/EU, etc.) before starting the module (i.e. to start the
operation).
Standard of 2014/35/EU (LVD)
EN IEC 62109-1; EN IEC 62109-2
EN 62477-1
Standard of 2014/30/EU (EMC)
EN IEC 61000-6-1; EN IEC 61000-6-2;
EN IEC 61000-6-3; EN IEC 61000-6-4;
EN IEC 61000-3-2; EN 61000-3-3;
EN IEC 61000-3-11; EN 61000-3-12
EN 55011
The assembly shall be installed in accordance with the statutory wiring rules.
Install and configure the system in accordance with safety rules, including the
use of specified wiring methods. The installation of the system can only be
done by professional assemblers who are familiar with safety requirements
and EMC. The assembler shall ensure that the system complies with the
relevant national laws.
The individual subassembly of the system shall be interconnected by means
of the wiring methods outlined in national/international such as the national
electric code (NFPA) No. 70 or VDE regulation 4105.
3 Introduction
3.1 Basic Features
Thanks for your purchasing with the series inverter. The series inverter is
one of the finest inverters on the market today, incorporating state-of-the-
art technology, high reliability, and convenient control features.
Advanced DSP control technology.
Utilize the latest high-efficiency power component.
Optimal MPPT technology.
- Two independent MPP Tracking.
- Wide MPPT input range.
Advanced anti-islanding solutions.
IP66 protection level.
Max. efficiency up to 98.3%. EU efficiency up to 97.8%.
THDi<3%.
Safety & Reliability: transformerless design with software and hardware
protection.
Export control.
Power factor regulation.
Friendly HMI.
- LED status indications.
- LCD display technical data, human-machine interaction through press
key.
- PC remote control.
- Upgrade through USB interface.
- WiFi/LAN/4G dongle monitoring.
- Energy conservation.

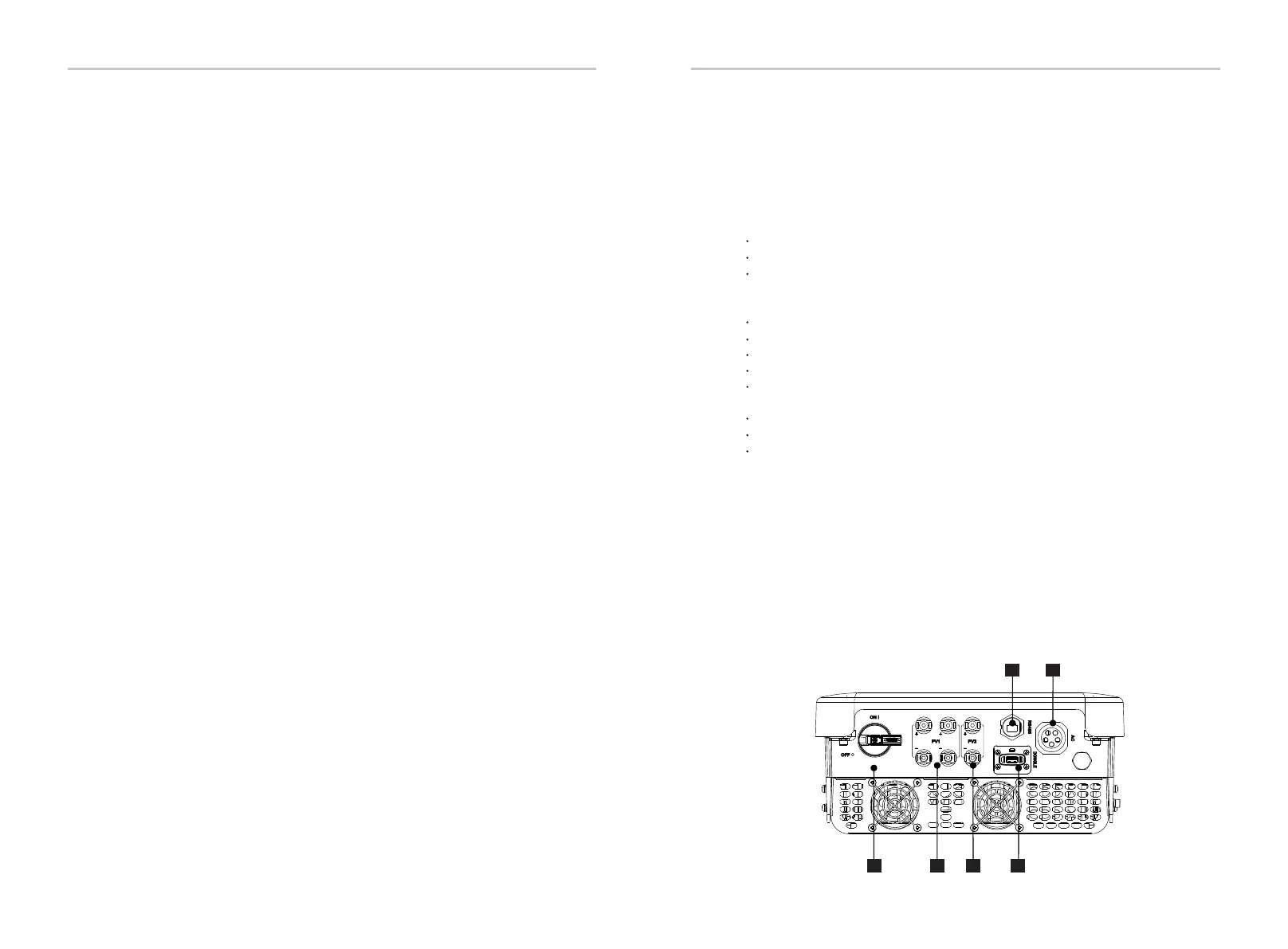

3.2 Terminals of the Inverter
Safety Introduction
A B
C
FE
D
