SolaX Power X3-MIC G2 Series User Manual

• level 1
a) The first line displays the parameters(Power, , Today and Total) and the Pgrid
values.
b) The second line shows the running status.
“Power” means the timely output power;
“Pgrid” means the power export to or import from the grid; (Positive value
means the energy feeds into the grid, negative value means the energy used
from the grid).
“Today” means the power generated within the day.
“Total” means the power generated until now.
• level 2
Long press any first-level parameter can enter the second-level “Status”
parameter interface.
The user can also see other parameters, such as the “Language”, “Date Time”,
“Settings” (need password), “Meter energy”, “Error Logs” of the inverter, and “About”
(the user can watch the information of the inverter).
• level 3
Long press the second-level parameter can enter the corresponding third-
level parameter interface.
a) Status: The user can see the U/I/P parameters of the grid and the PV, such as
the “Ugrid”, “Igrid”, “PF value” of the grid, and the “Usolar”, “Isolar” and “Psolar” of the
PV.
b) Language: This inverter provides several languages for the customer to
choose.
c) Date Time: The user can set the date and time of the inverter.
d) Settings: Entering the installer password, the LCD screen will show the next
page of congurable function parameters.
(1) Safety: The user can set the right safety standard here.
(2) Export Control: With this function the inverter can control energy exported
to the grid. Whether having this function is based on user’s wishes.
(3) (This function is mainly for Australia.) : User can choose DRM Function
whether using the DRM function or not.
……
7.2 LCD Display

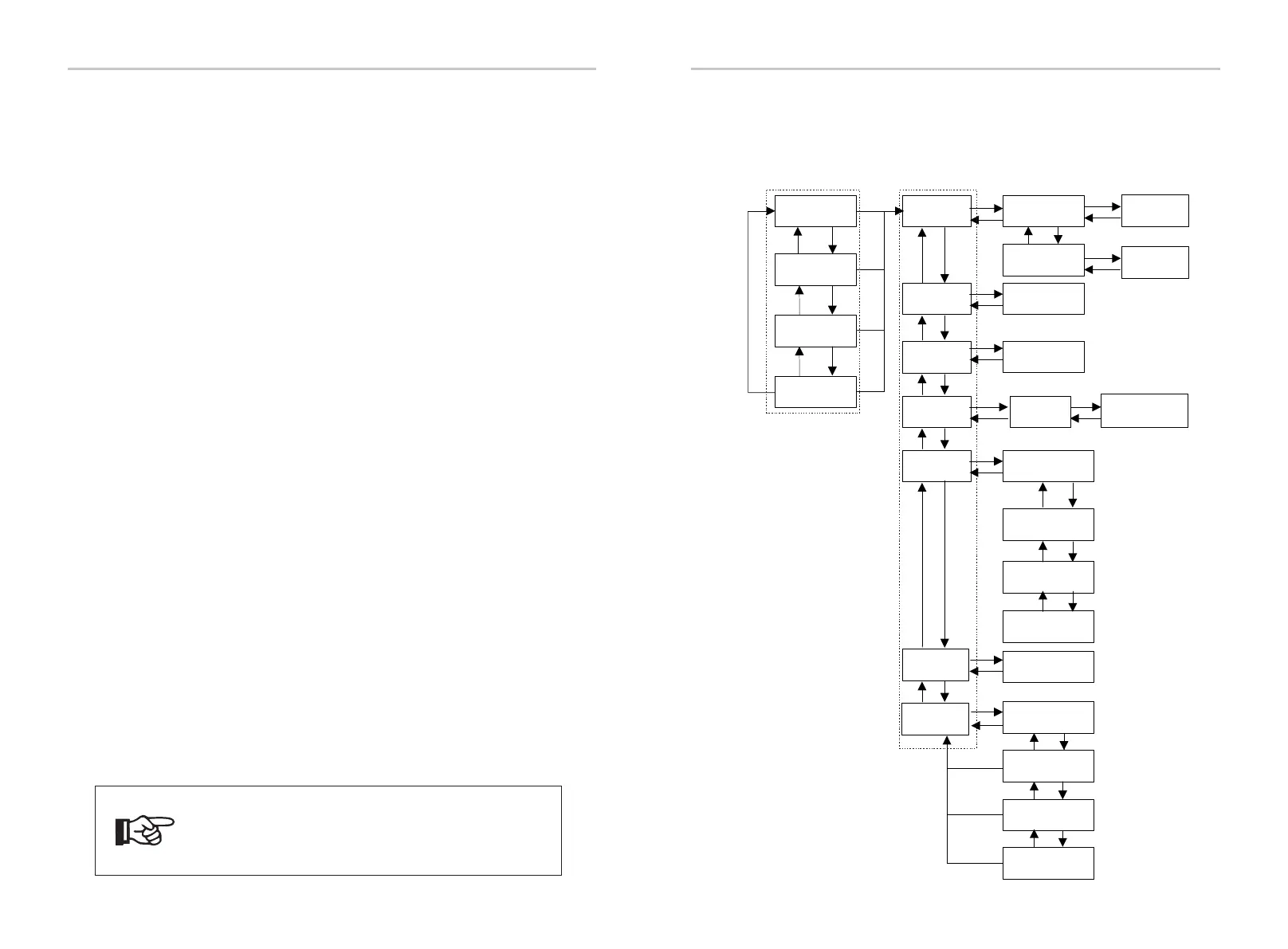

7.3 LCD Function & Operation
Note!
The user should confirm any function setting by long press the
“Up” button. If no operation is performed, the LCD screen would
return to the home interface within 27 seconds in which case the
function isn’t set successfully.
Power 0W
Normal
Today 0.0kWh
Normal
>Status
>Grid 0.0V
>Language
>Settings
>Error Logs
>About
Master:
x.xx
Manager:
x.xx
↓
0 0 0 0
1:xxYxxxDxxH
Error1
>Safety
Export Control
Enter
Total 0.0kWh
Normal
Back
Product SN:
Up
Down
Back
**Go to next page
**
>Ua 0.0V
*
*User can also see
the U, I & P of the PV.
(U1,I1,P1,U2,I2,P2)
Back
Back
Up
Down
Up
Down
Up
Down
Up
Down
Up
Down
Up
Down
Down
Enter
Enter
Enter
Enter
Back
Enter
Back
Enter
Back
Up
Down
Enter
Back
***Only six latest
level 1 level 2 level 3
***
>Meter Energy
Today Import:
0.0kWh
Up
Down
Enter
Back
Internal Code:
A:x.xx D:x.xx
Up
Down
Pgrid 0W
Normal
Up
Down
Enter
>DateTime
Up
Down
Total Import:
0.0kWh
Today Export:
0.0kWh
Total Export:
0.0kWh
Up
Down
Up
Down
Up
Down
>Solar 0.0V
Up
Down
>2021-01-01
00:00
Enter
Back
>U1 0.0V
*
......
..................
errors were kept
>English
German
......
Operation Method Operation Method
XXX XXXXXXXXXXX
*User can see the U, I
& F of the grid.
(Ua,Ia,Fa,Ub,Ib,Fb,Uc
,Ic,Fc,Pout,Pgrid)
38 39
Enter
Back
Enter
Back
Enter
Back
