ORIGIN Installation Guide
Making Connections
20

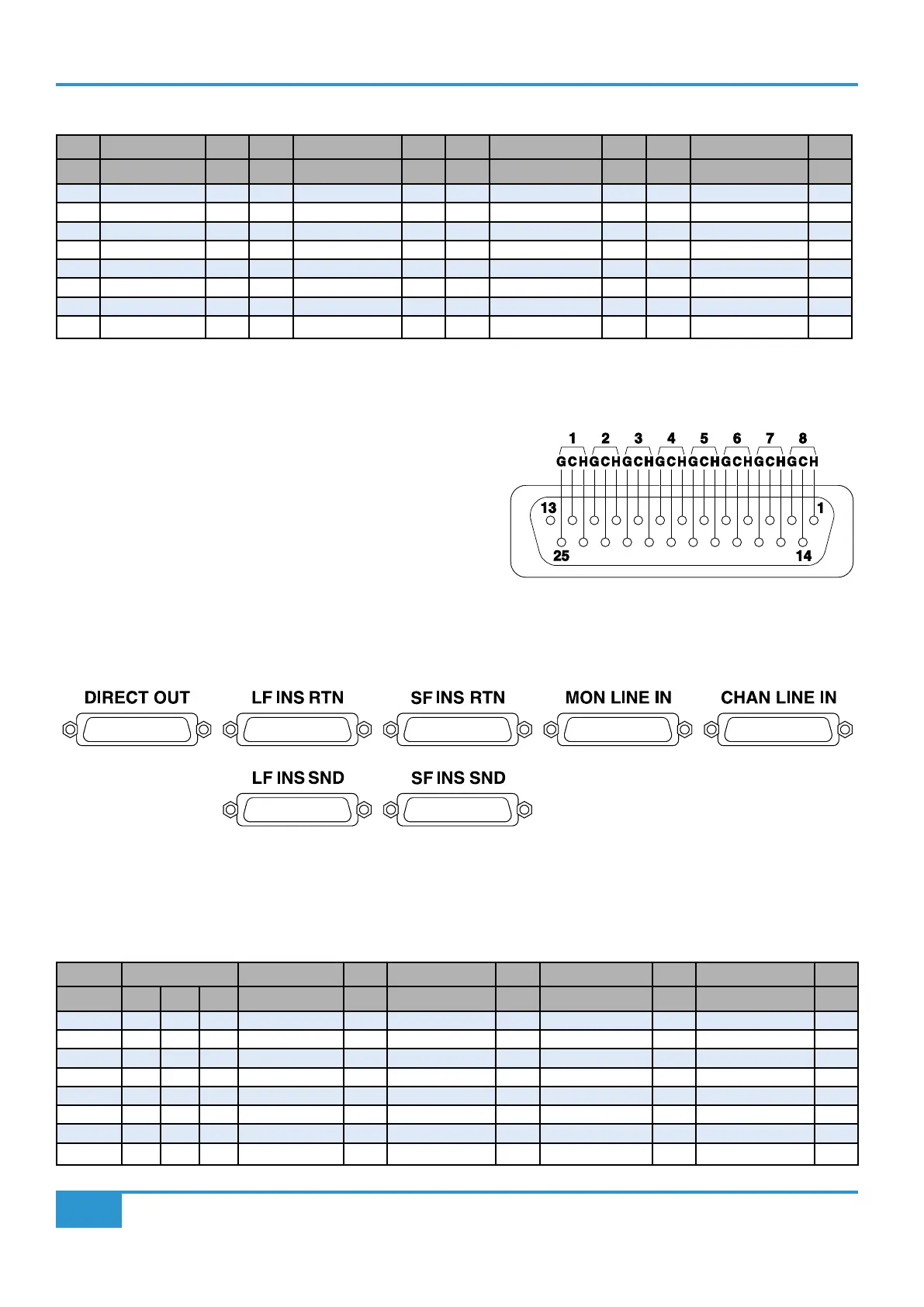

Channel DB-25 Pinouts
**NOTE: Patch Reference on following tables only applies if using suggested standard patch layout on Page 26
Chan (Channel) Path Line Inputs
25 Way F D-type Patch Patch Patch Patch
Cct# Hot Cold Scrn Chan Line IN 1-8 Ref** Chan Line IN 9-16 Ref** Chan Line IN 17-24 Ref** Chan Line IN 25-32 Ref**
1 24 12 25 Ch Line IP 1
D1
Ch Line IP 9
D9
Ch Line IP 17
D17
Ch Line IP 25
D25
2 10 23 11 Ch Line IP 2
D2
Ch Line IP 10
D10
Ch Line IP 18
D18
Ch Line IP 26
D26
3 21 9 22 Ch Line IP 3
D3
Ch Line IP 11
D11
Ch Line IP 19
D19
Ch Line IP 27
D27
4 7 20 8 Ch Line IP 4
D4
Ch Line IP 12
D12
Ch Line IP 20
D20
Ch Line IP 28
D28
5 18 6 19 Ch Line IP 5
D5
Ch Line IP 13
D13
Ch Line IP 21
D21
Ch Line IP 29
D29
6 4 17 5 Ch Line IP 6
D6
Ch Line IP 14
D14
Ch Line IP 22
D22
Ch Line IP 30
D30
7 15 3 16 Ch Line IP 7
D7
Ch Line IP 15
D15
Ch Line IP 23
D23
Ch Line IP 31
D31
8 1 14 2 Ch Line IP 8
D8
Ch Line IP 16
D16
Ch Line IP 24
D24
Ch Line IP 32
D32
Channel DB-25 Connectors
The Large Fader and Small Fader Path line level audio connections
are on the rear panel of the console. Each connector set of seven
DB-25 connectors carries the fully balanced audio for eight channels,
laid out on the rear of the console as shown on the previous page, so
for 32 channels there are four sets of seven DB-25 connectors. Each
connector uses the common AES59 format for analogue audio DB-25
connectors, the pinout is shown on the right.
The physical layout of the seven connectors is shown below as viewed
when looking at the rear of the console.
DB-25 Line Level Audio Connectors for Channels 1-8, 9-16, 17-24, 25-32 (4 sets of seven female connectors)
Chan (Channel) Path Mic XLR Inputs
Patch Patch Patch Patch
XLR# Chan Mic IN 1-8 Ref** XLR# Chan Mic IN 9-16 Ref** XLR# Chan Mic IN 17-24 Ref** XLR# Chan Mic IN 25-32 Ref**
1 Chan Mic IP 1
B1 9
Chan Mic IP 9
B9 17
Chan Mic IP 17
B17 25
Chan Mic IP 25
B25
2 Chan Mic IP 2
B2 10
Chan Mic IP 10
B10 18
Chan Mic IP 18
B18 26
Chan Mic IP 26
B26
3 Chan Mic IP 3
B3 11
Chan Mic IP 11
B11 19
Chan Mic IP 19
B19 27
Chan Mic IP 27
B27
4 Chan Mic IP 4
B4 12
Chan Mic IP 12
B12 20
Chan Mic IP 20
B20 28
Chan Mic IP 28
B28
5 Chan Mic IP 5
B5 13
Chan Mic IP 13
B13 21
Chan Mic IP 21
B21 29
Chan Mic IP 29
B29
6 Chan Mic IP 6
B6 14
Chan Mic IP 14
B14 22
Chan Mic IP 22
B22 30
Chan Mic IP 30
B30
7 Chan Mic IP 7
B7 15
Chan Mic IP 15
B15 23
Chan Mic IP 23
B23 31
Chan Mic IP 31
B31
8 Chan Mic IP 8
B8 16
Chan Mic IP 16
B16 24
Chan Mic IP 24
B24 32
Chan Mic IP 32
B32
