Rear Panel

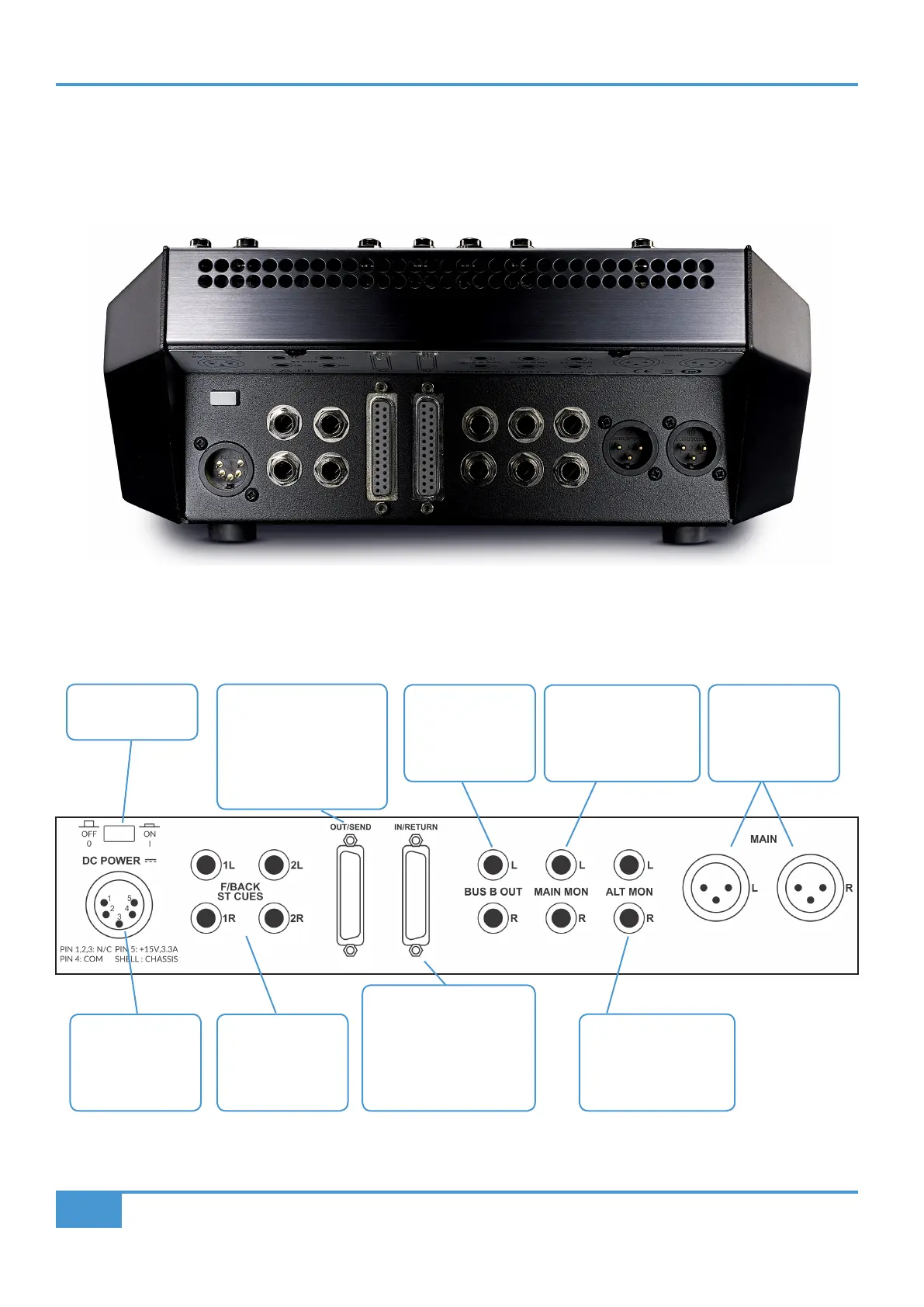

The rear panel of SiX is shown below. The connectors are identied on a panel that is tted to the face above the connector panel.
DC Power Switch
Foldback/Stereo
Cue 1 & 2 Outputs
(Balanced TRS
1/4" Jack)
Channel and Main
Balanced Insert Sends
Monitor OP Parallel
(See Appendix A for
Pinout)
Channel and Main
Balanced Insert Returns
Alternate Input 1 & 2
(See Appendix A for
Pinout)
Bus B Outputs
(Balanced TRS
1/4" Jack)
Alternate Monitor
Outputs
(Balanced TRS 1/4"
Jack)
Main Bus Outputs
(Balanced Male
XLR, Pin 2 Hot)
Main Monitor Outputs
(Balanced TRS 1/4"
Jack)
DC Power
Connector
(5 Pin XLR)

Solid State Logic SiX Specifications

General

Type	Analog Mixer
Channels	6
EQ	2-band Channel EQ
Compressor	Yes, on Mono Channels
Talkback	Yes
EQ Bands	2
Aux Sends	2
Bus Compressor	Yes, on Main Mix Bus
Phantom Power	48V
Headphone Output	2
Monitor Output	2
Main Output	2
USB Audio Interface	2x2 USB Interface
