Solid State Logic SiX User Manual

SiX User Guide
Detailed Description
14
Switching the Stereo Cues from Pre to Post fader
By default, both Stereo Cue sends 1 and 2 are sourced pre-fader in the mono and stereo channels. The CUE POST switch at the
top of the Foldback Master section allows each CUE send to be sourced post fader (pre balance) to the Stereo Cue mixes.
Artist Cue Mixes
The Foldback features of SiX are designed to provide a separate artist mix from the engineer’s monitoring and headphone feed
using the Mono and Stereo Channel’s Cue Send buses. Typically, the fully balanced outputs will be connected to a dedicated
Headphone amplier or Cue system, although there is enough level to drive many headphones directly with suitable wiring
(balanced left and right outputs wired to unbalanced left/right headphone connection).
The EXT 1 and EXT 2 switches in the Foldback master section provide a simple way to feed an external source to the Foldback
outputs. These are typically used when it would be useful to play something directly to the artist - for example a rough mix from a
phone/DAW.

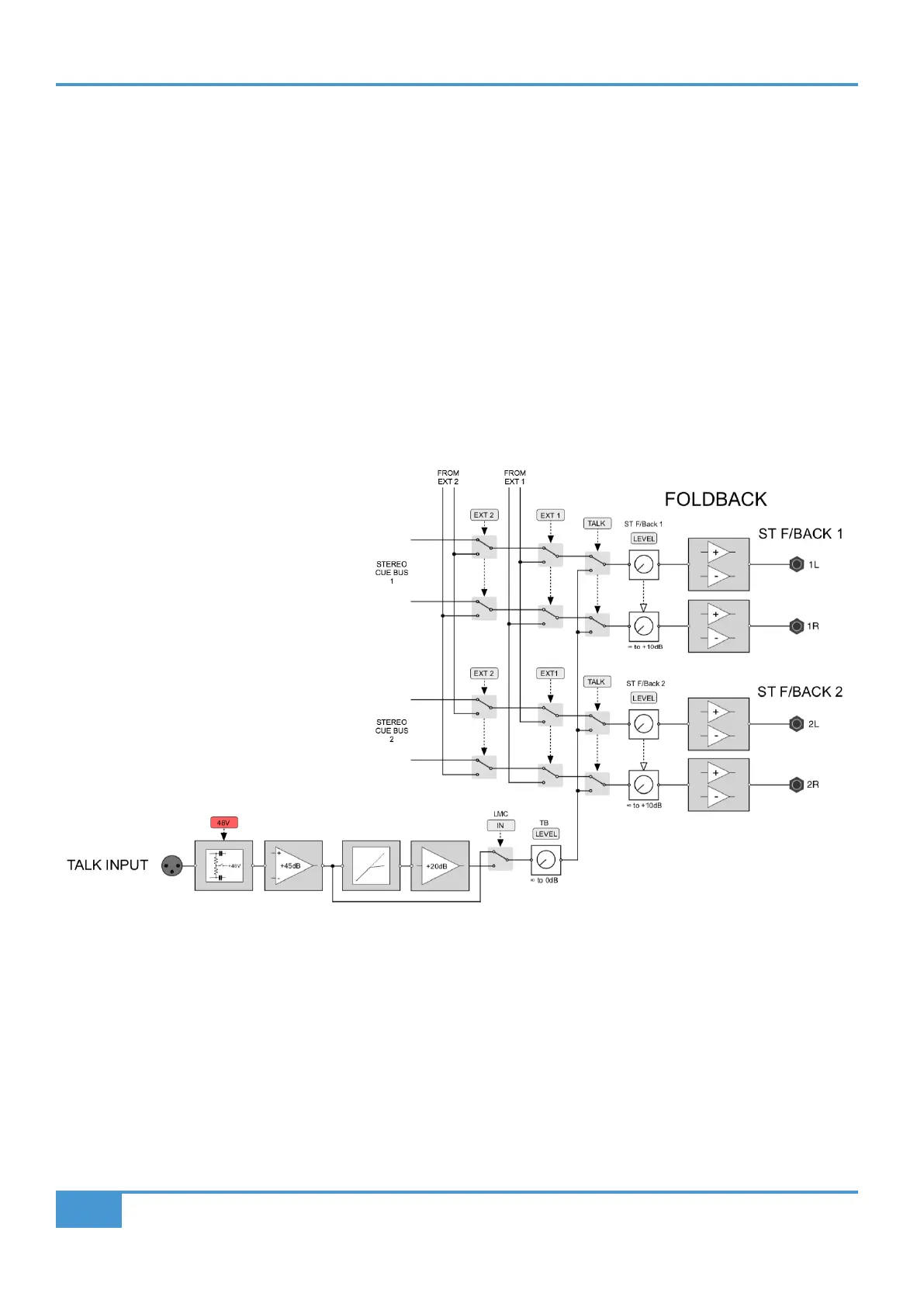

SiX Foldback Block Diagram
Foldback Outputs as Effects Sends
It is perfectly feasible to use the Foldback Outputs as stereo feeds to external effects processors such as delays and reverbs.
Typically, the processor’s output would be connected to one of the External returns, then summed to the main bus using the
External summing switches to the Main Bus above the Main Fader.

Solid State Logic SiX Specifications

General

Type	Analog Mixer
Channels	6
EQ	2-band Channel EQ
Compressor	Yes, on Mono Channels
Talkback	Yes
EQ Bands	2
Aux Sends	2
Bus Compressor	Yes, on Main Mix Bus
Phantom Power	48V
Headphone Output	2
Monitor Output	2
Main Output	2
USB Audio Interface	2x2 USB Interface
