R. SIDE INDICATOR SWITCH
This switch is used for indicating vehicle turn either left or right. Toggle the switch(R) left or
right for respective indication.

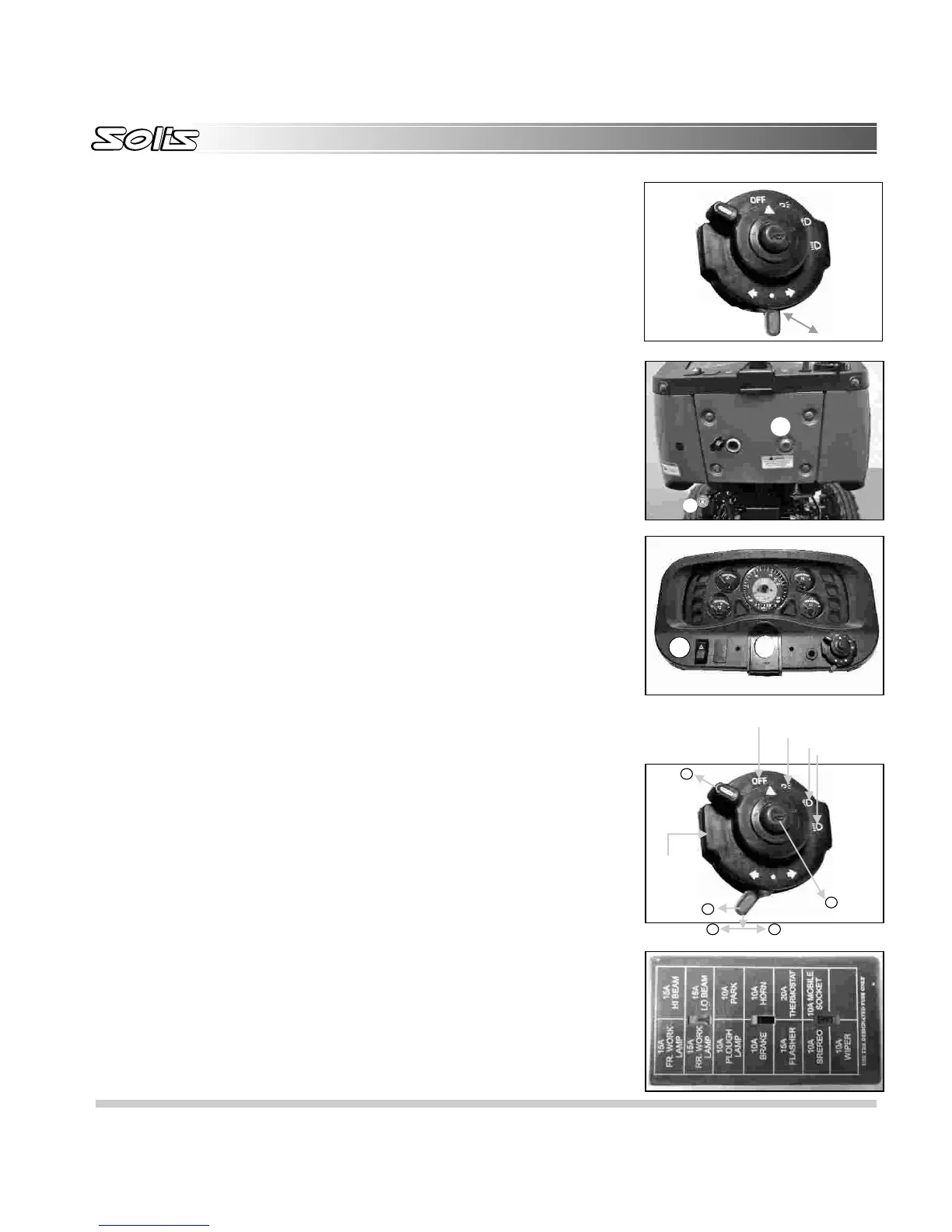

1.2 ELECTRICAL CONTROLS (WITH COMBINATION SWITCH)
1. Starting key switch.
2. Hazard light switch.
3. Engine Stop knob.
4. Combination switch.
5. Fuse Box.
1I. STARTING KEY SWITCH: Insert the key into the starting switch and rotate it in clockwise
direction until engine starts. Do not keep the starter engaged for more than ten second. If
engine stalls & falters in starting, wait 5 to 10 seconds before re-enganging the starter,
otherwise you may damage it. Refer Page No. 22 for cold starting instruction for starting
engine in cold weather.
2. HAZARD LIGHT SWITCH: push this switch to blink all indicators in hazard situation to
alert Purpose of the hazard switch is as follows.
1. All the four lights blinking Indicates that driver has no control on tractor.
2 Mechanical defects in the tractor.
3. The driver is in distress maybe calling for a help or coming vehicle should take care of
it self.
3. ENGINE STOP KNOB: To stop the engine release the accelerator lever and pull the
stopping knob. After stopping the engine push it back to its original position.
4. COMBINATION SWITCH
R. SIDE INDICATOR SWITCH: This switch is used for indicating the vehicle turn. Move turn
signal lever left to indicate left (L) hand turn or right (R) for right hand turn. Indicator lights n
hour meter will flash according.
Q. HORN SWITCH: This switch is used for blowing the horn.
P. HEAD LIGHT AND PARKING LIGHT SWITCH: This switch has four positions in
clockwise direction.
1st position : All lights are off.
2nd position (clockwise) : Parking lights, Instrument panel lights, tail lights will glow.
3rd position (clockwise) : Head lights (low beam), Instrument panel lights, Parking
lights, tail light will glow.
4th position (clockwise) : Head lights (High beam) Instrument panel lights, Parking
lights, tail light will glow.
V. FUSE BOX: Fuse box is mounted on the dashboard. Remove the cover of fuse box by
pressing the fuse box in lateral direction, as it will come of from locking clamp . Replace the
fuse whichever need replacement (Never install a wire instead of proper fuse. Use only
specified fuses) as mentioned on box.
R
2
1
3
4
P
1st
2nd
3rd
4th
Q
R
L R
40
Operator Manual
