SOLIS 50 User Manual

70
Operator Manual
ACTUATOR
ASSY. (7)
ACTUATOR
ASSY. (7)
EXTERNAL
CIRCLIP (5)
EXTERNAL
CIRCLIP (5)
MOUNTING BR
ACKET (9)
MOUNTING BR
ACKET (9)
SPOOL- BRAKE
VALVE (1)
SPOOL- BRAKE
VALVE (1)
SPHERICAL PUSHING PIN (2)
WITH SPRING (3)
AND CIRCLIP (4)
SPHERICAL PUSHING PIN (2)
WITH SPRING (3)
AND CIRCLIP (4)
ACTUATOR
ADJUSTOR (8)
ACTUATOR
ADJUSTOR (8)
BRAKE
PEDAL RIGHT (6)
BRAKE
PEDAL RIGHT (6)

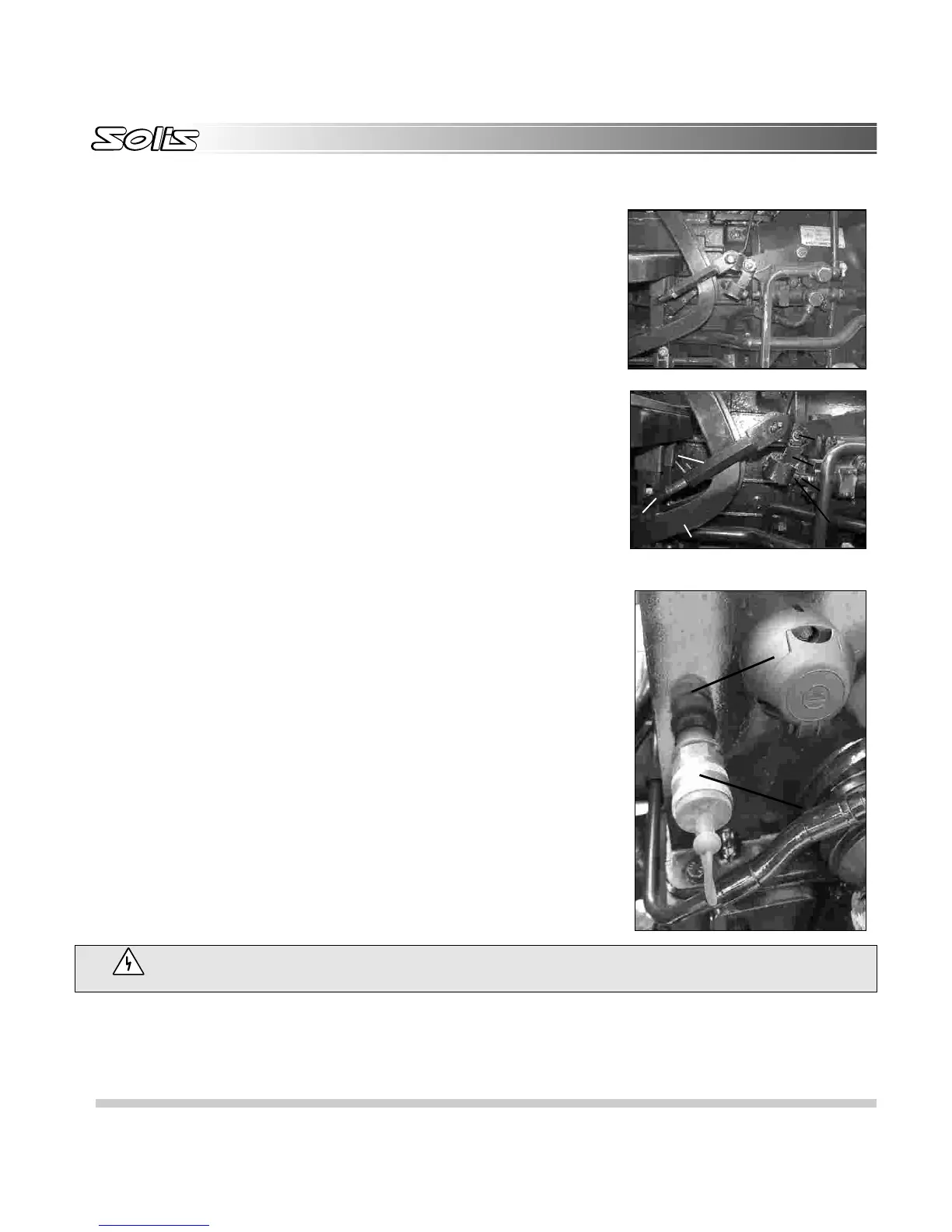

7.6 HYDRAULIC TRAILER BRAKE (If Equipped)
This is mounted on RH side of tractor in front of brake pedal. This is provided to operate
the Hydraulic bakes of trailer. It is actuated by the braked pedals of the tractors.
The adjuster nut can be adjusted for sensitivity of the trailer valve.
7.7 HYDRAULIC TRAILER BRAKE FREE PLAY ADJUSTMENT
Adjust the Actuator adjustor in such a way ''that Actuator adjustor
pin remain at lower side in slot of brake pedal and spherical pushing
pin should remain in touch with Spool of Brake valve and finally
fit split pin and plain washer after adjustment.
Note : During adjustment brake pedal should be in unoperating
condition as well as there should not be any pressure on
Spool of Brake valve.
7.8 HYDRAULIC TRAILER BRAKE COUPLER
The Coupler is provided at the rear end of the tractor. The Trailer male Couple Should
be attached at left side below seven pin socket with the female tractor coupler while the
trailer is being towed on the road.
Adaptor Adaptor
Seven pin socket Seven pin socket
Always de couple the hydraulic trailer brake coupler before unhitching the trailer.
CAUTION

SOLIS 50 Specifications

General

Cylinders	3
Steering	Power Steering
Engine Type	Diesel
Hydraulic Remotes	2
Brakes	Oil Immersed
