Inverted
××
.11..10.

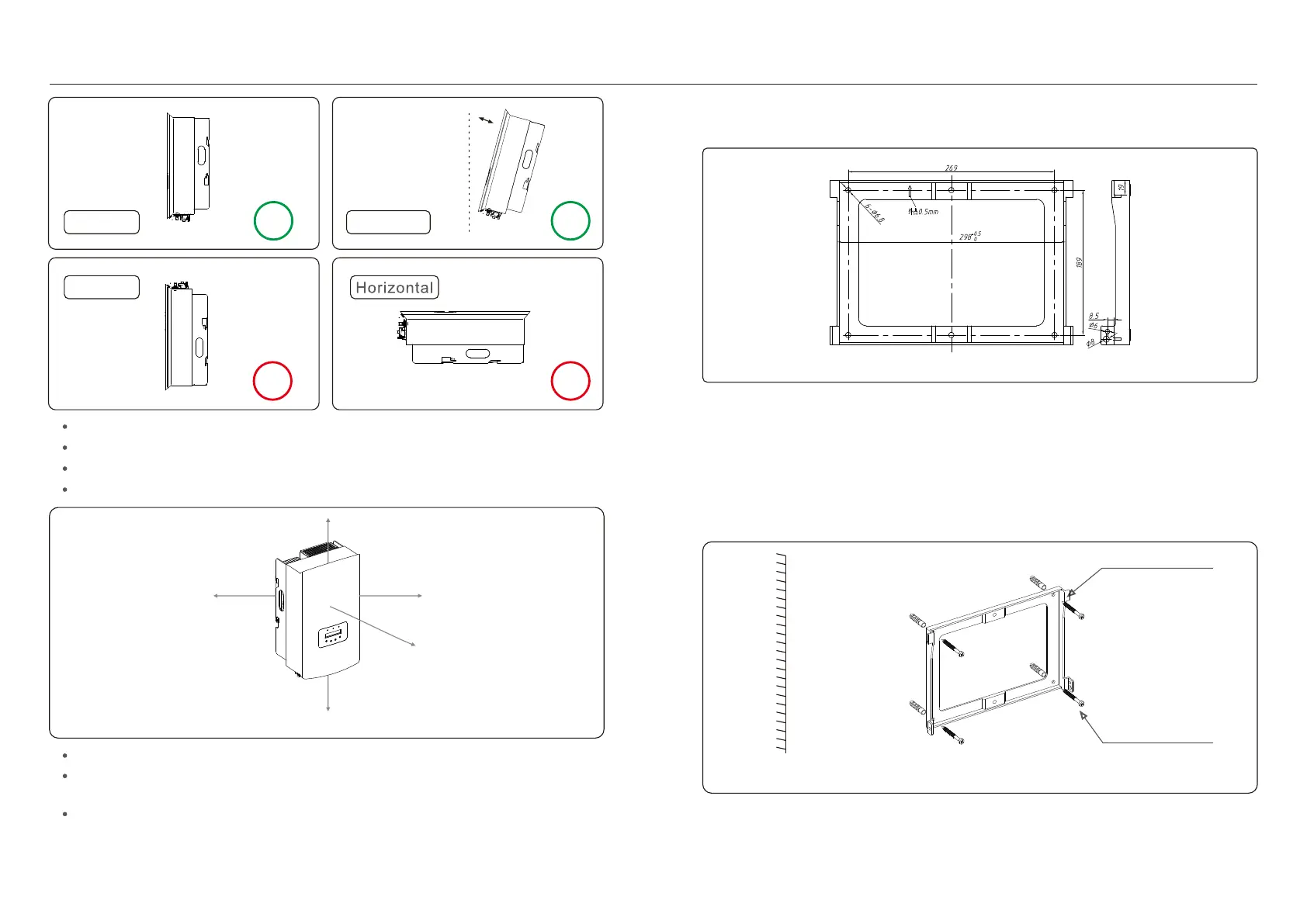

The visibility of LED status indicator lights and LCD should be considered.
Install vertically (+/- 5°) or tilted backward (<=15°).
Don't mount inverter on the tilted forward wall.
Don't mount inverter on the horizontal.
5.2 Mounting the Inverter
Dimensions of mounting bracket:
5. Installation5. Installation
Temperature of inverter heat sinker might 167℉/75℃.
Inverter is designed for working extreme environment, operation temperature range:
-15℉/25℃~149℉/65℃.
When 1 or more inverters are installed in one location, a minimum 500mm clearance should
be kept between each inverter or other object. The bottom of the inverter should be 500mm
clearance to the ground.
Figure 5.2 Inverter Mounting clearance
Figure 5.3 Inverter wall mounting
Refer to figure 5.4 and figure 5.5. Inverter shall be mounted vertically.
The steps to mount the inverter are listed below.
1. Refer to Figure 5.4, the holes for expansion bolt based on the hole diameter of bracket
(ST6.3*60 cross recessed hexagon head tapping screws, HJ0108 10*50mm fished
expandable tubular), using the percussion drilling with the 10mm drill need to stay
vertically on the wall.And the drill hole must be vertically on the wall.
And all drill holes' depth is 60mm.
Bracket
Suitable fixing screws
2. Make sure the bracket is horizontal. And the mounting holes (in Figure 5.4) are marked
correctly. Drill the holes into wall at your marks.
3. Use the suitable expansion screws to fix the bracket on the wall.
Figure 5.4 Inverter wall mounting
≤15°
VerticalBackward
√√
500mm
500mm
500mm
10
0
0
mm
500mm
