User Manual
WARNING
Due to the weight of the inverter, contusions or bone fractures
could occur when incorrectly lifting and mounting the inverter.
When mounting the inverter, take the weight of the inverter into
consideration. Use a suitable lifting technique when mounting.
3.3 Mounting the Inverter

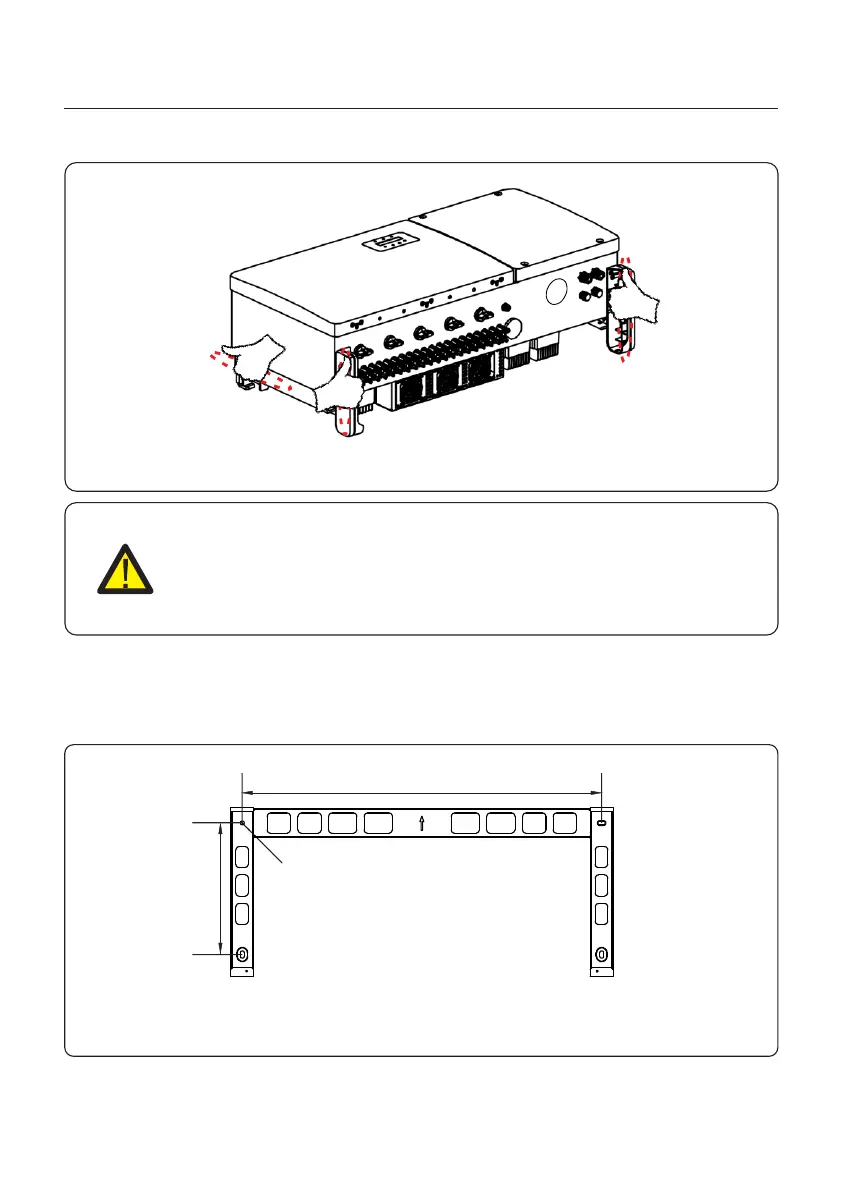

Figure 3.5 Inverter handles
The inverter can be mounted to the wall or metal array racking. The mounting holes should be
consistent with the size of the bracket or the dimensions shown in Figure 3.6.
Figure 3.6 Inverter wall mounting
Φ11mm(0.43in)
10 mm( in)08 39.7
369mm(14.5in)
3. Installation
15
