SOLIS S5 User Manual

4. Installation4. Installation

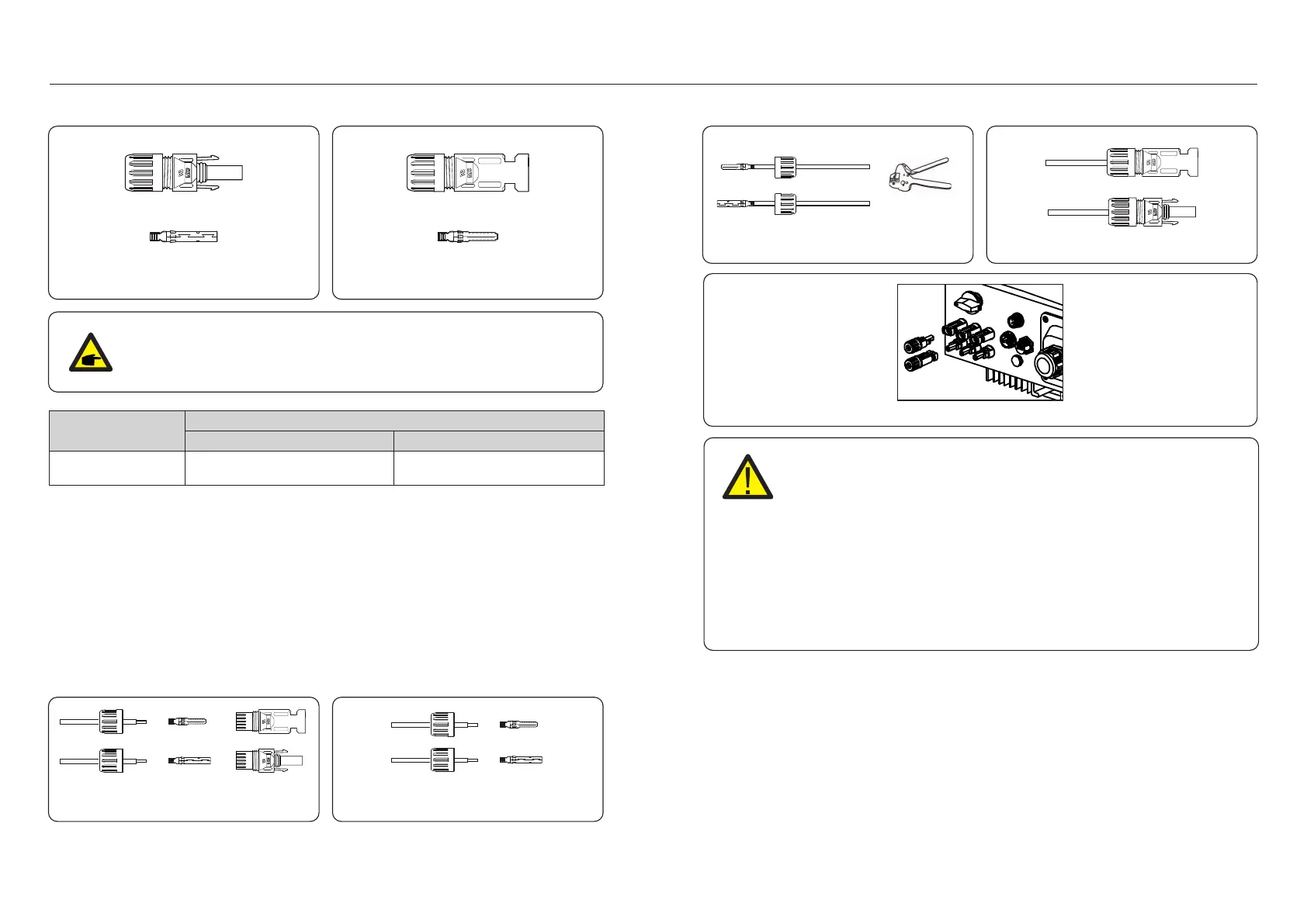

Figure 4.8 DC+ Connector Figure 4.9 DC- Connector
Please use approved DC cable for PV system.
4.0~6.0
4.0（12AWG）
（12~10AWG）
Cable type
Cross section（mm²）
Range
Industry generic PV cable
（model:PV1-F）
Recommended value
The steps to assemble the DC connectors are listed as follows:
1. Strip off the DC wire for about 7mm, Disassemble the connector cap nut. (see Figure 4.10)
3. Crimp the contact pin to the wire using a proper wire crimper. (see Figure 4.12)
2. Insert the wire into the connector cap nut and contact pin. (see Figure 4.11)
4. Insert the contact pin to the top part of the connector and screw up the cap nut to
the top part of the connector .(see figure 4.13).
Figure 4.10 Disassemble the Connector Cap nut
Figure 4.11 Insert the Wire into the
Connector Cap nut and contact pin
5. Then connect the DC connectors to the inverter. Small click will confirm connection.
(see figure 4.14)
Figure 4.12 Crimp the contact pin to the wire Figure 4.13 Connector with Cap nut Screwed on
Crimping plier
Figure 4.14 Connect the DC Connectors to the Inverter
Caution:
If DC inputs are accidently reversely connected or inverter is faulty or not
working properly, it is NOT allowed to turn off the DC switch as it will damage
the inverter and even leads to a fire disaster.
The correct actions are:
*Use a clip-on ammeter to measure the DC string current.
*If it is above 0.5A, please wait for the solar irradiance reduces until the
current decreases to below 0.5A.
*Only after the current is below 0.5A, you are allowed to turn off the DC
switches and disconnect the PV strings.
Please note that any damages due to wrong operations are not covered in
the device warranty.
.14. .15.

SOLIS S5 Specifications

General

Number of MPPTs	2
Rated Grid Frequency	50/60Hz
THDi	<3%
DC Switch	Yes
Cooling Method	Natural Convection
Frequency	50/60Hz
Operating Temperature Range	-25°C to +60°C
Rated Grid Voltage	230 V
MPPT Range	200-1000 V
Output Voltage	230 V
