4. Installation4. Installation
2-Pin Connector
Pre-made Cable in Meter Package
INV L
INV N
INV PE
Grid L
Grid N
Grid PE
L N PE
Load
L L' N N'
5 6 7 8
A B
L N PE
Load
L L' N N'
5
6 7 8
A B
Pre-made Cable
in Meter Package
2-Pin Connector
Grid L
Grid N
Grid PE
INV L
INV N
INV PE

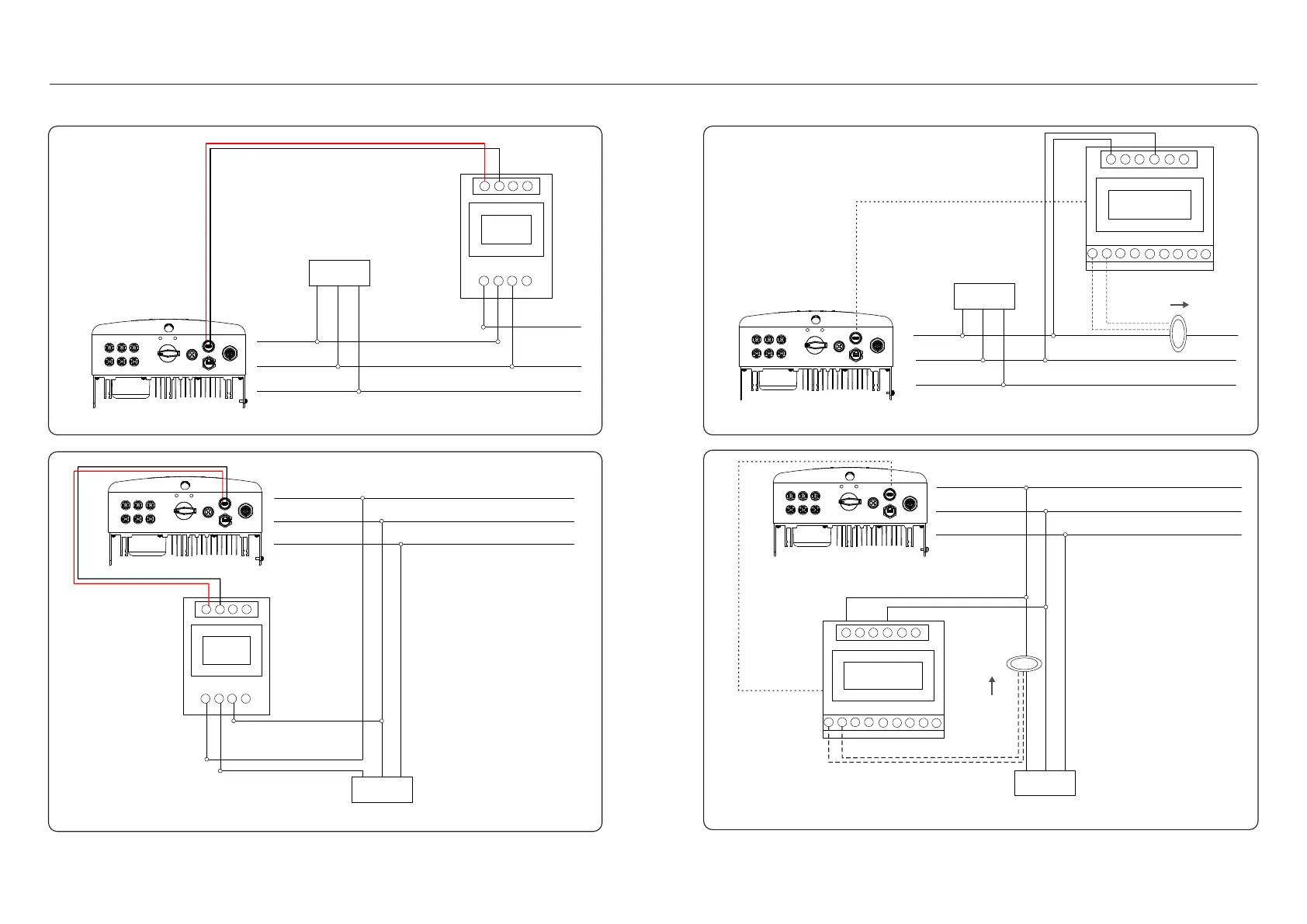

Figure 4.23 Direct Insert Type Meter - “Meter in Grid”
Figure 4.24 Direct Insert Type Meter - “Meter in Load”
Pre-made Cable
in Meter Package
RJ45 Connector
2-Pin Connector
Pre-made Cable
in Meter Package
RJ45 Connector
INV L
INV N
INV PE
Grid L
Grid N
Grid PE
White Black
+ -
L N PE
Load
5 6 7 8 9 10 21 22 23
1 2 3 4 13 12
INV L
INV N
INV PE
Grid L
Grid N
Grid PE
5 6 7 8 9 10 21 22 23
1 2 3 4 13 12
2-Pin Connector
L N PE
Load
White Black
+ -
CT Arrow
Grid
CT Arrow
Grid
Figure 4.25 External CT Type Meter - “Meter in Grid”
Figure 4.26 External CT Type Meter - “Meter in Load”
