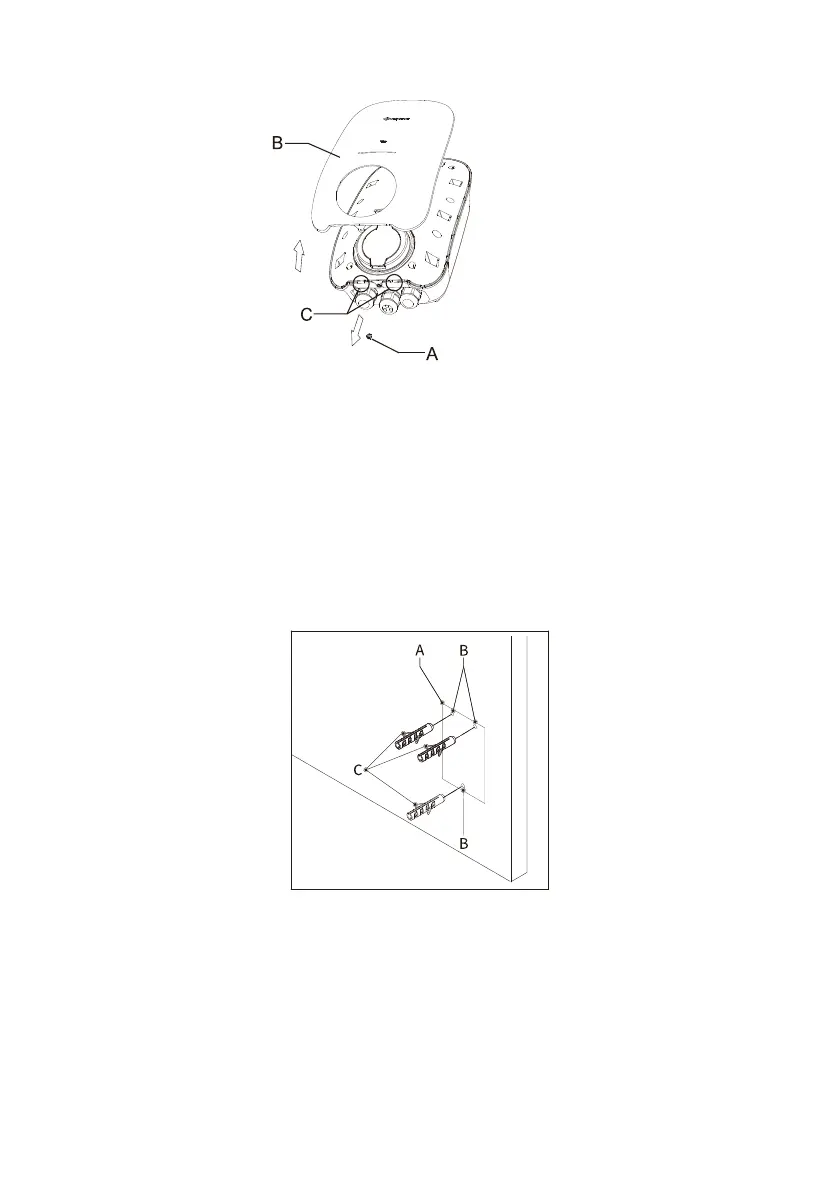

Figure 13
Drill three ø10mm holes at a depth of approximately 70mm for the
mounting screws
1. Hold the mounting template (A) against the wall and ensure that the
installation is level by using the spirit level.
2. Mark the location for three mounting holes (B).
3. Drill three mounting holes (B).
4. Insert the wall plugs (C) into the mounting holes (B).
Figure 14
