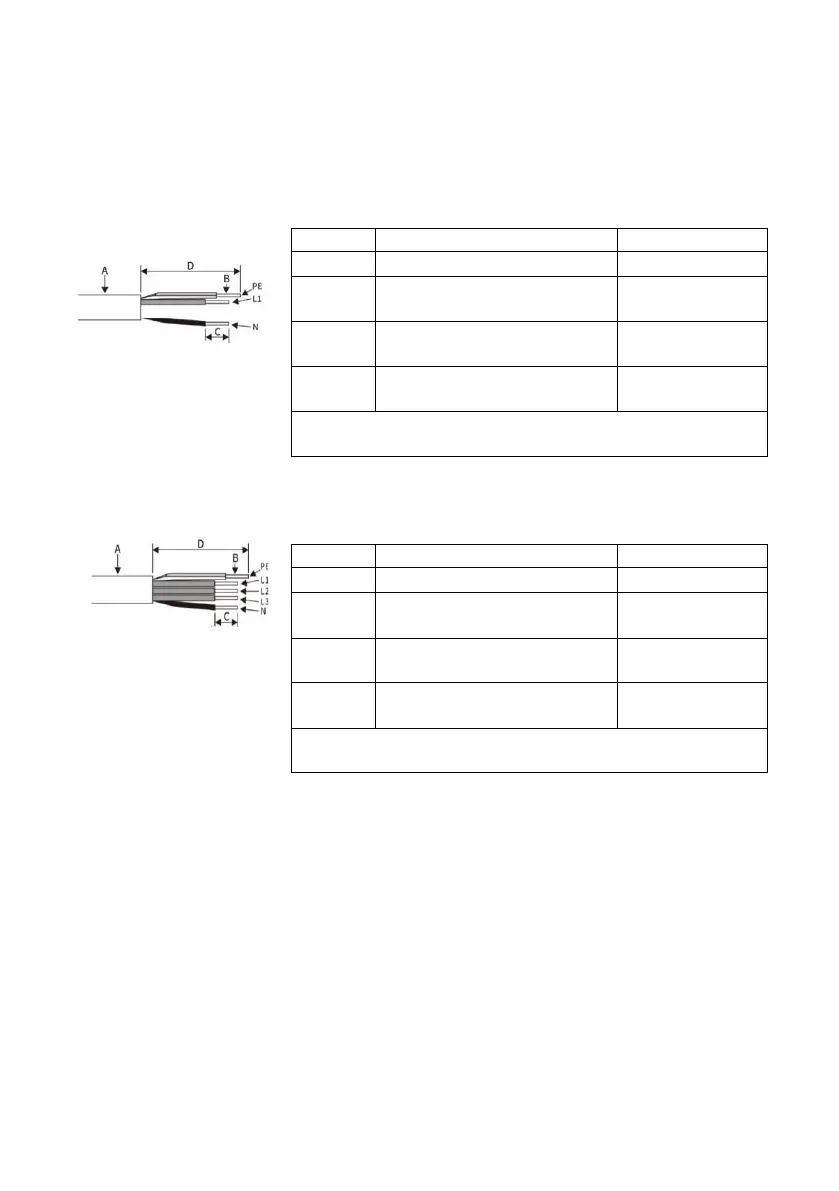

1. Strip the incoming AC supply cable as shown below, and crimp the copper
wire to the appropriate OT terminal (according to DIN 46228-4, provided
by the customer).
Sheet 8
Single phase
Three phase Sheet 9
Object
Description
Value
A
External diameter
18-21mm
B
Copper conductor cross-
section
4-16mm
2
C
Stripping length of the
insulated conductors
12mm
D
Stripping length of the
cable outer sheath
75mm
Note: the PE conductor is at least 5mm longer than
the L and N conductors.
Object
Description
Value
A
External diameter
18-21mm
B
Copper conductor cross-
section
4-16mm
2
C
Stripping length of the
insulated conductors
12mm
D
Stripping length of the
cable outer sheath
75mm
Note: the PE conductor is at least 5mm longer than
the L and N conductors.
