UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 45
Access to parts

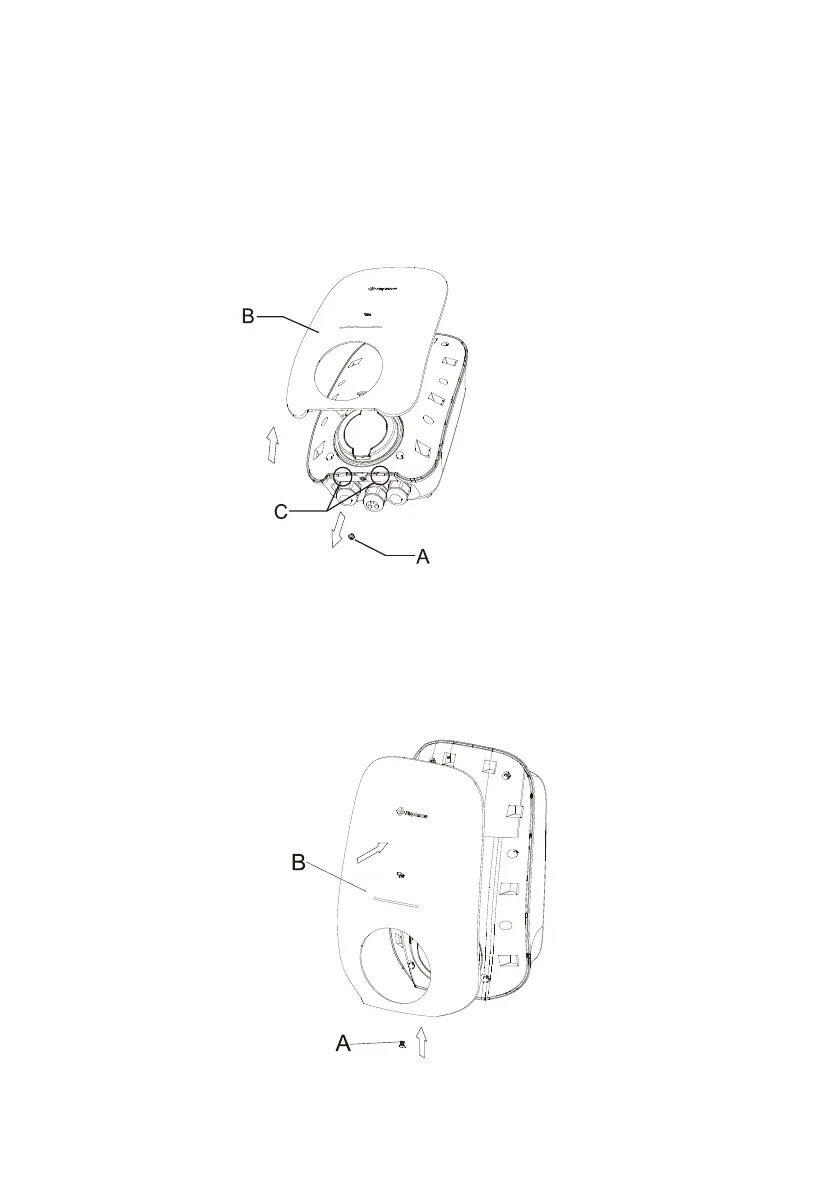

Removing the decorative cover
Removing the following parts:
Screws (A)
It is recommended to start at the bottom of the enclosure (C) when
removing the decorative cover (B).
Figure 38
Installing the decorative cover
Install the following parts:
Screw (A)
Decorative cover (B)
Figure 39
