SOLTEK SL-65EP-T - 2-5.2 JWOL1 Wake on LAN

28
65EP-T/EP+-T
GND
+5V standby
PME
This connector is connected to the LAN card with a Wake On LAN output.
The connector powers up the system when it receives a wake-up packet
or signal through the LAN card.
This feature requires that Wake On LAN feature is enabled in the “Power
Management Setup” of BIOS setting and that your system must be on
an ATX power supply with at least 720mA / +5V standby power.

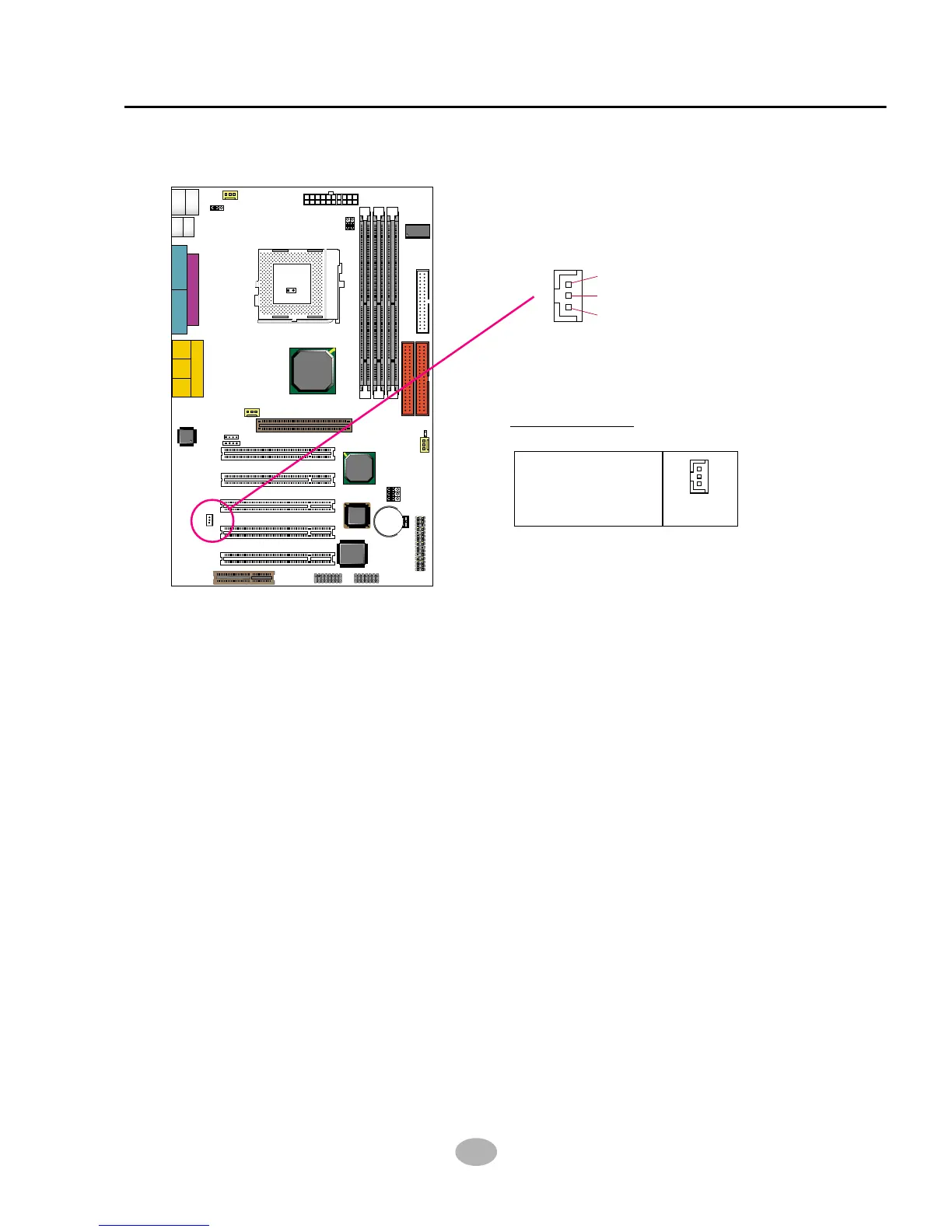

2-5.2 JWOL1 Wake On LAN
Connect the Wake
On LAN signal from
LAN card to JWOL1
JWOL1
Clock
Generator
J2 J3
SPK RST KEYLOCK T/LED
HDD/LED IR PWR SUSPEND
++
--
+
-
1 15 1 15
I/O
Controller
FWH
Intel
ICH2
SOCKET 370
LPT1
COM1COM2
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
Intel
82815EP
MCH
Li
Battery
RT1
DIMM2 DIMM1 DIMM3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
JWOL1
CD_IN1
CD_IN2
CNR1
SCR1
IDE2 IDE1
FDC1
CPUFA1
ATX POWER
AUXFA1
1 11
1 3 1 3
JP5 JP6
CHAFA1
RT2
AC'97
Codec
1 3
1 3
1 3
JBAT1
JBAT2
JP16
USB1
1
16
1 3
1 3
1 3
PS/2 MOUSE PS/2 K/B
upper lower
USB1 USB0
upper lower
1 4
1 4
1 3
JP1
AGP 4X
Wake On LAN:
