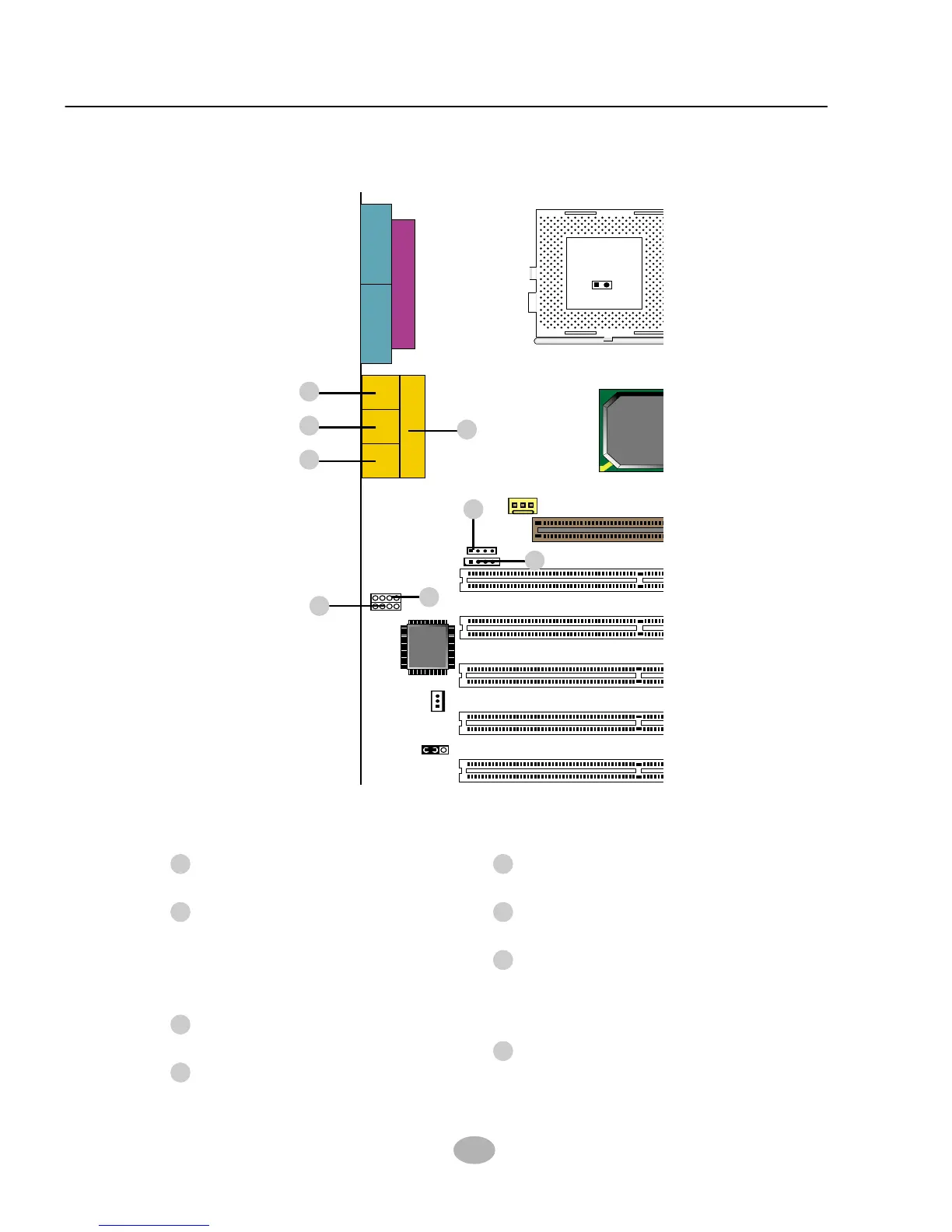

3-4.3 Identifying Connectors On The Built-in Audio
CD Audio Connector 25
CD Audio Connector 1
6
Telephone Answering Device
/ Modem Connector (65EP+-T
only)
7
TV TUNER Connector
(65EP+-T only)
8
LINE OUT First Speaker Out1
MICROPHONE IN JACK
3
GAME/MIDI Connector
4
LINE IN Rear LINE OUT
JACK (Second pair of
speakers output for 65EP+-T
only)
2
1 3
LPT1
COM1COM2
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
Intel
82815
E
MCH
CT5880
RT1
P
C
P
C
P
C
P
C
P
C
JWOL1
TAD1
TV1
CD_IN1
CD_IN2
JP21
1 3
AUXFA1
1 4
1 4
2
3
4
1
8
7
5
6
