SOLTEK SL-65KIV - 2-7.8 USB2 Header; 2-7.9 PS;2 Mouse and PS;2 Keyboard

36
65KIV/KIV2
PIN 6 : None
PIN 5 : Mouse Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Mouse Data
PS/2 MOUSE
PIN 6 : None
PIN 5 : Keyboard Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Keyboard Data
PS/2 KEYBOARD
• When plugging the USB cable into USB2 Header, users must make sure
the red wire is connected to the first pin.

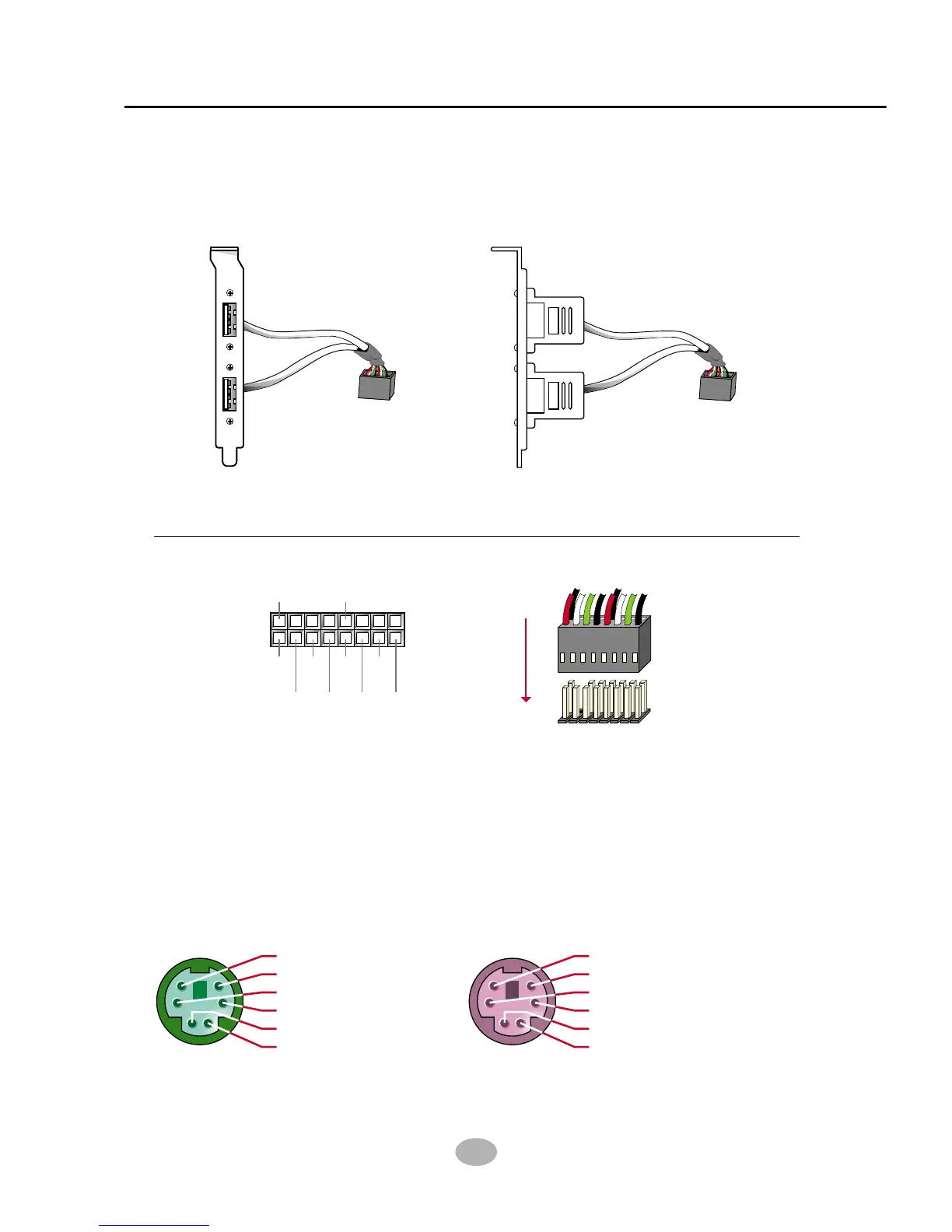

2-7.8 USB2 Header
• This header is for connecting the additional USB cable to provides you
additional two USB ports. User can order the additional USB cable from
your mainboard dealer and vender.
2-7.9 PS/2 Mouse And PS/2 Keyboard
1
16
Red
VCC
Green
DO+
Green
DO+
White
DO-
White
DO-
Black
GND
Black
GND
Red
VCC
GND
Black
GND
Black
USB2 Header
1
16
USB 2 Header
1
Additional USB Cable (Optional)
